BK652iw
VIVITEK 65in, 4K display, incl. Camera and Microphone, VKW32-i5H08, NovoConnect Stage
VIVITEK 65in, 4K display, incl. Camera and Microphone, VKW32-i5H08, NovoConnect Stage
BK652iw
Windows™ Based Collaborative Touch Panel
The Ultimate Wireless Collaboration and Conferencing Solution

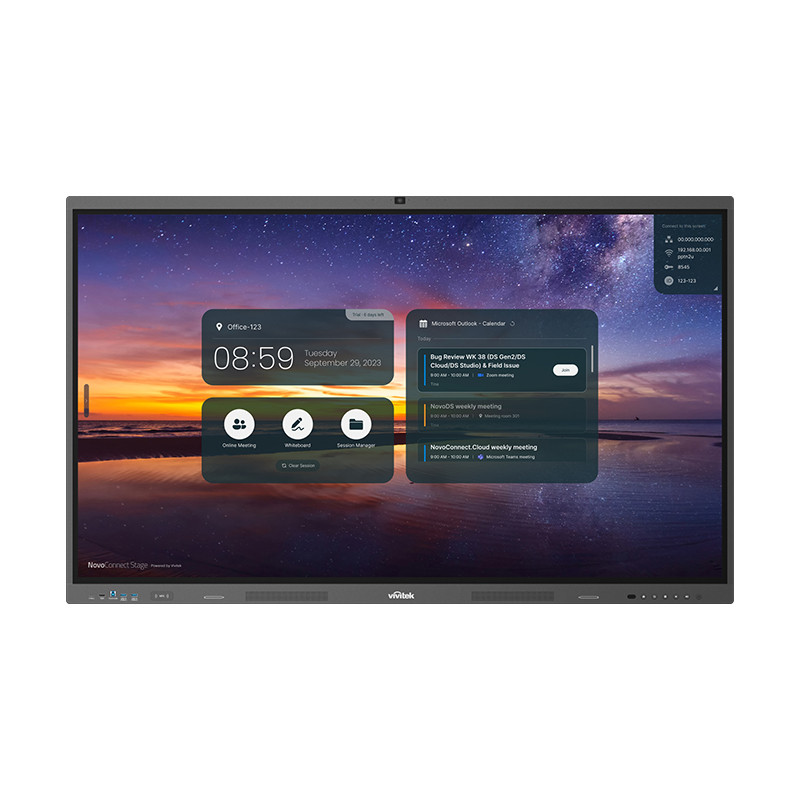

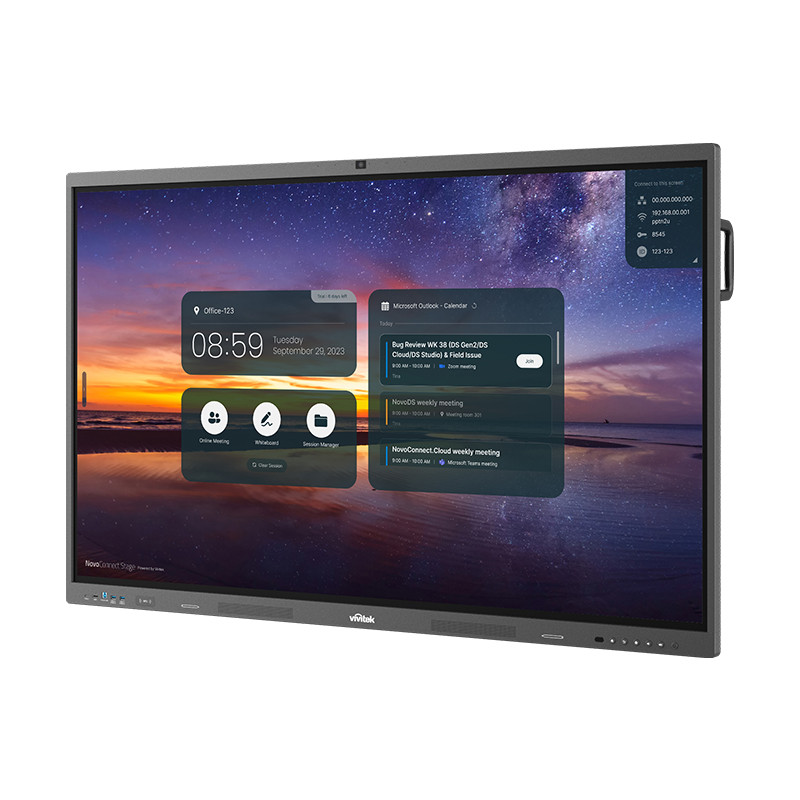

The BK652iw NovoTouch Windows™ is a wireless collaborative touch panel powered by NovoConnect Stage. It combines wireless presentation, annotation, whiteboarding, and seamless video conferencing into a single platform. Ideal for interactive presentations and both remote and in-person collaboration, it offers extensive integration capabilities, making it a comprehensive solution for modern workspaces and educational environments.
Key Features
• Windows™ Based Collaborative 4K-UHD Touch Panel.
• Connect up to 64 participants with dual-screen mirroring and seamless screen sharing via NovoConnect software or AirPlay.
• A simple-to-use and configurable interface for organizing video conferencing sessions via popular conferencing solutions.
• Real-time collaboration using whiteboard, annotation, page management and video conferencing tools.
• Session tracking & sharing via QR code, capturing whiteboard content, webpages and files.
• High-speed Wi-Fi 6 ensures faster speeds, lower latency, higher capacity, and enhance security for seamless connectivity in high-density environments.
Remote Manager Cloud - Novo Ecosystem Device Management
Vivitek’s Remote Manager Cloud is a cloud-based platform designed to provide centralized management, monitoring, and control of Vivitek’s Novo Ecosystem devices.
It allows IT administrators to remotely configure, update, and troubleshoot these devices from any location, streamlining operations and ensuring consistent performance across all devices.
Remote Manager Cloud Features
• CENTRALIZED DEVICE MANAGEMENT
provides a single, unified dashboard to monitor and manage all connected Novo devices.
• SCALABILITY
Easily scales to accommodate growing numbers of Novo devices.
• COST EFFICIENCY
Eliminates the need for expensive on-premise server management.
Specifications
Panel Size: 65”
Type/Technology: Backlit D-LED (IPS- ADS)
Brightness: 400 cd/m²
Native Resolution: 4K UHD (3840 x 2160)
Viewing Angle (H/V): 178° / 178°
Refresh Rate: 60 Hz
Estimated Life Time: 50,000 hours
Display Color (Bit): 1.07 Billion
Installation Orientation: Landscape
Daily Operation (Hours/Days): 16/7
Touch Technology: Infrared Touch: Annotation 10 Points, Finger Touch 20 Points
Touch Accuracy: Finger, Passive Pen ±1.0mm (Over 90% area)
Surface Protection: 3mm Thick Toughened Glass (Level 7H on Mohs Scale of Mineral Hardness)
Touch Tools: Finger, Stylus, Glove, Opaque Objects
Operating System: Windows™
I/O Connection Ports: HDMI-In (x4), HDMI-Out (x1), HDMI Version (2), Audio-In (3.5mm) x1, Mic-In (x1), Audio-Out (3.5mm) x1, LAN (RJ45 x2), WiFi 6; 802.11 a/b/g/n/ac/ax (2.4GHz/6GHz), RS-232 (RJ45) (1x), RS232-In (1x), SPDIF-Out (1x), USB A (V3.0 x4, V2.0 x1), USB B (x2), USB C (x1), microSD (1x), IR Receiver (1x)
Available Colors: Silver
Dimensions (W x D x H): 1484.5 x 90 x 908 mm
VESA Mounting (FPMPMI): 4 – M8 × 25mm, 600 x 400mm
Power: AC 100 – 240V, 50/60Hz (4.5A)
Enhanced Hardware Capabilities: Top-mounted Camera, 13 Megapixel, FOV: 120°, Focus length: 1~8m
Standard Accessories: HDMI Cable, USB Cable, Audio Cable, Warranty Card (by region), Remote Controller (with battery), WiFi 6 USB Module (1x), Stylus (2x), AC Power Cord, Wall Mount Kit, Documentation Kit
Optional Accessories: Remote Control P/N, Remote Control Description (Remote C), LauncherPlus (Optional), LauncherOne (Optional), OPS Package (Yes, bundled with NovoConnect Stage), Wall Mount Kit, Stylus (2x)
Warranty: Flat Panel Standard Warranty: 3 Years (panel only, accessories excluded i.e. OPS); Flat Panel Education Warranty: 5 Years (registration required, panel only, accessories excluded i.e. OPS)
BK652iw
Windows™ Based Collaborative Touch Panel
The Ultimate Wireless Collaboration and Conferencing Solution
The BK652iw NovoTouch Windows™ is a wireless collaborative touch panel powered by NovoConnect Stage. It combines wireless presentation, annotation, whiteboarding, and seamless video conferencing into a single platform. Ideal for interactive presentations and both remote and in-person collaboration, it offers extensive integration capabilities, making it a comprehensive solution for modern workspaces and educational environments.
Key Features
• Windows™ Based Collaborative 4K-UHD Touch Panel.
• Connect up to 64 participants with dual-screen mirroring and seamless screen sharing via NovoConnect software or AirPlay.
• A simple-to-use and configurable interface for organizing video conferencing sessions via popular conferencing solutions.
• Real-time collaboration using whiteboard, annotation, page management and video conferencing tools.
• Session tracking & sharing via QR code, capturing whiteboard content, webpages and files.
• High-speed Wi-Fi 6 ensures faster speeds, lower latency, higher capacity, and enhance security for seamless connectivity in high-density environments.
Remote Manager Cloud - Novo Ecosystem Device Management
Vivitek’s Remote Manager Cloud is a cloud-based platform designed to provide centralized management, monitoring, and control of Vivitek’s Novo Ecosystem devices.
It allows IT administrators to remotely configure, update, and troubleshoot these devices from any location, streamlining operations and ensuring consistent performance across all devices.
Remote Manager Cloud Features
• CENTRALIZED DEVICE MANAGEMENT
provides a single, unified dashboard to monitor and manage all connected Novo devices.
• SCALABILITY
Easily scales to accommodate growing numbers of Novo devices.
• COST EFFICIENCY
Eliminates the need for expensive on-premise server management.
Specifications
Panel Size: 65”
Type/Technology: Backlit D-LED (IPS- ADS)
Brightness: 400 cd/m²
Native Resolution: 4K UHD (3840 x 2160)
Viewing Angle (H/V): 178° / 178°
Refresh Rate: 60 Hz
Estimated Life Time: 50,000 hours
Display Color (Bit): 1.07 Billion
Installation Orientation: Landscape
Daily Operation (Hours/Days): 16/7
Touch Technology: Infrared Touch: Annotation 10 Points, Finger Touch 20 Points
Touch Accuracy: Finger, Passive Pen ±1.0mm (Over 90% area)
Surface Protection: 3mm Thick Toughened Glass (Level 7H on Mohs Scale of Mineral Hardness)
Touch Tools: Finger, Stylus, Glove, Opaque Objects
Operating System: Windows™
I/O Connection Ports: HDMI-In (x4), HDMI-Out (x1), HDMI Version (2), Audio-In (3.5mm) x1, Mic-In (x1), Audio-Out (3.5mm) x1, LAN (RJ45 x2), WiFi 6; 802.11 a/b/g/n/ac/ax (2.4GHz/6GHz), RS-232 (RJ45) (1x), RS232-In (1x), SPDIF-Out (1x), USB A (V3.0 x4, V2.0 x1), USB B (x2), USB C (x1), microSD (1x), IR Receiver (1x)
Available Colors: Silver
Dimensions (W x D x H): 1484.5 x 90 x 908 mm
VESA Mounting (FPMPMI): 4 – M8 × 25mm, 600 x 400mm
Power: AC 100 – 240V, 50/60Hz (4.5A)
Enhanced Hardware Capabilities: Top-mounted Camera, 13 Megapixel, FOV: 120°, Focus length: 1~8m
Standard Accessories: HDMI Cable, USB Cable, Audio Cable, Warranty Card (by region), Remote Controller (with battery), WiFi 6 USB Module (1x), Stylus (2x), AC Power Cord, Wall Mount Kit, Documentation Kit
Optional Accessories: Remote Control P/N, Remote Control Description (Remote C), LauncherPlus (Optional), LauncherOne (Optional), OPS Package (Yes, bundled with NovoConnect Stage), Wall Mount Kit, Stylus (2x)
Warranty: Flat Panel Standard Warranty: 3 Years (panel only, accessories excluded i.e. OPS); Flat Panel Education Warranty: 5 Years (registration required, panel only, accessories excluded i.e. OPS)
