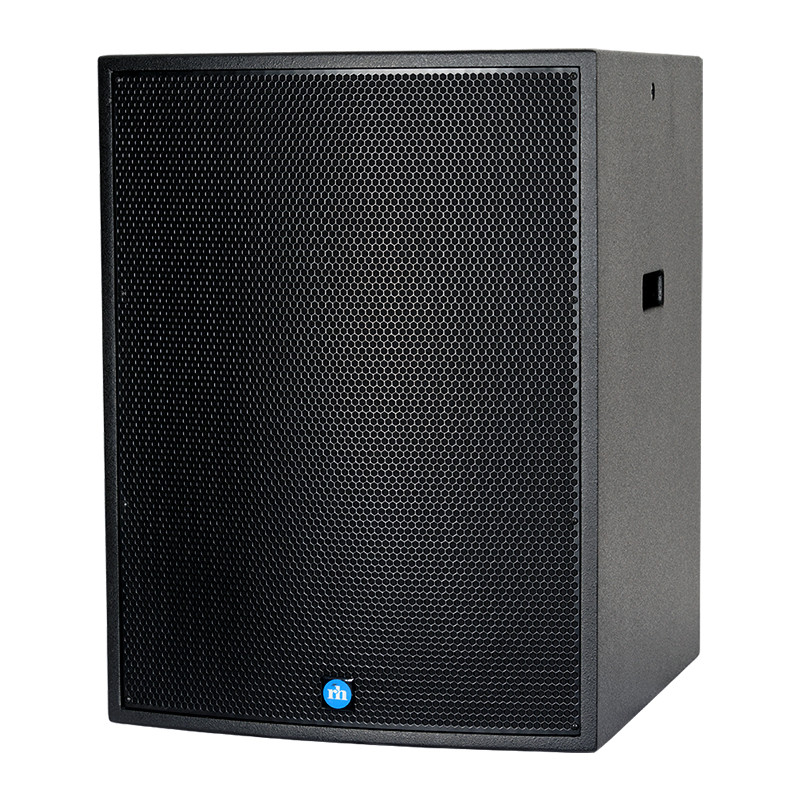

RH - TX118S 18" Subwoofer
TX/TA118S
18 inch High-Performance Subwoofer
T118S subwoofers were developed as companion pieces to full range T Series loudspeakers. They provide the high impact sub bass energy needed in many venues.
T118S
18-inch High Performance Subwoofer
Sound that makes performances and audiences truly come alive doesn’t come easy. But T Series loudspeakers put the power of unique Renkus-Heinz developments like Complex Conic horns to work for you. Versatile enclosure designs, go-anywhere hardware and rugged construction help solve your sound reinforcement challenges easily and quickly.
T118S subwoofers were developed as companion pieces to full range C series loudspeakers. They provide the high impact sub bass energy needed in many venues.
TA118S Powered Loudspeakers
Equipped with SA1250 Series Amplification
TX118S Non-Powered Loudspeakers
For use with external amplification
Key Features
• Powerful 18-inch Subwoofers
Outstanding 35 Hz to 100 Hz, 137 dB peak SPL sub-bass performance.
• High Performance, High Power Woofers
With 4-inch voice coils, rigid cast-alloy frames and long throw magnetic structures easily handle 900 Watts of program power.
• Built-In Lo-Pass Filter
Eliminates the need for an external electronic crossover.
If you need an outstanding high-power 18-inch subwoofer, order the T118S.
Applications
• Virtually any application where high-output, low frequency content is required
Permanent Installations
• High quality music/speech systems and surround systems for houses of worship, schools, performing art centers, night clubs, etc.
Portable Applications
• Live music reinforcement, DJ systems, houses of worship, schools, etc.
Specification
Technical Information
Sensitivity: TX118S — 98 dB (1W/1m)
Max SPL: TX118S — 131 dB, peak, half space
TA118S-A — 129 dB, peak, half space
TA118S-RN — 129 dB, peak, half space
TA118S-RD — 129 dB, peak, half space
Freq. Response:
TX118S — 35 Hz to 100 Hz
TA118S-A — 35 Hz to 100 Hz
TA118S-RN — 35 Hz to 100 Hz
TA118S-RD — 35 Hz to 100 Hz
LF Drivers:
TX118S — SSL18-10, 450 W RMS @ 8 Ohms, 900 W Pgm
TA118S-A — SSL18-10, 450 W RMS @ 8 Ohms, 900 W Pgm
TA118S-RN — SSL18-10, 450 W RMS @ 8 Ohms, 900 W Pgm
TA118S-RD — SSL18-10, 450 W RMS @ 8 Ohms, 900 W Pgm
Power Handling:
TX118S — 450 W AES @ 8 Ohms, 900 W Pgm @ 8 Ohms
TA118S-A — See SA1250 Amplifier
TA118S-RN — See SA1250 Amplifier
TA118S-RD — See SA1250 Amplifier
Connectors:
TX118S — Screw terminals & looping Neutrik 4-pin SpeakOn style connectors
TA118S-A — See SA1250 Amplifier
TA118S-RN — See SA1250 Amplifier
TA118S-RD — See SA1250 Amplifier
Enclosure:
TX118S — 19 mm Lite Ply, perforated metal grille
TA118S-A — 19 mm Lite Ply, perforated metal grille
TA118S-RN — 19 mm Lite Ply, perforated metal grille
TA118S-RD — 19 mm Lite Ply, perforated metal grille
Hardware:
TX118S — 12 x M10 UMH Points, 35 mm Pole Socket
TA118S-A — 12 x M10 UMH Points, 35 mm Pole Socket
TA118S-RN — 12 x M10 UMH Points, 35 mm Pole Socket
TA118S-RD — 12 x M10 UMH Points, 35 mm Pole Socket
Finish:
TX118S — Black or White Paint, standard. Custom Color, Weather Resistant, optional.
TA118S-A — Black or White Paint, standard. Custom Color, Weather Resistant, optional.
TA118S-RN — Black or White Paint, standard. Custom Color, Weather Resistant, optional.
TA118S-RD — Black or White Paint, standard. Custom Color, Weather Resistant, optional.
Dimensions:
TX118S — 22-1/4″ w x 29-3/8″ h x 23-1/2″ d, 565 mm w x 746 mm h x 597 mm d
TA118S-A — 22-1/4″ w x 29-3/8″ h x 23-1/2″ d, 565 mm w x 746 mm h x 597 mm d
TA118S-RN — 22-1/4″ w x 29-3/8″ h x 23-1/2″ d, 565 mm w x 746 mm h x 597 mm d
TA118S-RD — 22-1/4″ w x 29-3/8″ h x 23-1/2″ d, 565 mm w x 746 mm h x 597 mm d
Weight:
TX118S — 88 lbs. / 39.9 kg, net
TA118S-A — 88 lbs. / 39.9 kg, net
TA118S-RN — 88 lbs. / 39.9 kg, net
TA118S-RD — 88 lbs. / 39.9 kg, net
SA1250 Amplifier Specifications
Audio Connections:
TA118S-A
2 x XLR-3, In & Loop-out, Analog
TA118S-RN
2 x XLR-3, In & Loop-out, Analog and AES
TA118S-RD
2 x XLR-3, In & Loop-out, Analog and AES
2 x RJ45 Dante Primary & Secondary Ethernet
Network Connections:
TA118S-RN
2 x RJ45, Looping Ethernet/RHAON
TA118S-RD
2 x RJ45 Dante Primary & Secondary Ethernet/RHAON (Note: Dante and RHAON share a single or redundant Ethernet network.)
Maximum Input Level:
TA118S-A — +22 dBu, Analog
TA118S-RN — +22 dBu, Analog; 0 dBFS digital
TA118S-RD — +22 dBu, Analog; 0 dBFS digital
User DSP:
TA118S-RN — Eight fully parametric filters, high and low shelf, high and low pass filters, delay to 340 ms.
TA118S-RD — Eight fully parametric filters, high and low shelf, high and low pass filters, delay to 340 ms.
Software:
TA118S-RN — RHAON II
TA118S-RD — RHAON II
Latency:
TA118S-A — 6.25 ms
TA118S-RN — 6.25 ms
TA118S-RD — 6.25 ms + Dante transport latency
Power Output:
TA118S-A — LF= 1000 watts, @ 8 ohms. Multi-band peak and thermal limiting on all channels protects the drivers.
TA118S-RN — LF= 1000 watts, @ 8 ohms. Multi-band peak and thermal limiting on all channels protects the drivers.
TA118S-RD — LF= 1000 watts, @ 8 ohms. Multi-band peak and thermal limiting on all channels protects the drivers.
Mains Voltage:
TA118S-A — 100-240 volts, 50/60 Hz auto-switching
TA118S-RN — 100-240 volts, 50/60 Hz auto-switching
TA118S-RD — 100-240 volts, 50/60 Hz auto-switching
Power Consumption:
TA118S-A — Idle: 300 mW. 1/8 power: 240 W (onset of limiting) 1/3 power: 550 W (hard limiting)
TA118S-RN — Idle: 300 mW. 1/8 power: 240 W (onset of limiting) 1/3 power: 550 W (hard limiting)
TA118S-RD — Idle: 300 mW. 1/8 power: 240 W (onset of limiting) 1/3 power: 550 W (hard limiting)
Power Connector:
TA118S-A — Neutrik powerCON TRUE-1
TA118S-RN — Neutrik powerCON TRUE-1
TA118S-RD — Neutrik powerCON TRUE-1
Temprature Limits:
TA118S-A — Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
TA118S-RN — Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
TA118S-RD — Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
