RH - VX101-7/6 Non-Powered, requires bi-amplification, 60° waveguide
VA/VX101-7

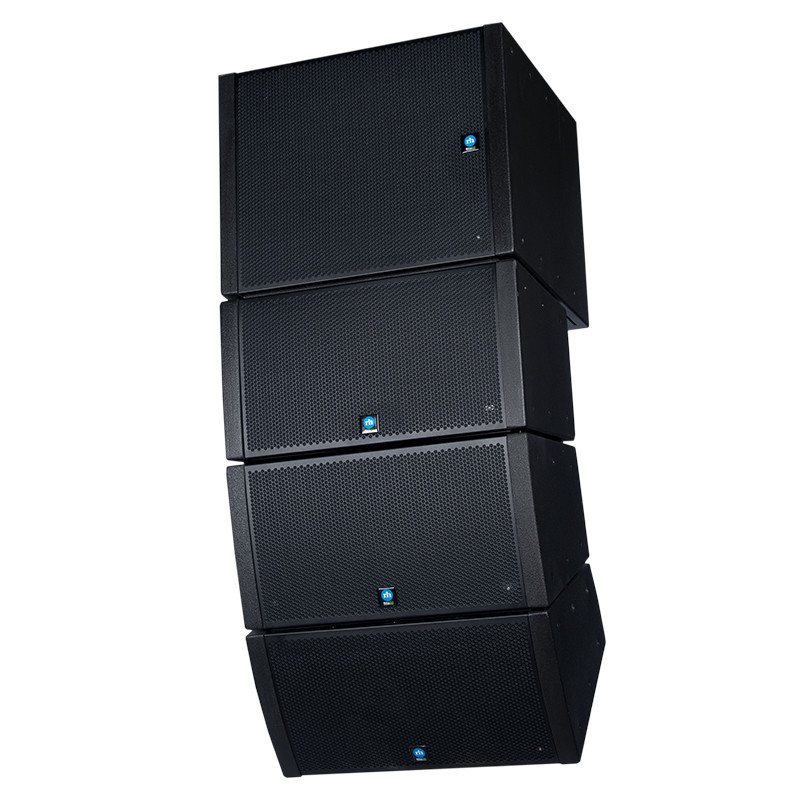

Modular Point Source Line Array
VARIA’s fully modular design enables cabinets to be easily configured as flown vertical arrays, powerful horizontal arrays, or ground stacked systems. With a range of vertical and horizontal dispersion angles and Renkus-Heinz’s unique Transitional WaveGuides, VARIA’s highly configurable enclosures and ingenious hardware make it easy to custom design an array for every application.
VA/VX101-7

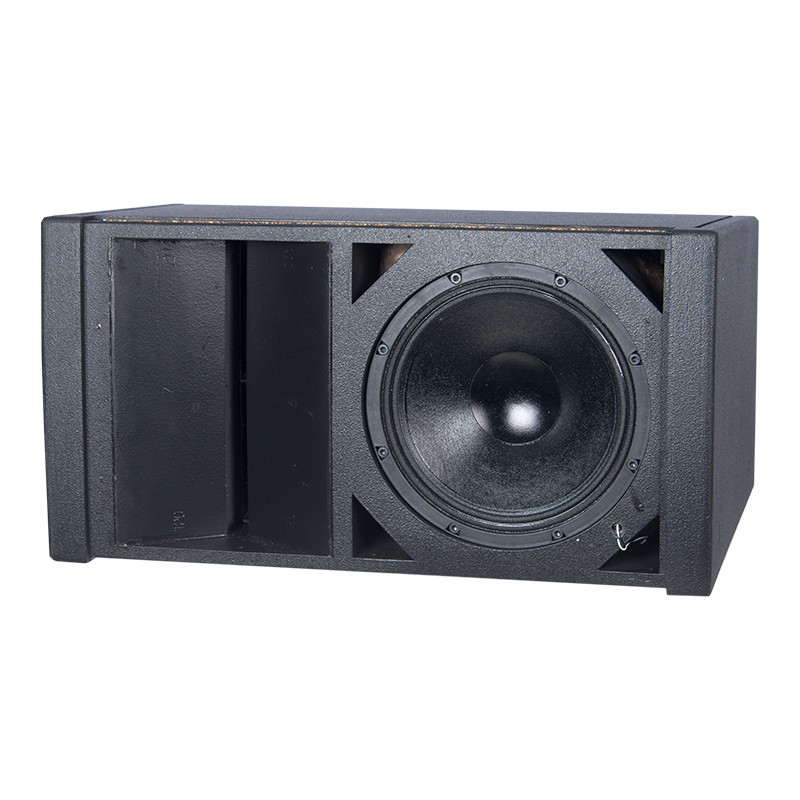

VARIA101 Array Modules are built around a high power 10″ Low Frequency woofer coupled with either one or two neodymium High Frequency Compression Drivers. These audiophile quality components coupled with Renkus-Heinz unique Tuned Conic Diverter WaveGuide, ensure the optimum sound quality and arrayability.
7.5º VARIA cabinets employ concealed flying hardware to hang and array like traditional line arrays, 15º and 22.5º cabinets are fixed curvature and must be tight pack arrayed.
VA101 cabinets are self-powered with integral SA1250 amp modules. Amplifier options include RHAON II Empowered and RHAON II with Dante versions. VX101 enclosures require external bi-amplification and DSP processing.
The VA101-7 is designed using a single 10-inch Low Frequency Woofer and two 1-inch High Frequency Compression Drivers. Available in 60º, 90º, and 120º standard configurations, as well as with 60º/90º and 90/120º transitional WaveGuide options. The VA101-7 is arrayable from 0º to 7.5º in 1.5º steps.
The VX101-7 is the externally powered, bi-amplified version of the same system.
VARIA Series
VARIA comes from variable. Featuring a fully modular design, these ultra-versatile, high-performance arrays have been engineered to be the most flexible arrays on the market.
Depending on a venue’s needs, VARIA can be a line array, constant curvature array, or horizontal point-source cluster. With a range of vertical and horizontal dispersion angles and Renkus-Heinz’s unique Transitional WaveGuides, VARIA enables sound system designers to custom-craft the perfect coverage pattern for any venue – no matter the shape, size or acoustic challenges.
VARIA Modular Installation Array Systems are designed to be the most flexible and versatile loudspeakers available. Highly configurable enclosures and ingenuous hardware make it easy to tailor each speaker to every application.
Integrating only the highest quality components, VARIA employs powerful low-frequency woofers and lightweight neodymium Compression Drivers, all coupled to the most advanced cabinet and waveguide designs. The result is a system that delivers the sound and performance you’ve come to expect from Renkus-Heinz.
Technical Information
Sensitivity:
VX101-7/x: LF 98dB (1W/1m), HF 113dB (1W/1m)
VA101-7/x-RN: 1.4V for RPO
VA101-7/x-RD: 1.4V for RPO
Freq. Response:
All Models: 80Hz to 18kHz (+/- 3dB)
Max SPL:
VX101-7/x: 128 dB (peak, whole space), 137 dB (peak, 4 or more loudspeakers)
VA101-7/x-RN: 128 dB (peak, whole space), 137 dB (peak, 4 or more loudspeakers)
VA101-7/x-RD: 128 dB (peak, whole space), 137 dB (peak, 4 or more loudspeakers)
Vert. Coverage:
VX101-7/x: 7.5° (15° and 22.5° variants available)
VA101-7/x-RN: 7.5° (15° and 22.5° variants available)
VA101-7/x-RD: 7.5° (15° and 22.5° variants available)
Horiz. Coverage:
VX101-7/x: Model: 101-7/6 60°, Model: 101-7/9 90°, Model:101-7/12 120°
VA101-7/x-RN: Model: 101-7/6 60°, Model: 101-7/9 90°, Model:101-7/12 120°
VA101-7/x-RD: Model: 101-7/6 60°, Model: 101-7/9 90°, Model:101-7/12 120°
Power Rating:
VX101-7/x: LF 250 W AES, 500 W PGM @ 8 ohms. HF 80 W AES, 150 W PGM @ 4 ohms.
VA101-7/x-RN: See SA1250 Internal Power Amplifier Specifications
VA101-7/x-RD: See SA1250 Internal Power Amplifier Specifications
Transducers:
VX101-7/x: LF 10″ Woofer SSL10-7, HF 2x 1″ exit, 1.75″ VC, Compression Drivers SSD1730-8
VA101-7/x-RN: LF 10″ Woofer SSL10-7, HF 2x 1″ exit, 1.75″ VC, Compression Drivers SSD1730-8
VA101-7/x-RD: LF 10″ Woofer SSL10-7, HF 2x 1″ exit, 1.75″ VC, Compression Drivers SSD1730-8
Connectors:
VX101-7/x: 2x NL4 Speakon (looping) LF 1+/1- HF 2+/2-, Barrier Strip
VA101-7/x-RN: See SA1250 Internal Power Amplifier Specifications
VA101-7/x-RD: See SA1250 Internal Power Amplifier Specifications
Options:
VX101-7/x: WR Weather Resistant Treatment
VA101-7/x-RN: WR Weather Resistant Treatment
VA101-7/x-RD: WR Weather Resistant Treatment
Enclosure:
VX101-7/x: 3/4″ (19 mm) Multiply Birch Construction. Perforated metal grille.
VA101-7/x-RN: 3/4″ (19 mm) Multiply Birch Construction. Perforated metal grille.
VA101-7/x-RD: 3/4″ (19 mm) Multiply Birch Construction. Perforated metal grille.
Finish:
VX101-7/x: Black or White Paint as Standard. Custom Color Paint available as cost option.
VA101-7/x-RN: Black or White Paint as Standard. Custom Color Paint available as cost option.
VA101-7/x-RD: Black or White Paint as Standard. Custom Color Paint available as cost option.
Dimensions:
VX101-7/x: 24″ W x 12-3/4″ H x 17″ D, 610 mm W x 324 mm H x 432 mm D
VA101-7/x-RN: 24″ W x 12-3/4″ H x 17″ D, 610 mm W x 324 mm H x 432 mm D
VA101-7/x-RD: 24″ W x 12-3/4″ H x 17″ D, 610 mm W x 324 mm H x 432 mm D
Weight:
VX101-7/x: 58 Lbs (26 kg) Net without MPS rigging connector, 64 Lbs (29 kg) Net with MPS rigging connector
VA101-7/x-RN: 58 Lbs (26 kg) Net without MPS rigging connector, 64 Lbs (29 kg) Net with MPS rigging connector
VA101-7/x-RD: 58 Lbs (26 kg) Net without MPS rigging connector, 64 Lbs (29 kg) Net with MPS rigging connector
SA 1250 Amplifier Specifications
Audio Connections:
VA101-7/x-RN: 2 x XLR-3, In & Loop-out, Analog and AES
VA101-7/x-RD: 2 x XLR-3, In & Loop-out, Analog and AES, 2 x RJ45 Dante Primary & Secondary Ethernet
Max Input Level:
VA101-7/x-RN: +22 dBu, Analog, 0 dBFS digital
VA101-7/x-RD: +22 dBu, Analog, 0 dBFS digital
Network Connections:
VA101-7/x-RN: 2 x RJ45, Looping Ethernet/RHAON
VA101-7/x-RD: 2 x RJ45 Dante Primary & Secondary Ethernet/RHAON (Note: Dante and RHAON share a single or redundant Ethernet network.)
User DSP:
VA101-7/x-RN: Eight fully parametric filters, high and low shelf, high and low pass filters, delay to 340 ms.
VA101-7/x-RD: Eight fully parametric filters, high and low shelf, high and low pass filters, delay to 340 ms.
Software:
VA101-7/x-RN: RHAON II
VA101-7/x-RD: RHAON II
Power Output:
VA101-7/x-RN: LF= 1000 watts, @ 8 ohms / HF = 250 watts @ 8 ohms. Multi-band peak and thermal limiting on both channels protects the drivers.
VA101-7/x-RD: LF= 1000 watts, @ 8 ohms / HF = 250 watts @ 8 ohms. Multi-band peak and thermal limiting on both channels protects the drivers.
Mains Voltage:
VA101-7/x-RN: 100-240 volts, 50/60 Hz auto-switching
VA101-7/x-RD: 100-240 volts, 50/60 Hz auto-switching
Power Consumption:
VA101-7/x-RN: Idle: 200 mW. 1/8 power: 240 W (onset of limiting) 1/3 power: 550 W (hard limiting)
VA101-7/x-RD: Idle: 200 mW. 1/8 power: 240 W (onset of limiting) 1/3 power: 550 W (hard limiting)
Power Connector:
VA101-7/x-RN: Neutrik powerCON TRUE-1
VA101-7/x-RD: Neutrik powerCON TRUE-1
Temperature Limits:
VA101-7/x-RN: Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
VA101-7/x-RD: Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
Latency:
VA101-7/x-RN: 6.25 ms
VA101-7/x-RD: 6.25 ms Analog & AES, 6.25 ms + Dante transport latency
