DU8053Z
VIVITEK Projektor, WUXGA, 14000 ANSI lumen, laser, 3,000,000:1, throw ratio: 8 opt. Lens, svart
VIVITEK Projektor, WUXGA, 14000 ANSI lumen, laser, 3,000,000:1, throw ratio: 8 opt. Lens, svart
DU8053Z

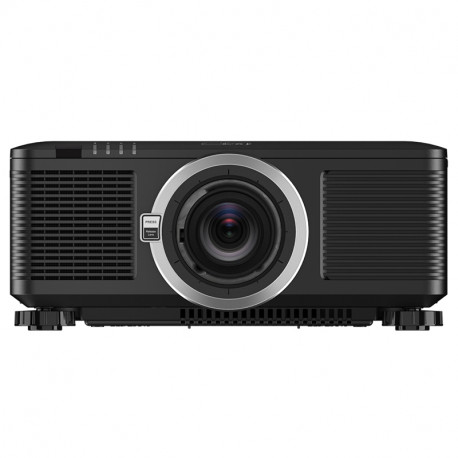

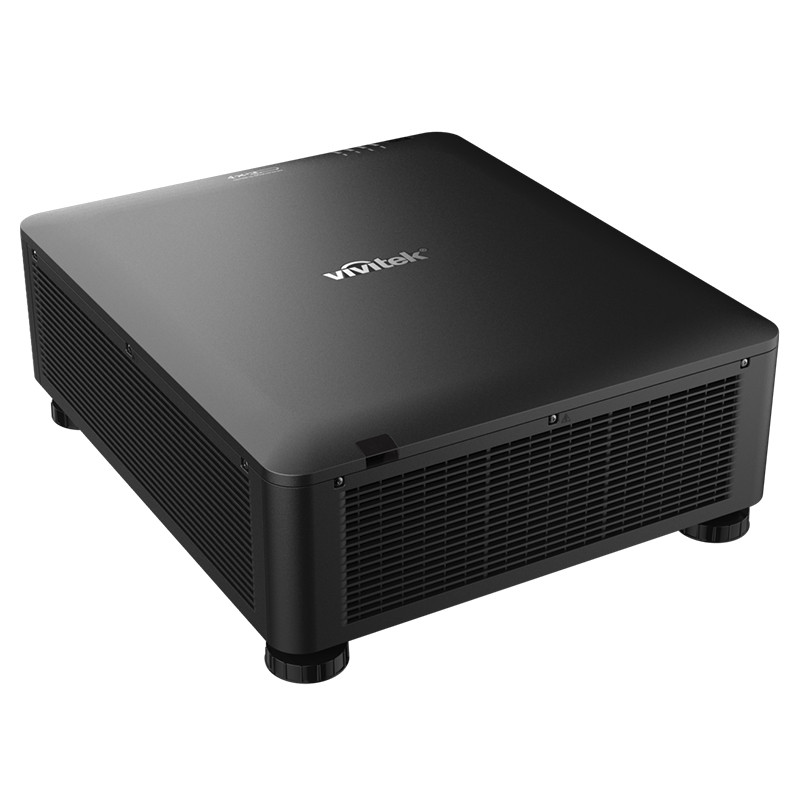

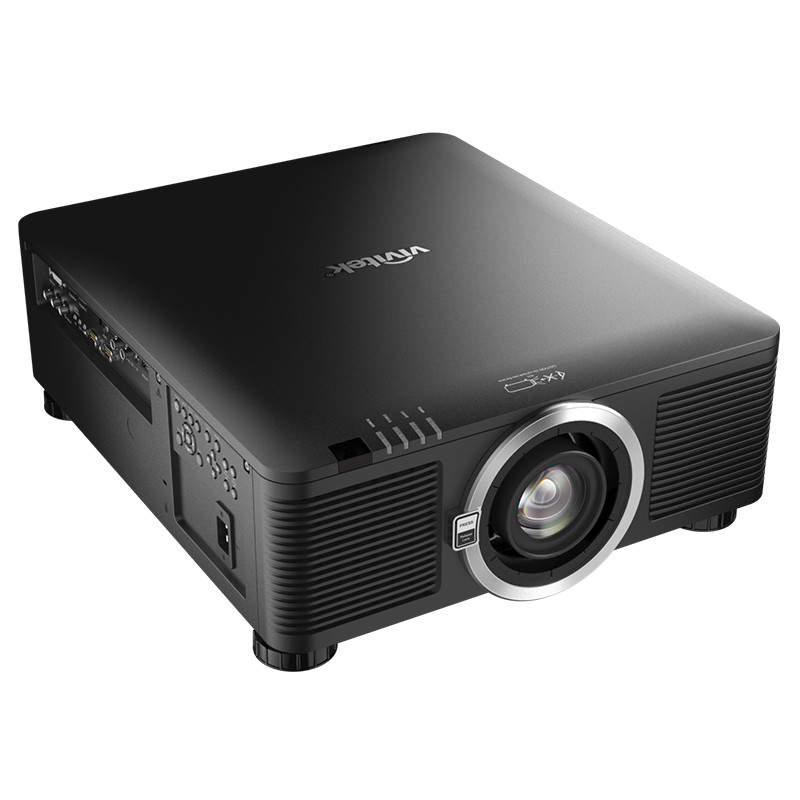

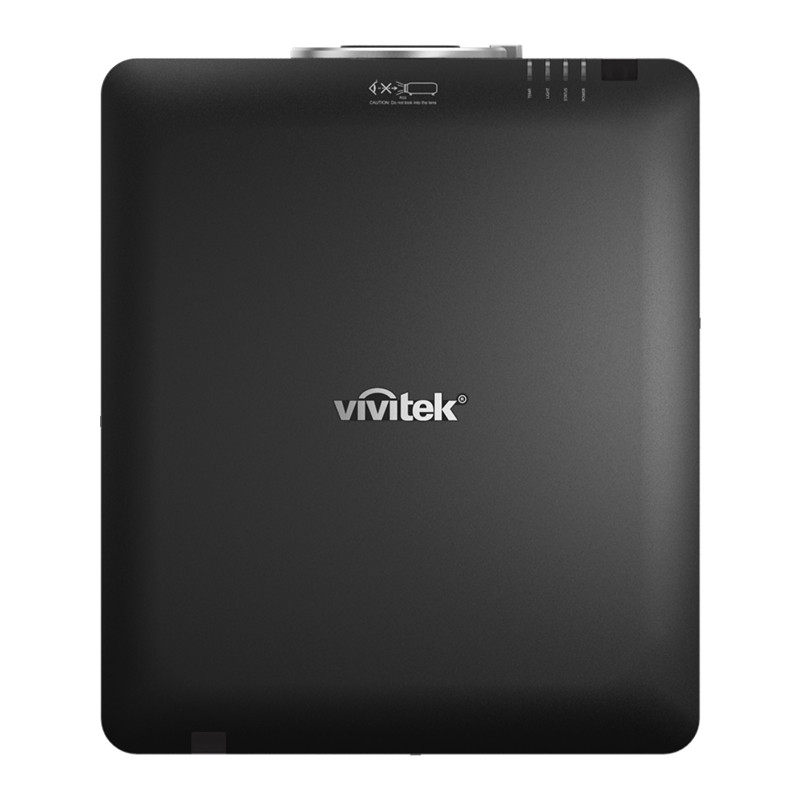

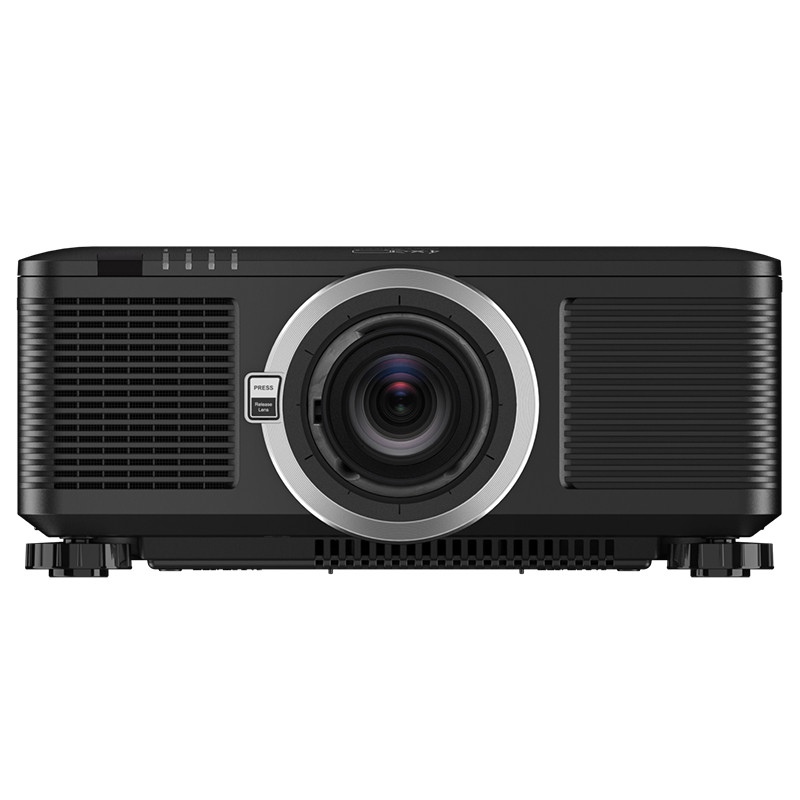

DLP HEP Large Venue Laser Projector
The Vivitek DU8053Z is a next-generation platform that redefines the capabilities of large venue projection. With HEP DMD, dual-laser technology and industry-leading features, it delivers brilliant visuals, flexible installation, and operational excellence, making it the go-to solution for professional environments.
Key Features
• DLP® DarkChip3™ and BrilliantColor™; Enhanced black levels and vibrant colors
• 14000 ANSI Lumen with >30,000 hrs. laser life (Eco mode)
• Compatible with 4K-UHD input source for exceptional Image Clarity and Detail
• Excellent color performance – DIPC3, Rec709, EBU, SMPTE, Dynamic Black Settings
• Integrated Edge Blending and Warping for seamless projection alignment
• Constant Brightness for extend light source life & easy blending
• Supported flexible installation, including 360° rotation and portrait mode
• Instant On/Off: No pre-heating or post-cooling needed
• Supported 3G-SDI / HDBaseT™ interface for distribution of HD video and digital audio content
• Network Ready; Easy integration and management with RJ45 connectivity
• Offers eight optional motorized interchangeable lenses with Lens Positioning Memory (LPS)
In-depth Look - PJ-Control
The PJ-Control Tool is a control software for Vivitek’s projectors. It’s useful for AV System Installers and Enterprise IT members who need a centralized system tool for remotely managing and monitoring the deployment of multiple networked Vivitek projectors. It allows for the scheduling of powering on/off systems, and controls such as picture, lens, blend, geometry, masking, color and other settings.
PJ-Control Tool Features
• SYSTEM MANAGEMENT
Manage and monitor single or multi projectors over the same network.
• CREATE GROUPS
Create groups, naming and controlling the projectors simultaneously.
• SIMPLE SET UP
Projectors in the same network are automatically found and displayed.
• REAL TIME
Support poll time to get real-time system status.
• CUSTOM WARP
Custom Warping to give adjustment for highly precise image correction. (DU9900Z only)
• CUSTOM MASKING
Line and Bitmap Masking to create capabilities of masking. (DU900Z only)
Specifications
Native Resolution: WUXGA(1920 x 1200)
Brightness: 14000 ANSI Lumens
Contrast Ratio: 3,000,000:1 (Full On/Off)
Max. Supported Resolution: 4K-UHD (3840 x 2160)
Native Aspect Ratio: 16:10
Lamp Life and Type: 30,000 hours / Dual Laser Technology
Display Type: Single chip DLP® Technology by Texas Instruments
Chip Size: 0.8" DMD
Throw Ratio: 9 optional lenses from 0.31:1 to 6.94:1 throw ratio range
Zoom Ratio: Motorized
Offset: Motorized Lens Shift
Keystone Correction: Horizontal ±60°, Vertical ±40°
Lens Shift Range: Vertical: ±60%, Horizontal: ±20%)
Video Compatibility: SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p, 4K UHD)

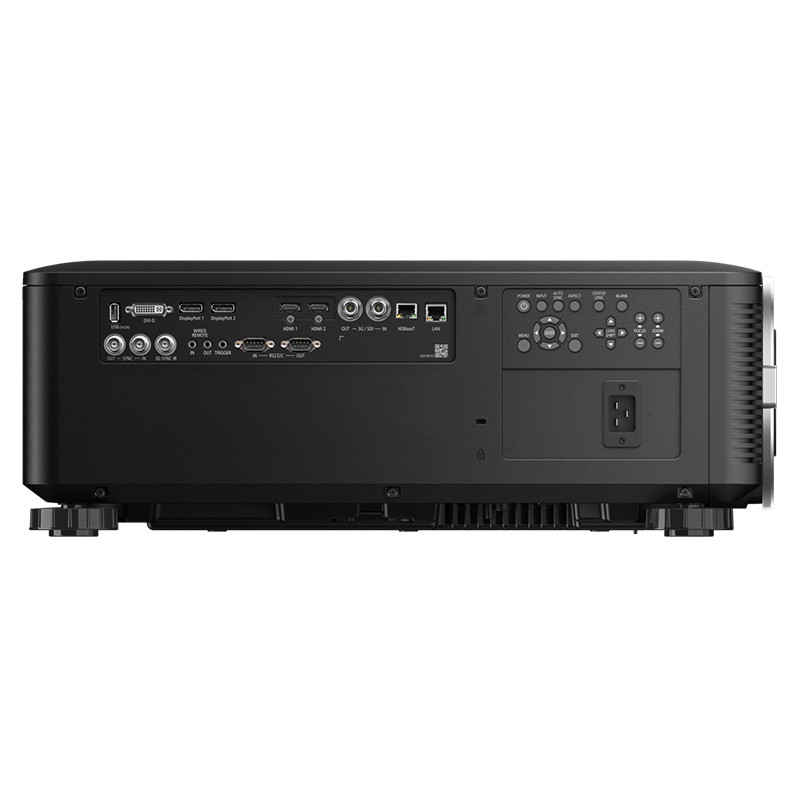

I/O Connection Ports: HDMI Number of Ports 2 (x2), Display Port (x2), DVI-D , USB B (Service), Remote Jack(wire remote) , 3G-SDI , RS-232 (x2: In and Out), 3D-Sync (x2: In and Out), USB A x1 (Power Only-5V/2A), RJ45 (LANx1, HDBaseTx1)
Dimensions (W x D x H): 500 x 591 x 216 mm
Noise Level: 39dB / 36dB (Normal / Eco Mode)
Power: AC 100-240V, 50/60Hz Consumption: 830W240Vac (Normal), <0.5W (Standby)
Remote Control P/N: 5042221900
Standard Accessories: Remote Control P/N (5042221900), AC Power Cord , Lens Cap , Quick Start Guide , Warranty Card (by region) , Remote Controller (with battery)
Optional Accessories: 3D Ready(DLP link, PC+Video) , Direct 3D (HDMI 1.4a) , 3D Mandatory Formats supported (top/bottom, right/left, frame sequential) , Keypad lock
Warranty: Large Venue Laser Phosphor Warranty: 5 Year projector / 5 years or 20.000h on the Laser Phosphor illumination source.(Whichever comes first)
Product Accessories:
- Remote control Part Number: 5042221900
Lens Options:
- Ultra Short Throw Throw Ratio: 0.31-0.33 Part Number: SS-5811142137-VV (D89-UST01)
- Short Throw (F) Throw Ratio: 0.55 – 0.75 Part Number: SS-5811142106-VV (D89-UWZ01)
- Short Throw (Z) Throw Ratio: 0.74-1.08 Part Number: S-5811141778-VV (D89-UWZ02)
- Normal Throw 1 Throw Ratio: 1.05-1.41 Part Number: SS-5811141777-VV (D89-WZ01)
- Standard Lens Throw Ratio: 1.4-2.11 Part Number: SS-5811141775-VV (D89-ST01)
- Long Throw 1 Throw Ratio: 2.1-4.0 Part Number: SS-5811141776-VV (D89-SMLZ01)
- Long Throw 2 Throw Ratio: 3.0 – 4.52 Part Number: 3797745400-SVK(D88-LOZ101)
- Long Throw 3 Throw Ratio: 4.46 – 6.94:1 Part Number: (3797744900-SVK)D88-LOZ201
