EVH-1152D/64-WHT

EVH-1152D/64-WHT

EV 60 ° x 40°, EVCOAT, white SMX/DH7N

Logga in för priser
EVH-1152D/64-WHT

EV 60 ° x 40°, EVCOAT, white SMX/DH7N

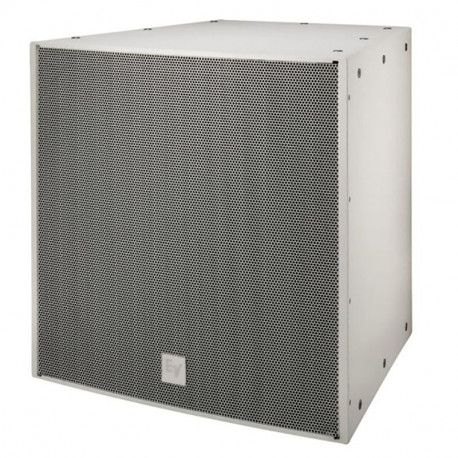

The EVH family of models employs an unmatched combination of superior acoustic design and rigging, allowing vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF & EVH Series. Twenty-eight suspension points for use with rated eyebolts or EV-I cluster hardware provide low-cost, simple rigging solutions.

Key features
• Ideal for reverberant spaces
• Pattern control maintained down to 500 Hz
• 15-inch SMX2151 woofer
• 3-inch DH7N titanium/neodymium HF compression driver
• Rotatable Constant-directivity waveguide
• Six available coverage patterns from 40º x 30º to 90º x 90º
• 106 dB sensitivity, 139 dB maximum SPL
• Power handling: 500 W continuous, 2000 W peak
• 4th-order passive crossover with HF protection
• Trapezoidal enclosure in three finishes: EVCoat, FG or PI
• M10 threaded suspension points (28)
Typ
Två-vägs, hornladdad, full-range högtalare
Frekvensomfång
60 – 17.000 (-3 dB), 50 - 20.000 (-10 dB) Hz
Kontakter in
Phoenix/Euroblock skruvterminaler
Mått (BxHxD)
768,6 x 768,6 x 680,1 mm
Vikt
66,1 kg
Färg
Vit
Spridning
60 x 40 °
Max SPL 1m
138 dB
Delningsfrekvens
1300 Hz
Baselement
15″ SMX2151
Diskantelement
3″ DH7N-kompressordriver
Material
13-lagers väderbeständig björk, EVCoat
Monteringsbygel
28 M10 gängade fästpunkter
Effekttålighet
500 (kontinuerlig, 2000 (peak) W
Känslighet 1W/1m
105 dB
Impedans
8 (nominal), 6 (minimum) Ω
