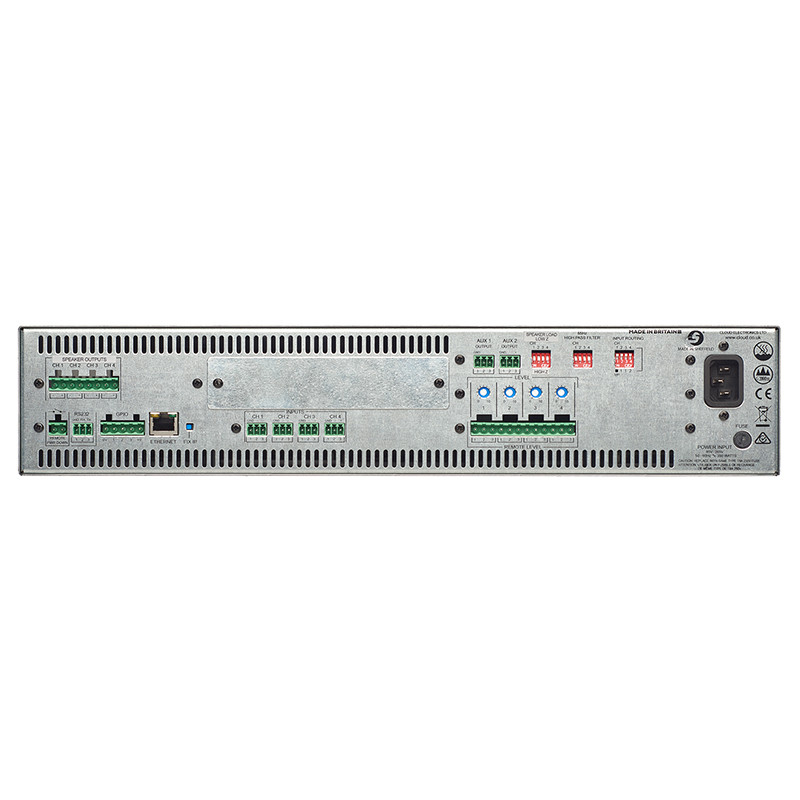

CVA4250

Cloud 4 x 250W @ 4Ω-8Ω-70V-100V Digital amplifier w/DSP & Ethernet

4 Channel 250W Per Output Channel Digital DSP Amplifier

CVA4250
Cloud Electronics, UK introduces its new range of energy efficient, class-leading amplifiers with the introduction of its new CVA-Series digital multi-channel digital amplifiers.

Flexible Output
All models in the CV-Digital series offer a total power output capability of 1KW, shared across the amplifier channels. This flexible approach allows a single, multi-channel amplifier, to drive loudspeaker systems differing in load size, in different areas of a building or venue, whilst optimising overall power output capability. (100V only.)

Ethernet / DSP
A full suite of user configurable DSP functionality is on-board the CVA-Digital series, which includes input routing, multi-band parametric room and speaker optimisation EQ, output level control and limiting, and 1.5s of assignable delay. Amplifiers can be easily set up for multi-channel or parallel channel operation and bi-amping, with full control of crossover parameters.

Auxiliary Outputs
Providing the same DSP power as the normal amplifier channels, the auxiliary outputs can be configured as traditional slave outputs, or used as independent signal processing and routing channels.

Analogue and Digital Control
The CVA-Digital series amplifiers are compatible with standard Cloud RL Series remote level control plates. DSP parameters are accessible via RS-232 and Ethernet, for interfacing to third-party control systems. A 3-way GPIO port can be configured for external master mute and fault condition signalisation.
