PYR-S12
Passive infrared motion sensor with max. 12m, pos/neg TTL outputs, adjustable delay time max. 10 sec., blocking time between 2 detections adjustable max.13 sec., external on/off input, 5-24VDC power supply. Available in white (PYR-S12/W) or dark gray (PYR-S12/D) colors. Suitable for NP-10, NP-5, NP-2 players.



The presence sensor or passive infrared motion detector automatically activates the connected player every time the sensor detects a minimum movement. When the last person leaves the detection area and the set timing period has elapsed, the connected player will end the memorized programming.

In the case of a crowded room, where many people enter and leave, the motion sensor will continue to detect movements, it is possible to block the detection of the sensor by activating the appropriate Inhibit input. The sensor allows you to independently set a short pause between two motion detections.

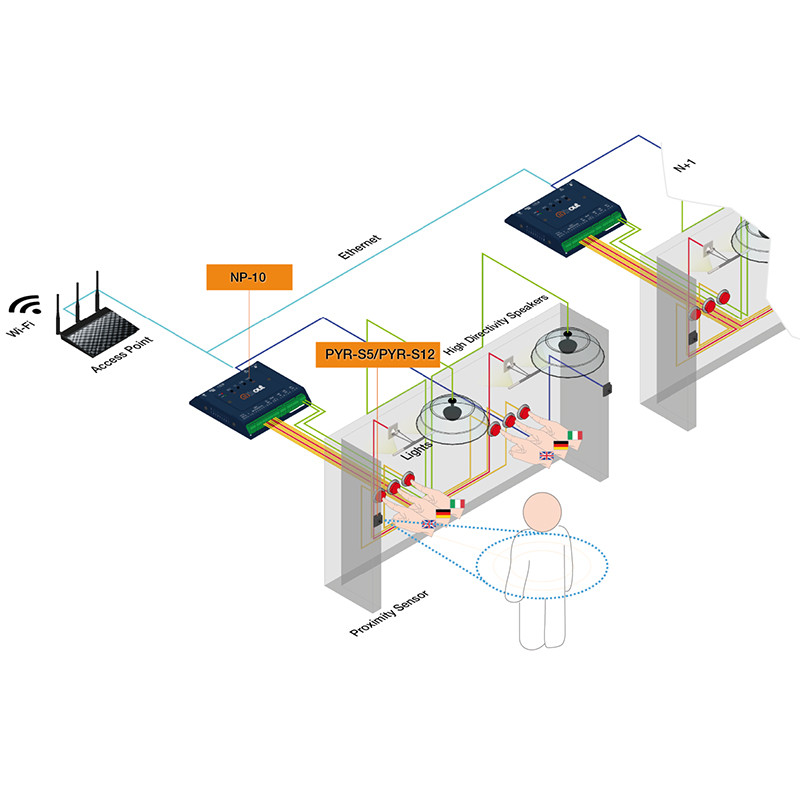

The PYR S12 motion sensor is designed to be combined with all InOut players, ideal for the NP10 player.

• Power supply: +5vdc to +24vdc.
• 12m. Maximum distance for motion detection
• Two TTL outputs, positive pulse and negative pulse
• Duration of output pulse with time adjustable: 1 sec to 10 sec
• Inhibition time adjustment between two detections: 5 sec to 12 sec
• Re-triggerable mode function
• Input to disable the sensor, compatible with I / O player InOut or external contact
• Bi-color LED indication, green = To pulse timer on, red = Ti inhibition timer on or Inibhit input active
• Consumption: 70mW max. (20mW standby)
• Dimensions: 70.4x50x28.7mm
• Available colors: W = Off-white D = Dark gray
• Plastic case material: ABS UL94V-1
• Weight: 35 g
• Operating temperature: 0° to +50° C
• Storage temperature: -20° to +60° C
• Protection category: IP 20
