EV Ceiling Standard Bundle: 1x U120:1M-EU & 4x EVID-EC4.2
BSYS-EVID-EC4.2W

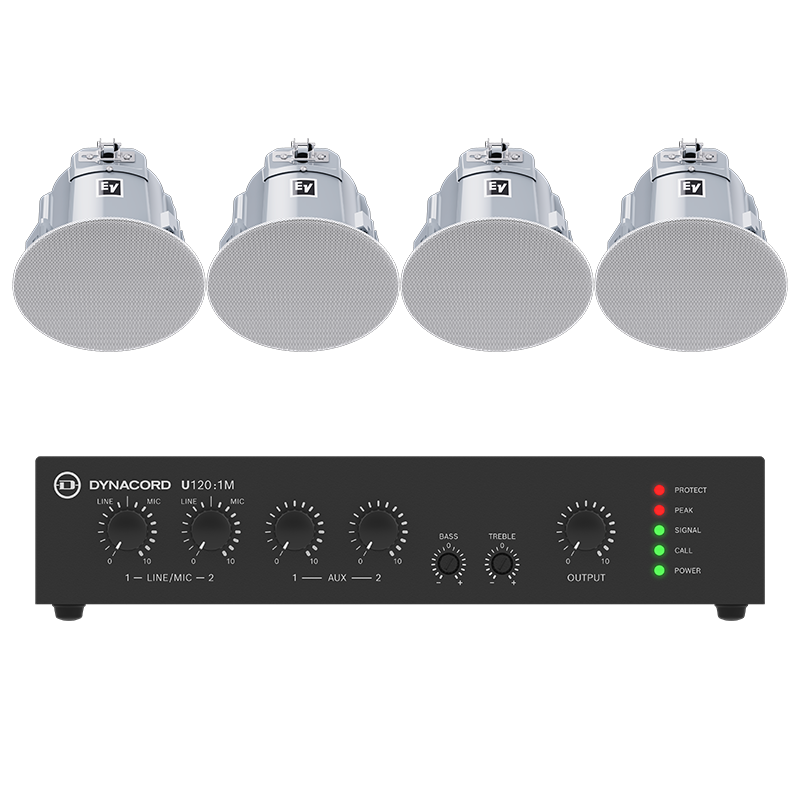

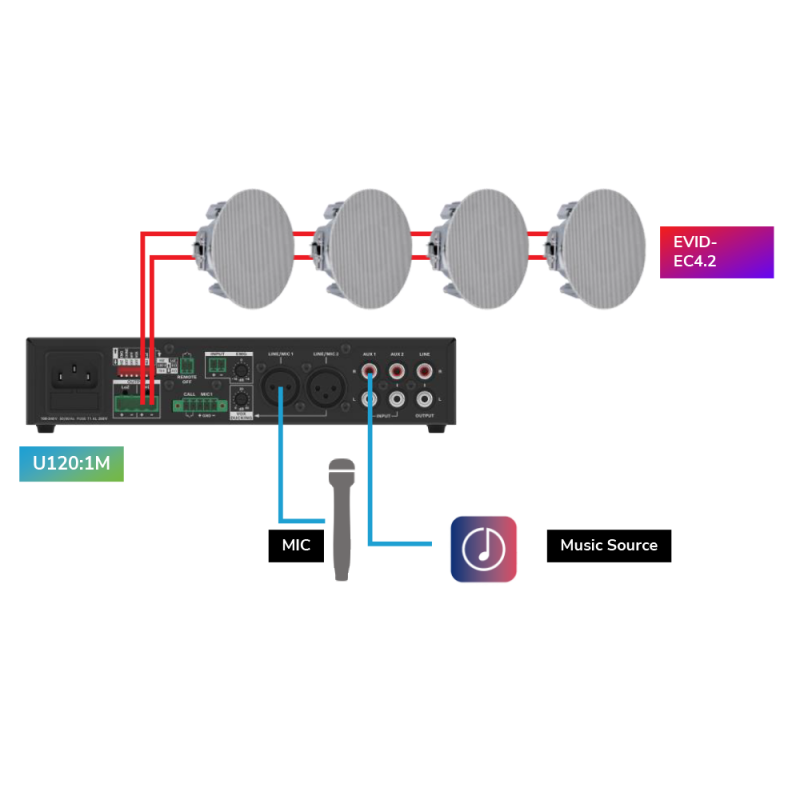

This system combines four EVID-EC4.2 ceiling speakers with a Dynacord U120:1M-EU mixer amplifier. Compact full-range ceiling speakers provide wide, even coverage, so a small shop or café can be filled with consistent background music without obvious “hot spots”. The U Series mixer amp lets you plug in a music player plus a microphone for simple announcements, then quickly balance levels and basic tone from the front panel – ideal for single-zone, entry-level installations where space and budget are tight, but reliability still matters.
EVID-EC4.2
CEILING SPEAKER 4" 70/100V WHITE
The Electro-Voice EVID-EC4.2 is a complete 4-inch coaxial two-way loudspeaker that offers excellent sound quality and outstanding reliability with firstclass aesthetics.
The EVID-EC4.2 utilizes a transformer that offers a selection of 1.25 (70-V only), 2.5, 5, 10 or 20 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8-ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle is constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from heavy gauge coated steel. The low-profile enclosure makes it easy to mount in very tight spaces. A side terminalcover provides access to a 4-pin terminal block that allows direct connection to the speaker with 12-gauge and 3.3 mm2-wire and provides pass through to additional speakers.
A mounting ring and a tile bridge are included for safe suspension of the EVID-EC4.2 ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles.
The wide range of EVID ceiling speakers has been designed to work together as a complete system in a variety of different ceiling constructions, and to be used in combination with other EVID surface-mount and in-wall speakers Parts included
U120:1M MIXER AMPLIFIER
Introducing the U120:1M, a 120 W mixer amplifier designed to cater to the demands of small to mediumsized installations, where paramount considerations include quality, performance, and unwavering reliability. This mixer amplifier is ideal for background music and crystal-clear voice announcement applications, making it a perfect fit for diverse environments such as bars, restaurants, retail outlets, educational institutions, houses of worship, museums, galleries, transport hubs, and conference centers. Thanks to its compact size, standing just one rack unit high and half rack wide, the U120:1M presents numerous installation possibilities, even in spaceconstrained settings. Included brackets facilitate both single and dual rack-mount configurations, while desktop and under-counter installations are equally viable. When rack-mounted side by side, two amplifiers can seamlessly inhabit a single rack unit, optimizing space utilization and effectively doubling both channel count and output power.
• Versatile inputs: 4 inputs, 2 mic/line options with phantom power support
• Full power output supporting 4Ω, 8Ω, 70 V and 100 V
• EMG override input, ensuring critical messages are heard clearly
• Contact override with 2-tone chime for attention-grabbing alerts
• 70 Hz and 120 Hz high-pass filters to customize audio output and eliminate unwanted low-frequency noise
• Space-saving compact ½ rack design, providing versatility without compromising performance
• VOX Ducking that automatically adjusts background music volume for clear voice communication
• Remote activation of standby mode with Remote OFF (Stand by), enhancing energy efficiency
BSYS-EVID-EC4.2W
This system combines four EVID-EC4.2 ceiling speakers with a Dynacord U120:1M-EU mixer amplifier. Compact full-range ceiling speakers provide wide, even coverage, so a small shop or café can be filled with consistent background music without obvious “hot spots”. The U Series mixer amp lets you plug in a music player plus a microphone for simple announcements, then quickly balance levels and basic tone from the front panel – ideal for single-zone, entry-level installations where space and budget are tight, but reliability still matters.
EVID-EC4.2
CEILING SPEAKER 4" 70/100V WHITE
The Electro-Voice EVID-EC4.2 is a complete 4-inch coaxial two-way loudspeaker that offers excellent sound quality and outstanding reliability with firstclass aesthetics.
The EVID-EC4.2 utilizes a transformer that offers a selection of 1.25 (70-V only), 2.5, 5, 10 or 20 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8-ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle is constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from heavy gauge coated steel. The low-profile enclosure makes it easy to mount in very tight spaces. A side terminalcover provides access to a 4-pin terminal block that allows direct connection to the speaker with 12-gauge and 3.3 mm2-wire and provides pass through to additional speakers.
A mounting ring and a tile bridge are included for safe suspension of the EVID-EC4.2 ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles.
The wide range of EVID ceiling speakers has been designed to work together as a complete system in a variety of different ceiling constructions, and to be used in combination with other EVID surface-mount and in-wall speakers Parts included
U120:1M MIXER AMPLIFIER
Introducing the U120:1M, a 120 W mixer amplifier designed to cater to the demands of small to mediumsized installations, where paramount considerations include quality, performance, and unwavering reliability. This mixer amplifier is ideal for background music and crystal-clear voice announcement applications, making it a perfect fit for diverse environments such as bars, restaurants, retail outlets, educational institutions, houses of worship, museums, galleries, transport hubs, and conference centers. Thanks to its compact size, standing just one rack unit high and half rack wide, the U120:1M presents numerous installation possibilities, even in spaceconstrained settings. Included brackets facilitate both single and dual rack-mount configurations, while desktop and under-counter installations are equally viable. When rack-mounted side by side, two amplifiers can seamlessly inhabit a single rack unit, optimizing space utilization and effectively doubling both channel count and output power.
• Versatile inputs: 4 inputs, 2 mic/line options with phantom power support
• Full power output supporting 4Ω, 8Ω, 70 V and 100 V
• EMG override input, ensuring critical messages are heard clearly
• Contact override with 2-tone chime for attention-grabbing alerts
• 70 Hz and 120 Hz high-pass filters to customize audio output and eliminate unwanted low-frequency noise
• Space-saving compact ½ rack design, providing versatility without compromising performance
• VOX Ducking that automatically adjusts background music volume for clear voice communication
• Remote activation of standby mode with Remote OFF (Stand by), enhancing energy efficiency
