EV Ceiling Premium Bundle: 1x U120:1M-EU & 4x EVID-C6.2-G2
BSYS-EVID-C6.2-G2W

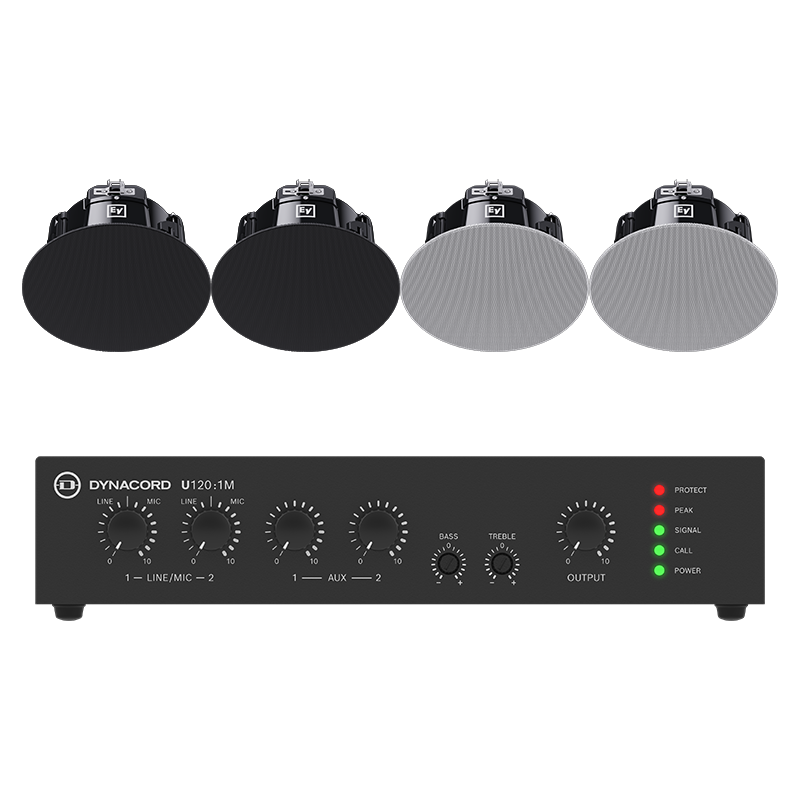

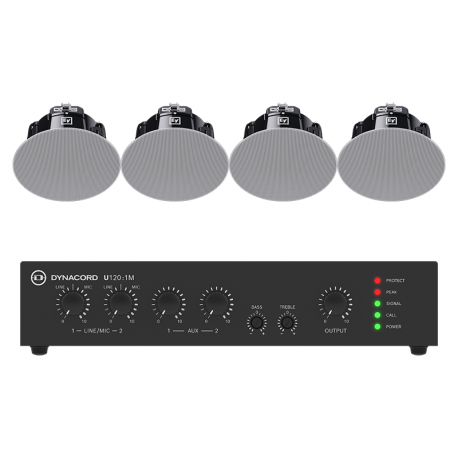

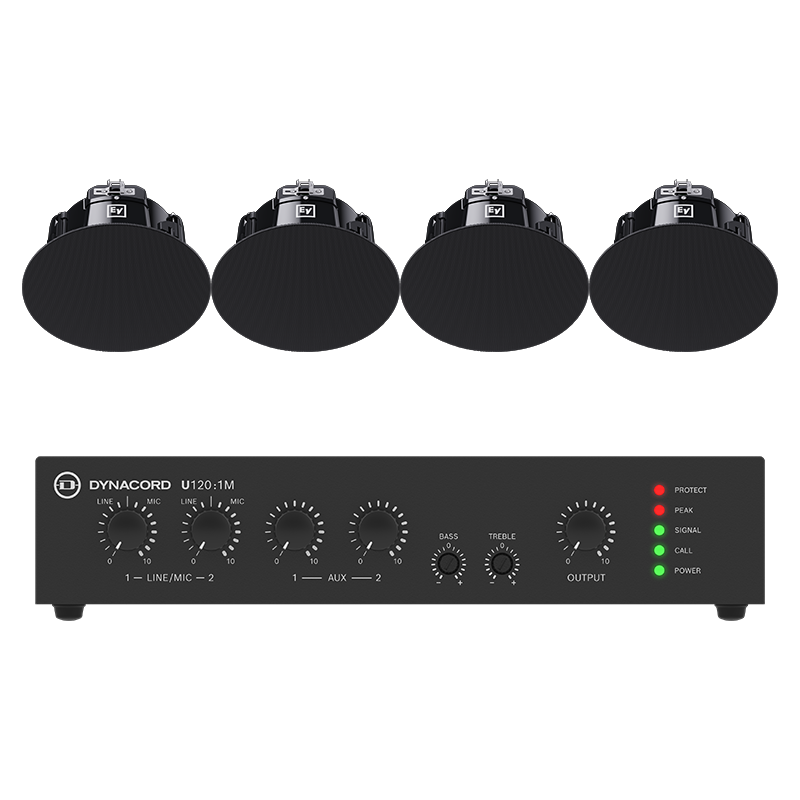

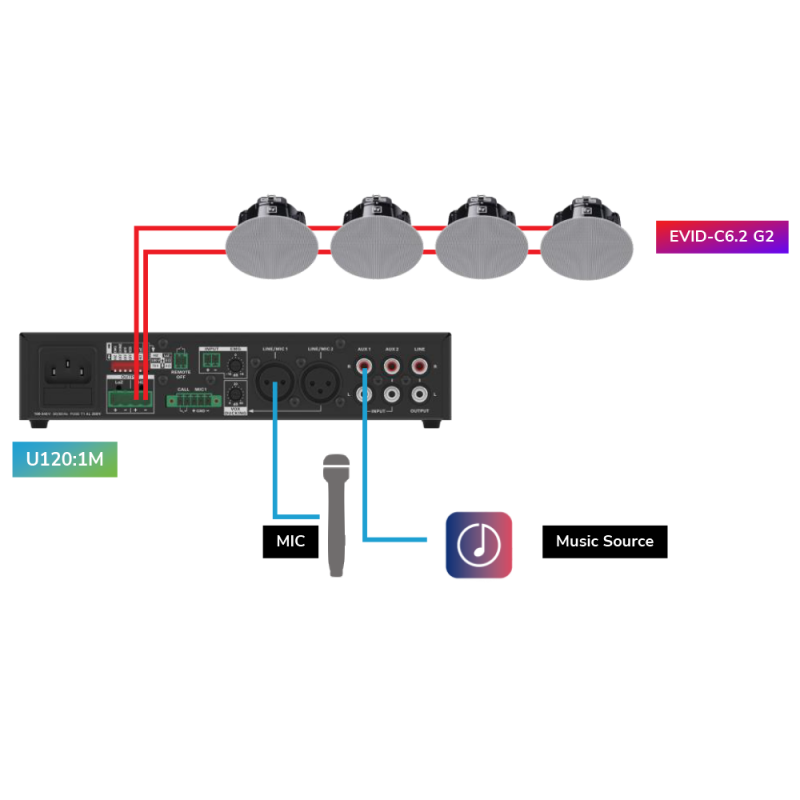

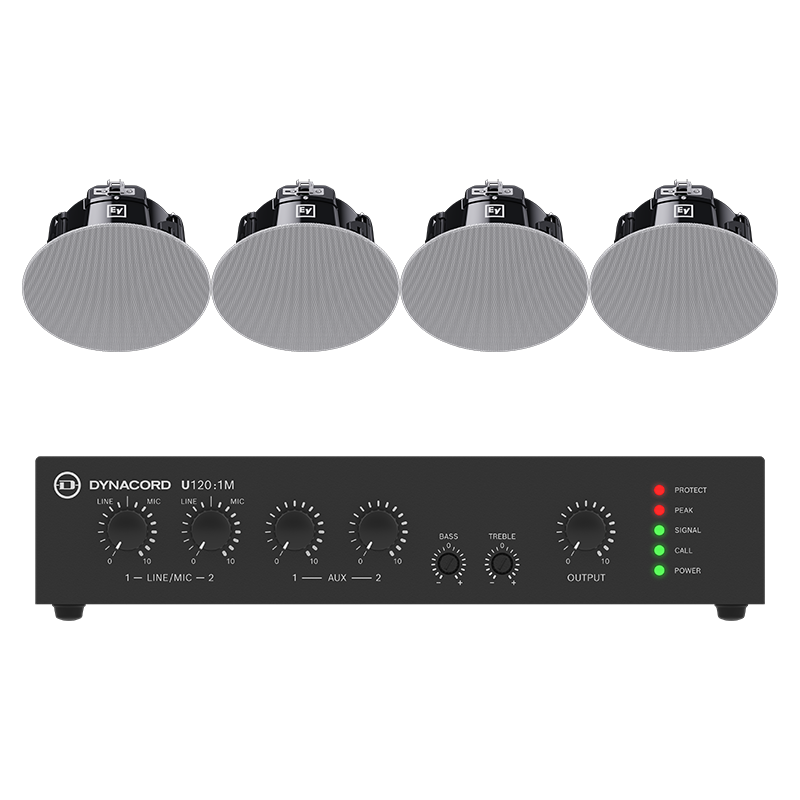

This bundle pairs four EVID-C6.2-G2 ceiling speakers with a Dynacord U120:1M-EU mixer amplifier. It’s ideal where a clean, low- profile look is important – for example in modern retail concepts, cafés and restaurant dining areas. The in-ceiling loudspeakers offer broad coverage and smooth frequency response, helping you achieve an even sound coverage with fewer speakers. The U Series mixer amplifier provides sufficient headroom for music and paging, with simple controls and high-/low-impedance output options that make it easy to match the amplifier to your chosen speaker line wiring during installation.
EVID-C6.2-G2
CEILING SPEAKER 6.5" 70/100V WHITE
The Electro-Voice EVID-C6.2-G2 is a complete 6.5-inch coaxial two-way loudspeaker that offers excellent sound quality and outstanding reliability with first-class aesthetics. It includes the SwiftLock mounting system for quick and easy installations that are fast and reliable without compromising on safety.
The loudspeaker features a point-source design to improve off-axis response and overall uniform coverage. The EVID-C6.2-G2 utilizes a transformer that offers a selection of 1.9 (70-V only), 3.8, 7.5, 15 or 30 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8-ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle is constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from heavy gauge coated steel. The low-profile enclosure makes it easy to mount in very tight spaces. A side terminal-cover provides access to a 4-pin terminal block that allows direct connection to the speaker with 12-gauge and 3.3 mm2-wire and provides pass through to additional speakers.
A mounting ring and a tile bridge are included for safe suspension of the EVID-C6.2-G2 ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles.
The wide range of EVID ceiling speakers has been designed to work together as a complete system in a variety of different ceiling constructions, and to be used in combination with other EVID surface-mount and in-wall speakers.
U120:1M MIXER AMPLIFIER
Introducing the U120:1M, a 120 W mixer amplifier designed to cater to the demands of small to mediumsized installations, where paramount considerations include quality, performance, and unwavering reliability. This mixer amplifier is ideal for background music and crystal-clear voice announcement applications, making it a perfect fit for diverse environments such as bars, restaurants, retail outlets, educational institutions, houses of worship, museums, galleries, transport hubs, and conference centers. Thanks to its compact size, standing just one rack unit high and half rack wide, the U120:1M presents numerous installation possibilities, even in spaceconstrained settings. Included brackets facilitate both single and dual rack-mount configurations, while desktop and under-counter installations are equally viable. When rack-mounted side by side, two amplifiers can seamlessly inhabit a single rack unit, optimizing space utilization and effectively doubling both channel count and output power.
• Versatile inputs: 4 inputs, 2 mic/line options with phantom power support
• Full power output supporting 4Ω, 8Ω, 70 V and 100 V
• EMG override input, ensuring critical messages are heard clearly
• Contact override with 2-tone chime for attention-grabbing alerts
• 70 Hz and 120 Hz high-pass filters to customize audio output and eliminate unwanted low-frequency noise
• Space-saving compact ½ rack design, providing versatility without compromising performance
• VOX Ducking that automatically adjusts background music volume for clear voice communication
• Remote activation of standby mode with Remote OFF (Stand by), enhancing energy efficiency
BSYS-EVID-C6.2-G2W
This bundle pairs four EVID-C6.2-G2 ceiling speakers with a Dynacord U120:1M-EU mixer amplifier. It’s ideal where a clean, low- profile look is important – for example in modern retail concepts, cafés and restaurant dining areas. The in-ceiling loudspeakers offer broad coverage and smooth frequency response, helping you achieve an even sound coverage with fewer speakers. The U Series mixer amplifier provides sufficient headroom for music and paging, with simple controls and high-/low-impedance output options that make it easy to match the amplifier to your chosen speaker line wiring during installation.
EVID-C6.2-G2
CEILING SPEAKER 6.5" 70/100V WHITE
The Electro-Voice EVID-C6.2-G2 is a complete 6.5-inch coaxial two-way loudspeaker that offers excellent sound quality and outstanding reliability with first-class aesthetics. It includes the SwiftLock mounting system for quick and easy installations that are fast and reliable without compromising on safety.
The loudspeaker features a point-source design to improve off-axis response and overall uniform coverage. The EVID-C6.2-G2 utilizes a transformer that offers a selection of 1.9 (70-V only), 3.8, 7.5, 15 or 30 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8-ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle is constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from heavy gauge coated steel. The low-profile enclosure makes it easy to mount in very tight spaces. A side terminal-cover provides access to a 4-pin terminal block that allows direct connection to the speaker with 12-gauge and 3.3 mm2-wire and provides pass through to additional speakers.
A mounting ring and a tile bridge are included for safe suspension of the EVID-C6.2-G2 ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles.
The wide range of EVID ceiling speakers has been designed to work together as a complete system in a variety of different ceiling constructions, and to be used in combination with other EVID surface-mount and in-wall speakers.
U120:1M MIXER AMPLIFIER
Introducing the U120:1M, a 120 W mixer amplifier designed to cater to the demands of small to mediumsized installations, where paramount considerations include quality, performance, and unwavering reliability. This mixer amplifier is ideal for background music and crystal-clear voice announcement applications, making it a perfect fit for diverse environments such as bars, restaurants, retail outlets, educational institutions, houses of worship, museums, galleries, transport hubs, and conference centers. Thanks to its compact size, standing just one rack unit high and half rack wide, the U120:1M presents numerous installation possibilities, even in spaceconstrained settings. Included brackets facilitate both single and dual rack-mount configurations, while desktop and under-counter installations are equally viable. When rack-mounted side by side, two amplifiers can seamlessly inhabit a single rack unit, optimizing space utilization and effectively doubling both channel count and output power.
• Versatile inputs: 4 inputs, 2 mic/line options with phantom power support
• Full power output supporting 4Ω, 8Ω, 70 V and 100 V
• EMG override input, ensuring critical messages are heard clearly
• Contact override with 2-tone chime for attention-grabbing alerts
• 70 Hz and 120 Hz high-pass filters to customize audio output and eliminate unwanted low-frequency noise
• Space-saving compact ½ rack design, providing versatility without compromising performance
• VOX Ducking that automatically adjusts background music volume for clear voice communication
• Remote activation of standby mode with Remote OFF (Stand by), enhancing energy efficiency
