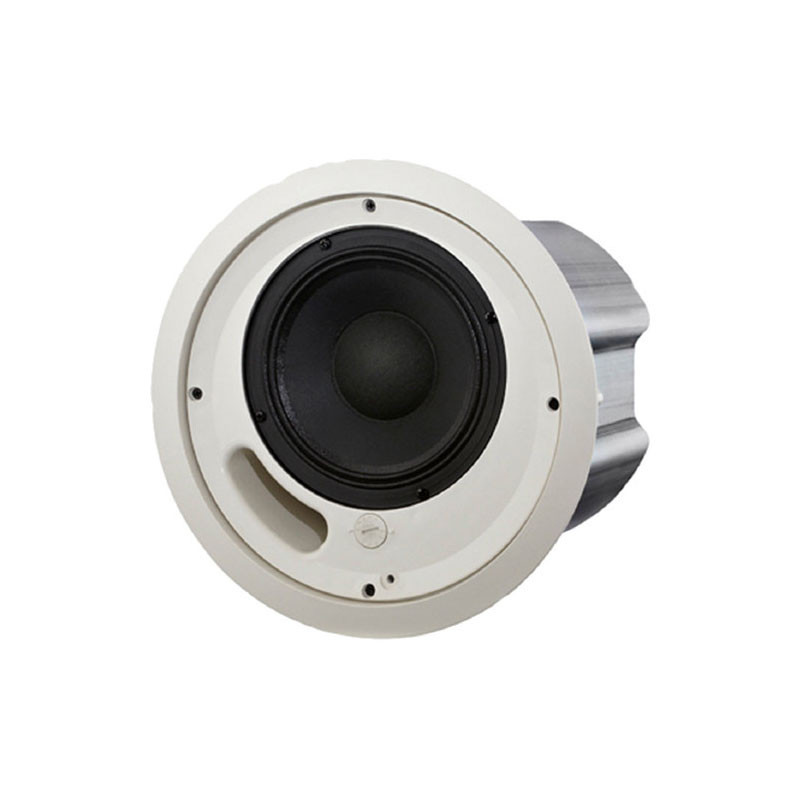

LC20-PC60G6-6E

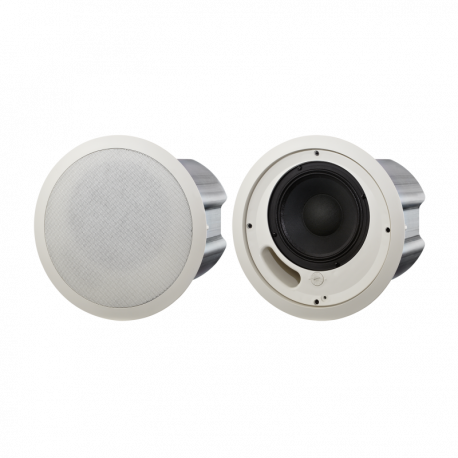

BOSCH 6" Infälld takhögtalare, Premium, 60W/100V, EN54-24, par
BOSCH 6" Infälld takhögtalare, Premium, 60W/100V, EN54-24, par
• High output true compression driver for wide dispersion and superior coverage control out to 10 kHz
• Long throw 6.5 inch (165 mm) woofer housed in a large vented steel enclosure for extended LF performance down to 50 Hz
• 100 watt power handling provides for 95 dB maximum SPL
• Front baffle transformer tap adjustment switch
• EN 54-24
The LC20-PC60G6-6E speaker system from Bosch is a complete high performance two-way ceiling speaker package. The LC20-PC60G6-6E is ideal for background and foreground music, voice evacuation, paging, and sound reinforcement applications. The Premium Ceiling Speaker provides a unique combination of high acoustic output, superb coverage control, high power handling and wide dispersion, to cover virtually any size listening area. The LC20-PC60G6-6E comes completely assembled with an integrated bezel assembly, grille, rear enclosure, 6.5-inch (165 mm) coaxial two-way speaker and internal high power line-matching transformer. The speaker features a waveguide coupled true compression HF driver and a long excursion 6.5-inch (165 mm) woofer. The LC20-PC60G6-6E utilizes a transformer that offers a selection of 7.5 W (70-V only), 15, 30 or 60 watts delivered to the speaker system using either 70-V or 100-V lines, or 8 ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is fully zinc plated and finished in semi-gloss white powder-coated enamel. The baffle and bezel are constructed from fire rated ABS. The rear enclosure is constructed from zinc-plated, heavy gauge steel. The rear enclosure, with fiberglass damping material, provides an optimum internal volume for extended low-frequency performance. A rear cover, with provisions for a junction box fitting, provides access to a 4-pin terminal block that allows direct connection to the speaker with up to 12 gauge wire and provides pass through to additional speakers. For special voice evacuation installations a ceramic terminal block is provided and attaches to the speaker back can enclosure under the rear connector cover. The rear input cover for EN54 is used to create a seal to protect the ceiling speaker from moisture and foreign particles, if properly installed. The weatherized terminal cover must be used in all EN54 installations. Two adjustable metal tile bridges and metal “C” ring are included for safe suspension of the LC20- PC60G6-6E ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles.
Technical Specifications
Frequency Range (-10 db): 50 Hz – 20 kHz
Nominal Coverage (Conical): 100°
Power Handling (Direct Coupled): 200 W Program, 100 W Pink Noise as per EN54-24 standard
Sensitivity per EN54-24 standard (SPL 1 W/4 m): 75 dB
Max Calculated SPL per EN54-24 standard: 60 watt Transformer coupled @ 4 meters: 92 dB 100 watt
Direct coupled @ 4 meters: 95 dB
Impedance: Direct Coupled: 8 ohms 70V Transformer Coupled: 60 watt/83Ω, 30 watt/167Ω, 15 watt/ 333Ω, 7.5 watt/667Ω 100v Transformer Coupled: 60watt/167Ω, 30 watt/333Ω, 15 watt/667Ω
LF Transducer: 165 mm (6.5 in)
HF Transducer: 35 mm Compression Driver
Transformer Taps: 70V: 60W, 30W, 15W, 7.5W, 8 ohm 100V: 60W, 30W, 15W, 8 ohm
• High output true compression driver for wide dispersion and superior coverage control out to 10 kHz
• Long throw 6.5 inch (165 mm) woofer housed in a large vented steel enclosure for extended LF performance down to 50 Hz
• 100 watt power handling provides for 95 dB maximum SPL
• Front baffle transformer tap adjustment switch
• EN 54-24
The LC20-PC60G6-6E speaker system from Bosch is a complete high performance two-way ceiling speaker package. The LC20-PC60G6-6E is ideal for background and foreground music, voice evacuation, paging, and sound reinforcement applications. The Premium Ceiling Speaker provides a unique combination of high acoustic output, superb coverage control, high power handling and wide dispersion, to cover virtually any size listening area. The LC20-PC60G6-6E comes completely assembled with an integrated bezel assembly, grille, rear enclosure, 6.5-inch (165 mm) coaxial two-way speaker and internal high power line-matching transformer. The speaker features a waveguide coupled true compression HF driver and a long excursion 6.5-inch (165 mm) woofer. The LC20-PC60G6-6E utilizes a transformer that offers a selection of 7.5 W (70-V only), 15, 30 or 60 watts delivered to the speaker system using either 70-V or 100-V lines, or 8 ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is fully zinc plated and finished in semi-gloss white powder-coated enamel. The baffle and bezel are constructed from fire rated ABS. The rear enclosure is constructed from zinc-plated, heavy gauge steel. The rear enclosure, with fiberglass damping material, provides an optimum internal volume for extended low-frequency performance. A rear cover, with provisions for a junction box fitting, provides access to a 4-pin terminal block that allows direct connection to the speaker with up to 12 gauge wire and provides pass through to additional speakers. For special voice evacuation installations a ceramic terminal block is provided and attaches to the speaker back can enclosure under the rear connector cover. The rear input cover for EN54 is used to create a seal to protect the ceiling speaker from moisture and foreign particles, if properly installed. The weatherized terminal cover must be used in all EN54 installations. Two adjustable metal tile bridges and metal “C” ring are included for safe suspension of the LC20- PC60G6-6E ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles.
Technical Specifications
Frequency Range (-10 db): 50 Hz – 20 kHz
Nominal Coverage (Conical): 100°
Power Handling (Direct Coupled): 200 W Program, 100 W Pink Noise as per EN54-24 standard
Sensitivity per EN54-24 standard (SPL 1 W/4 m): 75 dB
Max Calculated SPL per EN54-24 standard: 60 watt Transformer coupled @ 4 meters: 92 dB 100 watt
Direct coupled @ 4 meters: 95 dB
Impedance: Direct Coupled: 8 ohms 70V Transformer Coupled: 60 watt/83Ω, 30 watt/167Ω, 15 watt/ 333Ω, 7.5 watt/667Ω 100v Transformer Coupled: 60watt/167Ω, 30 watt/333Ω, 15 watt/667Ω
LF Transducer: 165 mm (6.5 in)
HF Transducer: 35 mm Compression Driver
Transformer Taps: 70V: 60W, 30W, 15W, 7.5W, 8 ohm 100V: 60W, 30W, 15W, 8 ohm
