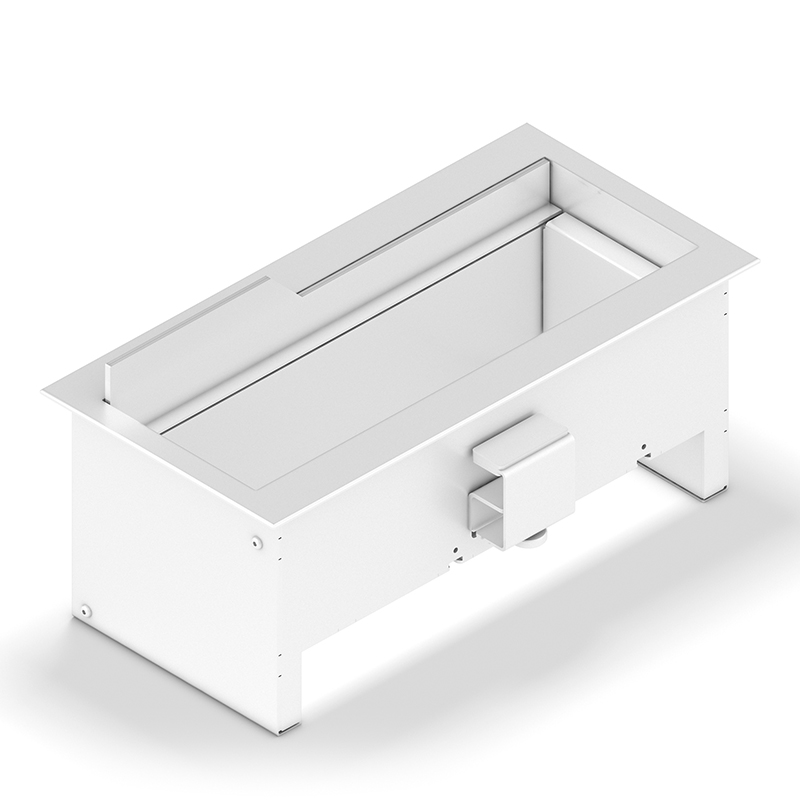

UNI4 CHASSIS SURFACE WHITE

PANCONNECT UNI4 Chassis, Surface, Vit, IP20

UNI | THE MOST ADVANCED BOX
Perfect connection box with pull-out cables & power

We have combined design, top quality material with perfect production and created the most advanced UNI connection panel – durable and modular box to your office.

PULL-OUT cable management system and special lid, which could be closed when the UNI is being used – perfect solution for your office or meeting room.

- Modularity is the key!
Each panel is unique – choose from a wide range of connectors
- Quick Installation
Installation of the UNI is simple and fast thanks to unique desk mount system
- Top Quality Material
Quality and durability is our priority. Stainless stell coated with three layer paint withstands harsh treatment
- Safety comes first!
The wiring is enclosed inside the panel – so you don’t have to worry about your safety

UNI is almost invisible – UNI can remain closed when being used thanks to a designed lid.
Two possible designs of the box corners Stylish sharp corners with hand brushed bevelled edges only 1,5 mm high for surface installation or rounded corners for in-table installation aligned with surface

CHOOSE FROM THREE TIMELESS COLOURS
All painted parts of each box are coated with scratch resistant 3-layer paint. This guarantees perfetly looking interconnection boxes for years and years.

TWO INSTALLATION OPTIONS
Connection boxes PANCONNECT offer two types of edges with two types of installation.

FLUSH MOUNT
Rounded corners of this box with R4 radius are perfect for flush installation when the box is aligned with the work top surface.

SURFACE MOUNT
Stylish hand brushed sharp corners only 1,5 mm high make the box look more subtle. Box is supposed to be installed on the surface of the work top. But surface mount is possible with rounded corners too.

MANY OPTIONS THANKS TO MODULARITY
Design your own UNI

CHOOSE YOUR CHASSIS

The chassis has 4 or 6 slots to hold the power module and up to 4 connection modules of your choice. Plus version is 20 mm deeper and is developed for signal component and control system integration.

CHOOSE YOUR POWER CARTRIDGE
Power cartridge consists of sockets and optionally USBs. It is available in 2 to 4 slot versions.

CHOOSE YOUR CABLE SYSTEM

Cable management system comes with up to 4 individually retracted cables. It is available in 2 cable lenghts (120 and 150 cm). Pull-out cable system comes with two, four or six cable 96 cm long.

CHOOSE THE RIGHT CHASSIS
Two sizes of chassis with countless possibilities of power and connection modules
STAINLESS STEEL QUALITY

PANCONNECT connection boxes are made from top quality lacquered stainless steel. Each chassis is the main frame of the UNI series and provides four or six variable slots. The number of power and connection modules is limited by chassis size only.

SELECT YOUR POWER CARTRIDGE
Various sockets, optional USB…

SOCKETS AND USB
The power module is inserts to the FLAT chassis and consists of sockets and optional 2 USB ports. The power module features a daisy-chainable WINSTA power connector or WAGO clamps. You could choose from wide range of power sockets in many coutry standards.

The following power socket country standards are available: SC (DE/EU), DK, FR, UK, IT, CH, Universal.

FILL THE BLANK BY CABLE SYSTEM
Two options of the cable management system – do you need two, four or six cables?  We have right solution.

YOUR OUTPUTS
Cable management system comes with up to 4 individually retracted cables in 2 cable lenghts (120 or 150 cm). It can include VGA, HDMI, audio, USB and LAN output.
Pull out cable system comes with two, four or six cables of 96 cm in length. This system can be equipped with the same cables as retraction system and display port extra. The choice of ports depends on the customer.
All cables are available in black colour only.

INTEGRATE YOUR SYSTEM
Every “+” version chassis is 20 mm deeper and is developed for signal component and control system integration.

CONTROL ALL FROM ONE PLACE
The contemporary use of digital media in conferences and meetings requires a flexible all-in-one solution for power, network and A/V connections. By integrating a control system keypad to UNI you get a full control over the meeting room including lights, blinds and the presentations equipment. Using a signal switcher with HDBaseT output narrows down number of outcomming cables to only one power cable and one signal cable. We cooperate with CUE, NEETS, EXTRON, PURETOOLS and others.
