EVU-1082/95-BLK

EVU-1082/95-BLK

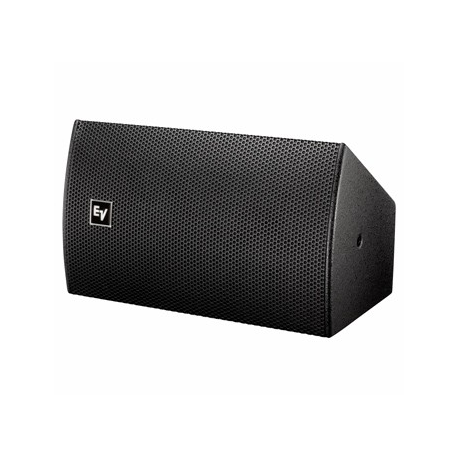

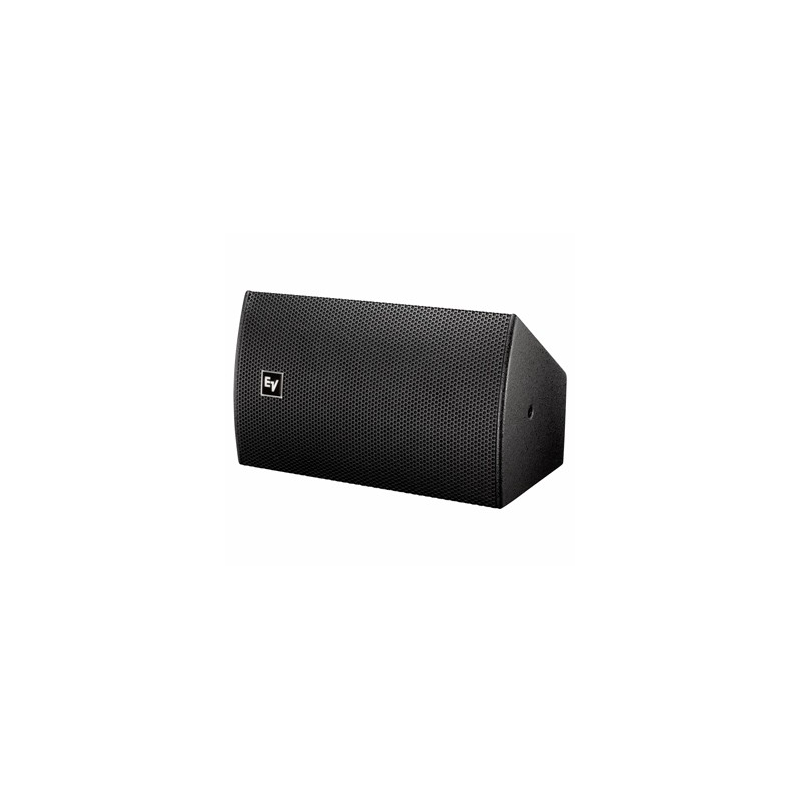

EV Single 8-inch Two-Way Loudspeaker, 90º x 50º, incl. U-bracket - Black

Logga in för priser
EVU108295BLK

EV Single 8-inch Two-Way Loudspeaker, 90º x 50º, incl. U-bracket - Black

EVU-1082/95
ULTRACOMPACT 2‑WAY W/SINGLE 8" WOOFER

• Sonically matched to all EV-Innovation lines
• Sophisticated 18-dB-octave passive crossover/EQ networks
• Asymmetrical enclosure for ideal under-balcony and stage-lip aiming
• Optional Neutrik Speakon(R) connector panel
• One 1.3-inch (33 mm) diaphragm I compression driver
• U-bracket included
• Optional 70 V and 100 V operation
• OmniMount(R)-compatible rear mounting points
• Available in black or white (interior use)
• Ultracompact 10 x 16 inch enclosure
• 90º x 50º rotatable waveguide
• Ultra-high power handling for size: 175 W continuous
• 123 dB Max SPL
• Asymmetrical trapezoidal enclosure design
• Compatible with OmniMount

EVU
ULTRACOMPACT INSTALLATION SOUND SYSTEM

• Sonically matched to all EV Innovation lines
• Sophisticated 18 dB octave passive crossover/EQ networks
• Asymmetrical enclosure for ideal under-balcony and stage-lip aiming
• Optional NL4-type connector panel
• One 1.3" diaphragm compression driver
• U-bracket included
• Optional 70 V and 100 V operation
• OmniMount-compatible rear mounting points
• Available in black or white (interior use)

Bringing ultracompact design to the EV Innovation family of installation loudspeakers, the EVU series shines in applications including delay, under‑balcony fill, front‑fill, wall mounting and distributed audio. EVU loudspeakers feature a rotatable Constant Directivity waveguide that provides truly uniform sound dispersion while allowing the horizontal coverage pattern to be independent of enclosure orientation. Sonically matched to complement the other EV Innovation products, EVU helps make EV Innovation the industry's most comprehensive and versatile line of installed‑sound loudspeakers.

A fourth‑order, 90 Hz high‑pass filter is recommended for use with all EVU loudspeakers.
Typ
2-vägs högtalare
Frekvensomfång
110 - 16.000 (-3 dB), 65 - 20.000 (-10 dB) Hz
Kontakter in
Phoenix/Euroblock skruvterminaler
Mått (BxHxD)
409,1 x 247,2 x 237,2 mm
Vikt
7,4 kg
Färg
Svart
Spridning
90 x 50 °
Max SPL 1m
117 (kontinuerlig), 123 (peak) dB
Delningsfrekvens
2300 Hz
Baselement
1 x 8” ICT-8-8-driver
Diskantelement
1 x 1,3” ICT-1-8-kompressordriver
Material
9-lagers lövträdsplywood med texturiserad finish
Monteringsbygel
6 M8 gängade fästpunkter
Effekttålighet
175 (kontinuerlig), 700 (peak) W
Känslighet 1W/1m
95 dB
Impedans
8 (nominal), 6 (minimum) Ω
EVUCDNL4
EVUTK60
