RDL Wall-Mounted Mic/Dante Interface 0x2
EU-RN02M
Wall-Mounted Mic Output Dante Interface 0 x 2
• EU Series Dante or AES67 Network Interface for Two Audio Outputs
• Two Balanced Mic-Level Outputs on Front-Panel XLR Jacks
• Outputs Equipped with Software-Controlled Attenuator in 1 dB Steps
• Q-SYS Plug-In Available for Configuring in Q-SYS Environment
• Compatible with RDL Network Remote Controls
• High Resolution 24 Bit Digital to Analog Conversion
• Legendary RDL Studio Quality, Low-Noise Performance
• Module is Configured and Adjusted Using RDL CONSOLE or Other Network Control Software
• Fits 60 mm Deep European Electrical Box Using Included Adapter Plate
• Supplied With White Cover Plate and Alternate Black Front-Panel Laminate

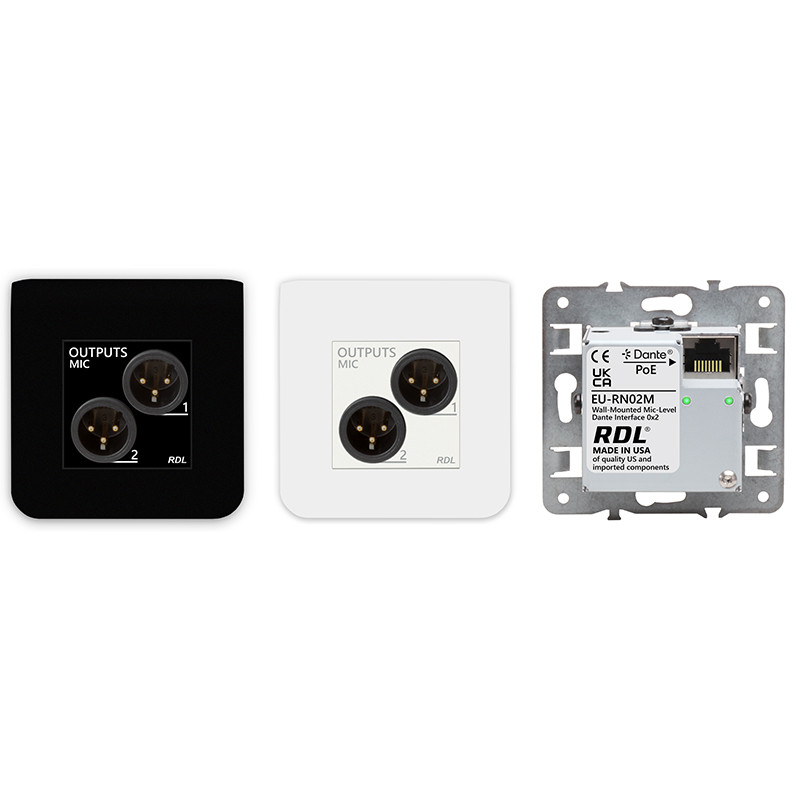

The EU-RN02M is a complete wall-mounted Dante or AES67 audio mic output network interface. It features two balanced XLR mic outputs on the front panel. The module is configured and adjusted using RDL CONSOLE or other network control software. The EU-RN02M fits a standard 60 mm deep European electrical box. The EU-RN02M is PoE powered and is supplied with a white front panel and cover plate. A field-installable black front panel laminate is included with the EU-RN02M.
Two Dante or AES67 audio channels are converted to balanced mic level feeding front-panel XLR jacks. Each output provides balanced -45 dBu for a network digital audio level of -18 dBFS. Each output is equipped with a software-controlled attenuator adjustable in 1 dB steps to a maximum attenuation of 63 dB, then OFF.
Valid PoE power and synchronization to the Dante network are indicated by a green LED visible from the front of the unit.
The EU-RN02M is a professional grade product delivering studio-quality fidelity and low noise performance, coupled through XLR jacks housed in a steel chassis finished with a reverse-printed laminate.
The EU-RN02M’s superior performance specifications make it ideally suited to installations requiring network control and exceptional value in commercial networked audio systems. This full-featured product is engineered and manufactured in America with quality U.S. and imported components for continuous duty in demanding installations. Designed to outperform. Built to last.
Field-replaceable Black Laminate included. Black cover plate not included.
EU-RN02M
Wall-Mounted Mic Output Dante Interface 0 x 2
• EU Series Dante or AES67 Network Interface for Two Audio Outputs
• Two Balanced Mic-Level Outputs on Front-Panel XLR Jacks
• Outputs Equipped with Software-Controlled Attenuator in 1 dB Steps
• Q-SYS Plug-In Available for Configuring in Q-SYS Environment
• Compatible with RDL Network Remote Controls
• High Resolution 24 Bit Digital to Analog Conversion
• Legendary RDL Studio Quality, Low-Noise Performance
• Module is Configured and Adjusted Using RDL CONSOLE or Other Network Control Software
• Fits 60 mm Deep European Electrical Box Using Included Adapter Plate
• Supplied With White Cover Plate and Alternate Black Front-Panel Laminate
The EU-RN02M is a complete wall-mounted Dante or AES67 audio mic output network interface. It features two balanced XLR mic outputs on the front panel. The module is configured and adjusted using RDL CONSOLE or other network control software. The EU-RN02M fits a standard 60 mm deep European electrical box. The EU-RN02M is PoE powered and is supplied with a white front panel and cover plate. A field-installable black front panel laminate is included with the EU-RN02M.
Two Dante or AES67 audio channels are converted to balanced mic level feeding front-panel XLR jacks. Each output provides balanced -45 dBu for a network digital audio level of -18 dBFS. Each output is equipped with a software-controlled attenuator adjustable in 1 dB steps to a maximum attenuation of 63 dB, then OFF.
Valid PoE power and synchronization to the Dante network are indicated by a green LED visible from the front of the unit.
The EU-RN02M is a professional grade product delivering studio-quality fidelity and low noise performance, coupled through XLR jacks housed in a steel chassis finished with a reverse-printed laminate.
The EU-RN02M’s superior performance specifications make it ideally suited to installations requiring network control and exceptional value in commercial networked audio systems. This full-featured product is engineered and manufactured in America with quality U.S. and imported components for continuous duty in demanding installations. Designed to outperform. Built to last.
Field-replaceable Black Laminate included. Black cover plate not included.
