EVID-EC6.2E

EV Ceiling speaker 6.5-in, 70/100V, EVAC model EN54-24, white

EVID-EC6.2E
CEILING SPEAKER 6.5" EVAC WHITE

• Bezel-less design with easy-attach grille
• Front baffle wattage tap adjustment
• Includes tile rail and C-Ring for easy installation
• UL 1480, UL 1480A, EN54-24:2008, UL 2043, CAN/ULC 541:2023, CSA C22.2 No. 205, and IEC 62368-1 certified

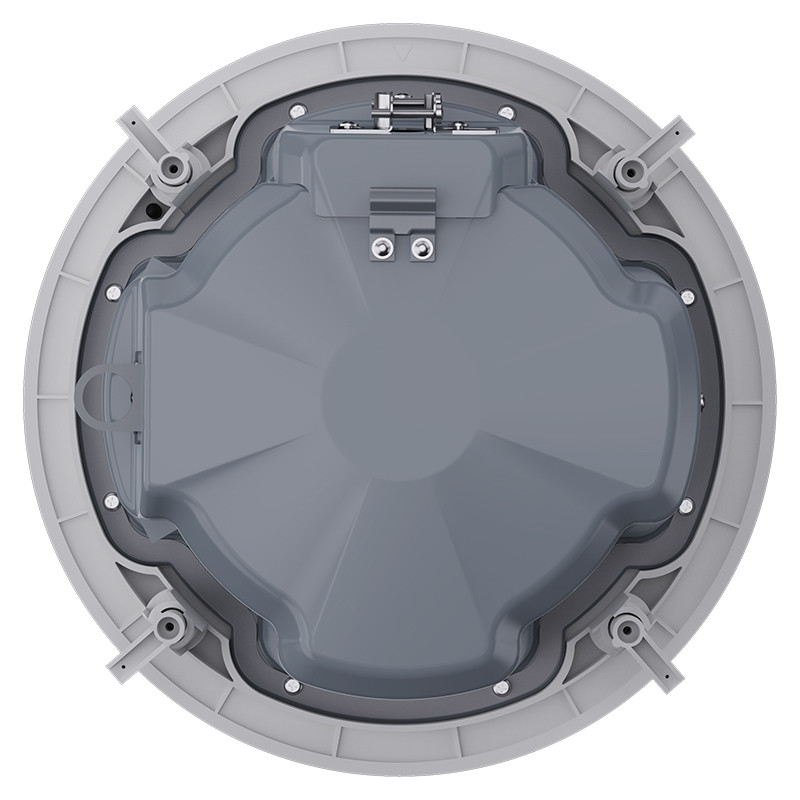

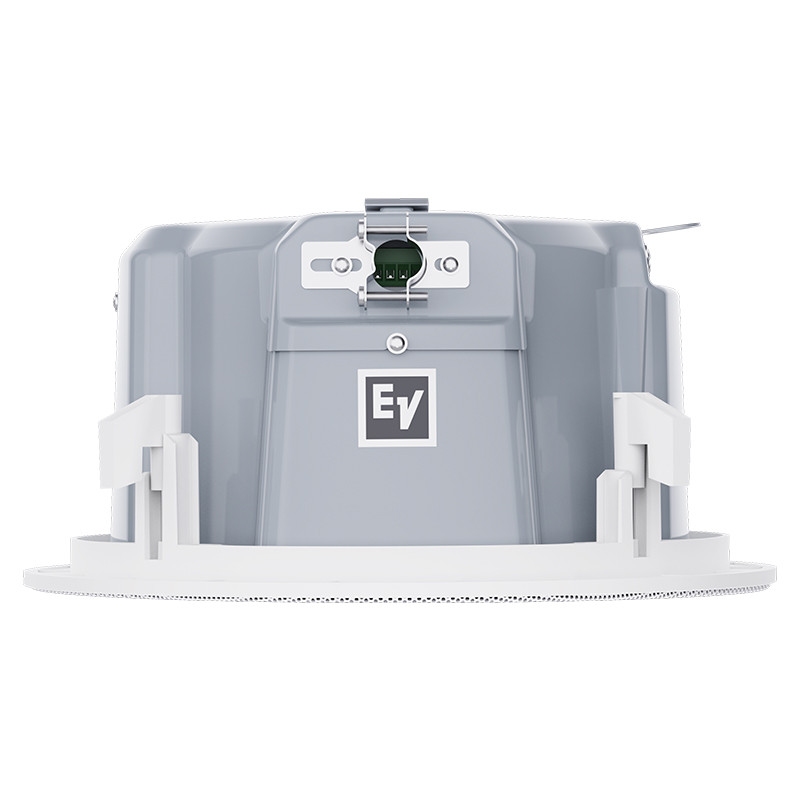

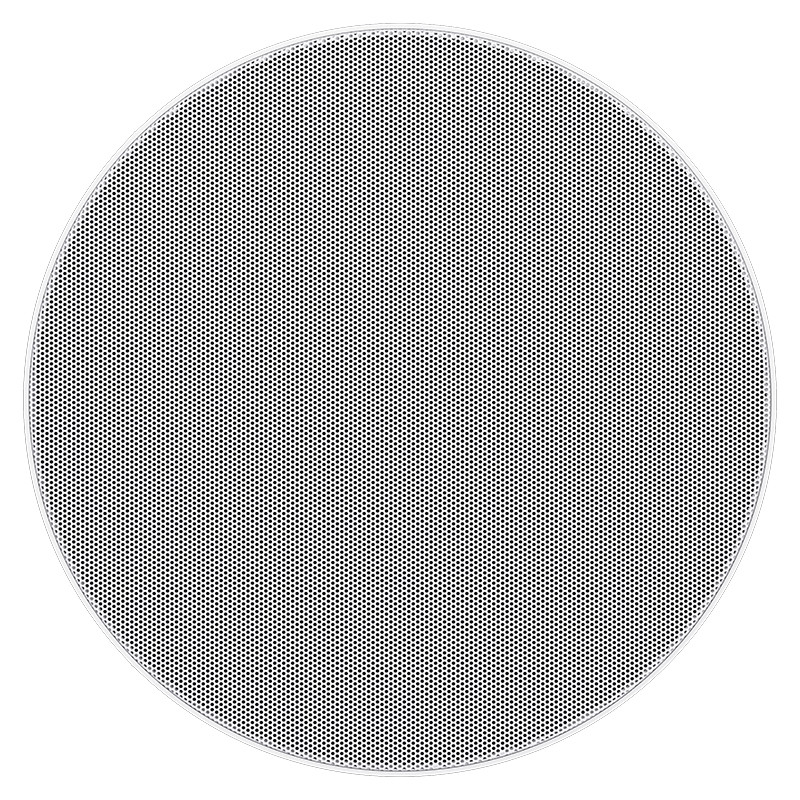

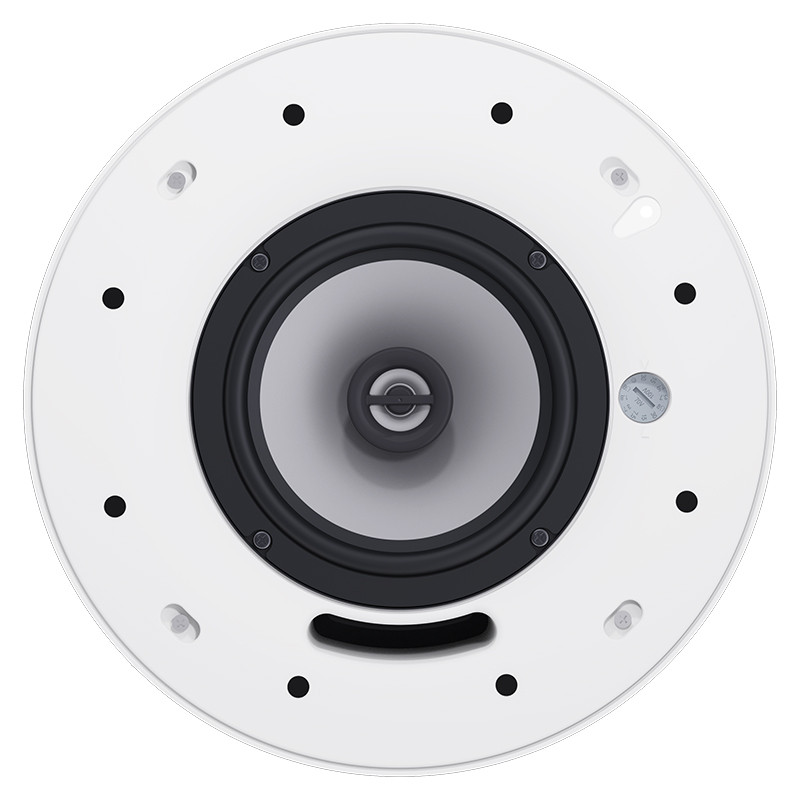

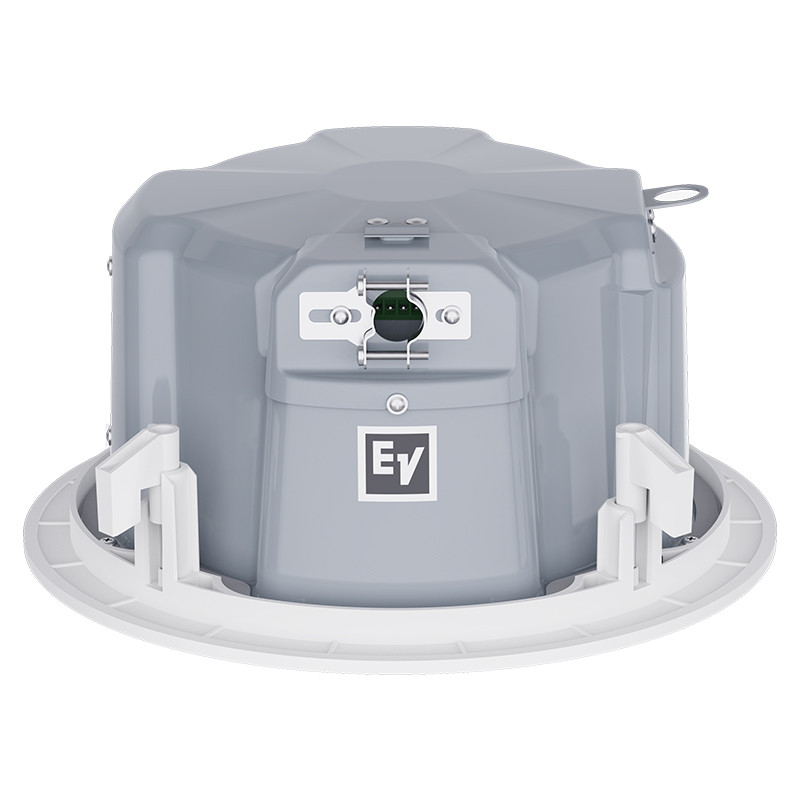

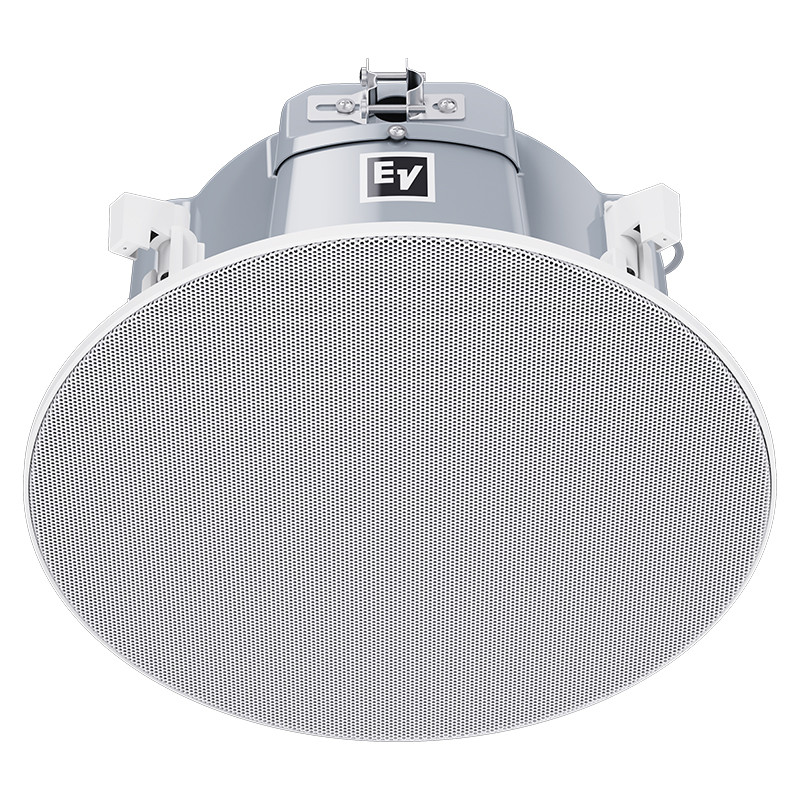

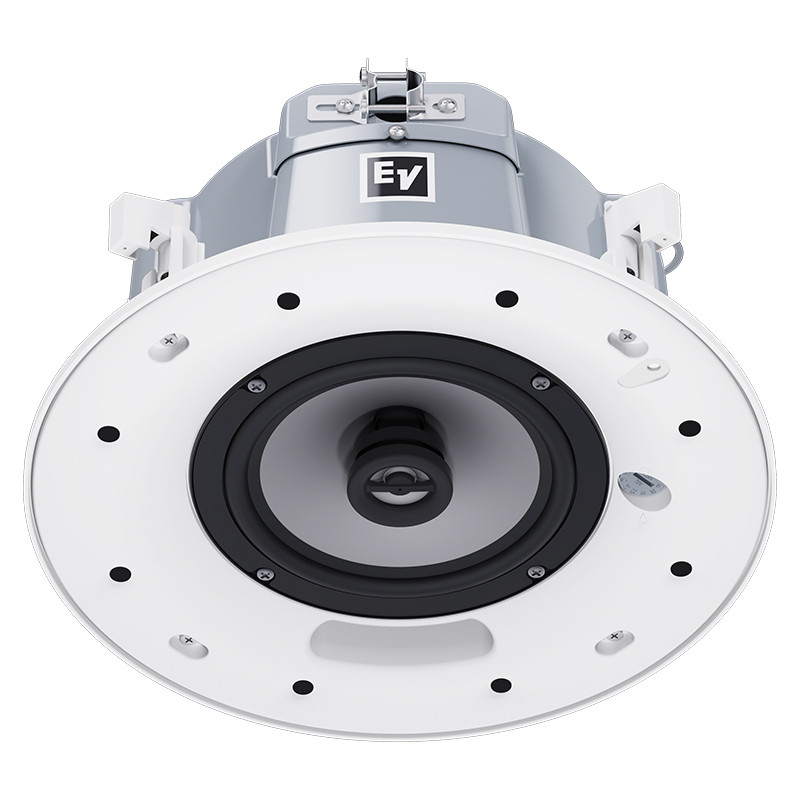

The Electro-Voice EVID-EC6.2E is a complete 6.5-inch coaxial two-way loudspeaker that offers excellent sound quality and outstanding reliability with first-class aesthetics. The EVID-EC6.2E utilizes a transformer that offers a selection of 1.88 (70-V only), 3.75, 7.5, 15 or 30 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8-ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle is constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from heavy gauge coated steel. The low-profile enclosure makes it easy to mount in very tight spaces. A side terminal-cover provides access to a 4-pin terminal block that allows direct connection to the speaker with 12-gauge and 3.3 mm2-wire and provides pass through to additional speakers.

A mounting ring and a tile bridge are included for safe suspension of the EVID-EC6.2E ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles.

The wide range of EVID ceiling speakers has been designed to work together as a complete system in a variety of different ceiling constructions, and to be used in combination with other EVID surface-mount and in-wall speakers.

Specifications:
Frequency range (-10 dB) (Hz): 85 Hz – 20,000 Hz
Maximum SPL (continuous) (dB): 107 dB
Maximum SPL (peak) (dB): 113 dB
Sensitivity (1 W, 1 m): 82 dB SPL 1 W, 1 m
Coverage angle conical (°): 110°
Power handling (continuous) (W): 30 W
Power handling (peak) (W): 120 W
Long term power handling (continuous) (W): 30 W
Long term power handling (peak) (W): 120 W
Nominal impedance (Ω) (Low Z): 8 Ω
Recommended high pass (Hz): 90 Hz
Transformer taps 70 V line (W): 30 W, 15 W, 7.5 W, 3.75 W, 1.88 W
Transformer taps 100 V line (W): 30 W, 15 W, 7.5 W, 3.75 W
LF transducer size (in): 6.5 in
HF transducer size (in): 1 in
Material: Steel
Grille material: Powder coated steel
Connector type: 4-pin Euroblock, Input + Pass through
Wire size (AWG): 12AWG (maximum)
Wire diameter (mm2): 3.3 mm2 (maximum)
Color: White; Customized colors
Color (RAL): RAL 9003 Signal white
Mounting cutout (in): 10.7 in
Mounting cutout (mm): 272 mm
Dimensions (Ø x D) (in): 12.1 in x 6.1 in
Dimensions (Ø x D) (mm): 307.20 mm x 153.8 mm
Mounting depth (in): 5.9 in
Mounting depth (mm): 149 mm
Ceiling thickness (in): 0.5 in - 1.5 in
Ceiling thickness (mm): 12.5 mm - 38 mm
Weight (lb): 22 lb
Weight (kg): 2.5 kg
Shipping weight (lb): 22 lb
Shipping weight (kg): 10 kg
IP rating: IP34
Weatherization: Indoor
Operating temperature (°F): 32 °F – 122 °F
Operating temperature (°C): 0 °C – 50 °C
Safety agency ratings: UL 1480A, safe for use in airhandling spaces per UL 2043, CSA C22.2 No. 205 certified, IEC 62368-1
