FSR 72-inch Slate Raceway

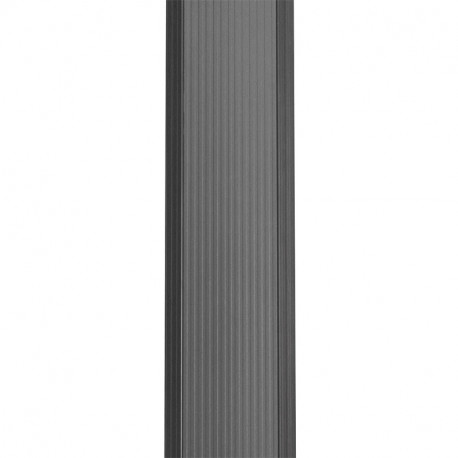

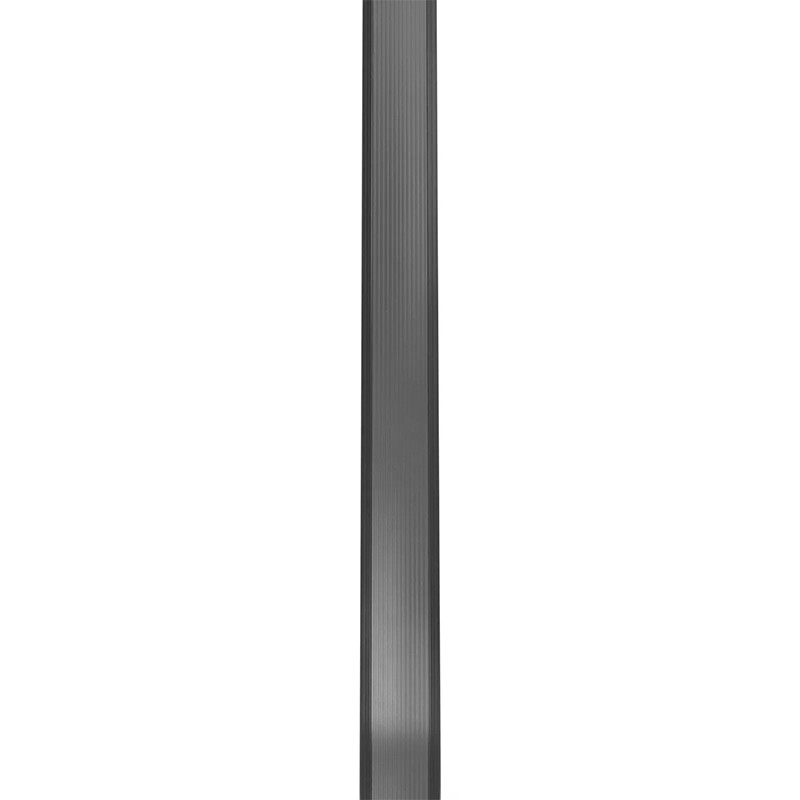

72" Slate Raceway
Smart-Way Floor Raceway

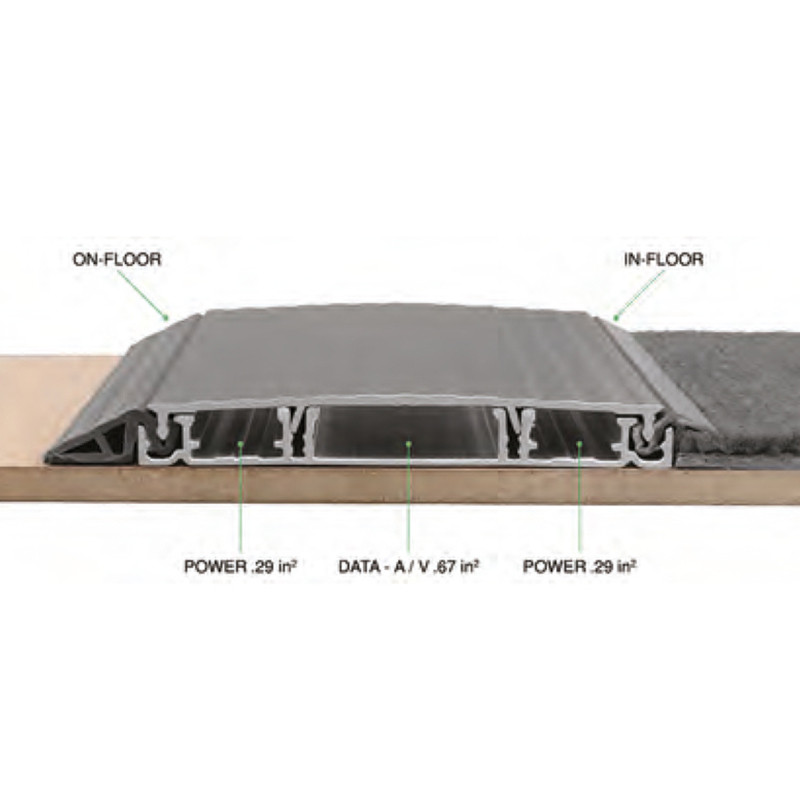

The raceway provides three compartments of capacity and access to power, data and A/V connectivity options. The Smart-Way is a simple, affordable and effective way to clean up messy cables and wires.

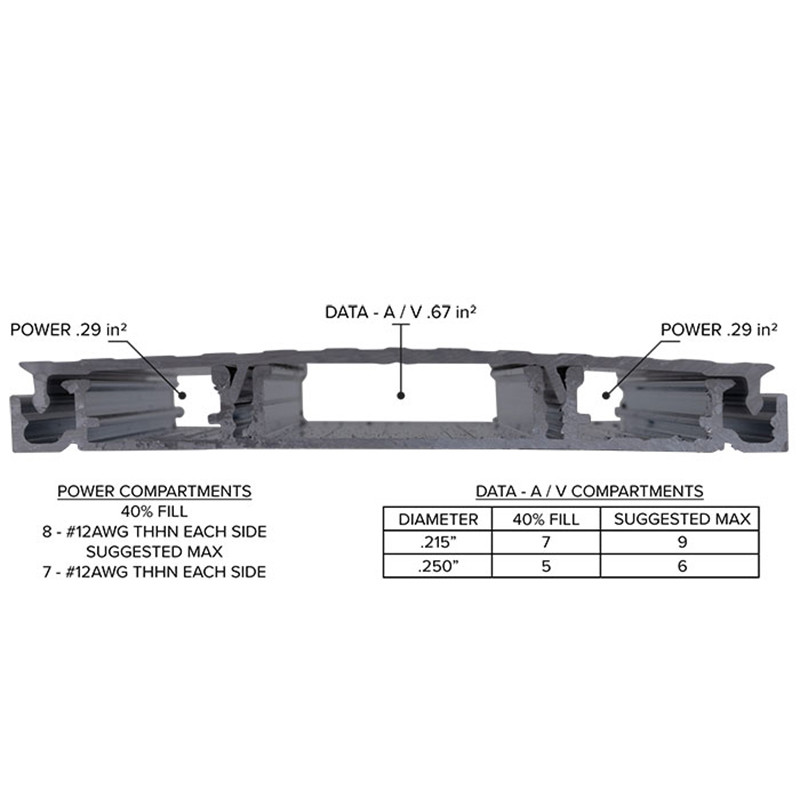

Wire space isn't an issue with the Smart-Way system. The raceway has the capacity to hold (14) 12 AWG (.130" diameter) power conductors, and (9) CAT 5E (.215" diameter), or (5) CAT 6A (.250" diameter) data cables.
Each kit includes a 6’ base and cover, two couplers, moveable wire guides, raceway base edges, and a hex tool for installation. Additional raceway lengths are available in 3-foot, 1-foot and a three part (1', 2', 3') saw-less installation kit (See table on bottom for raceway length information).
IMPORTANT DETAILS
To make ordering easier determine your total linear feet needed in raceway. The raceway comes in 6' sections, but is also available in length's 1', 3' or a three part (1',2',3') saw-less installation kit. Raceways are available in aluminum and slate. *(SW-END-SLT) End stop is required at the end of each raceway.
For ease of removing the raceway cover we offer a cover removal tool (Item 18277). *Sold Separately*
72" Slate Raceway
Smart-Way Floor Raceway
The raceway provides three compartments of capacity and access to power, data and A/V connectivity options. The Smart-Way is a simple, affordable and effective way to clean up messy cables and wires.
Wire space isn't an issue with the Smart-Way system. The raceway has the capacity to hold (14) 12 AWG (.130" diameter) power conductors, and (9) CAT 5E (.215" diameter), or (5) CAT 6A (.250" diameter) data cables.
Each kit includes a 6’ base and cover, two couplers, moveable wire guides, raceway base edges, and a hex tool for installation. Additional raceway lengths are available in 3-foot, 1-foot and a three part (1', 2', 3') saw-less installation kit (See table on bottom for raceway length information).
IMPORTANT DETAILS
To make ordering easier determine your total linear feet needed in raceway. The raceway comes in 6' sections, but is also available in length's 1', 3' or a three part (1',2',3') saw-less installation kit. Raceways are available in aluminum and slate. *(SW-END-SLT) End stop is required at the end of each raceway.
For ease of removing the raceway cover we offer a cover removal tool (Item 18277). *Sold Separately*
