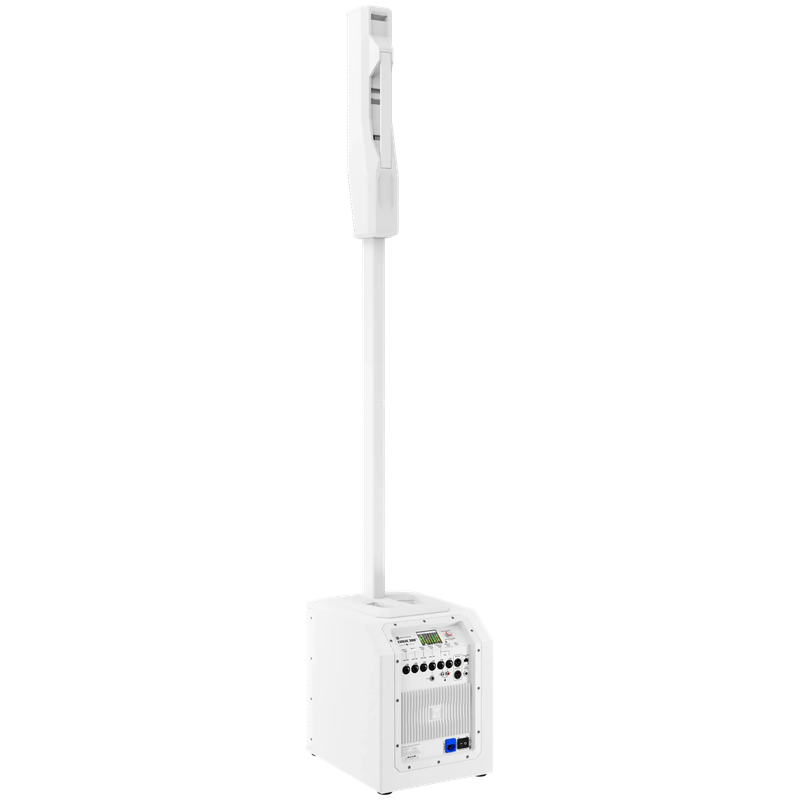

EV Portable Column System, 1500W, Bluetooth, DSP, Mixer - White
EVOLVE 30M G2
10" Portable Column Loudspeaker System with Integrated Mixer, Powered by Dynacord
All the benefits of an EVOLVE column in a sleek, super-portable body. EVOLVE 30 G2 is the latest generation of the EVOLVE column loudspeaker family. It comes with a built-in 8-channel digital mixer, wirelessly controlled via the QuickSmart App. While keeping EVOLVE’s ease of assembly, EVOLVE 30 G2 improves on the acoustics, delivering even coverage, more SPL, and deeper, cleaner bass.
Like every EVOLVE G2 model, it features extended Bluetooth range, switchable 48 V phantom power, and QuickSmart Link for stereo setups. In a compact, lightweight package, it’s built for the evolving needs of professional users including DJs, bands, production companies, event organizers, and venues.
Why EVOLVE
Up in an Instant
Magnet-seated pole and gravity-held column connect by hand, no tools.
Fills the Room Evenly
120° horizontal by 40° down-tilted vertical covers sitters and standers.
Hits Hard for Its Size
1,500W amp and a 10" sub provide deep bass and optimum sound quality for events with up to 150 attendees.
Dial It in Fast
QuickSmartDSP presets (Music, Live, Speech, Club) plus 3-band EQ and 5 user presets.
Run It from Your Phone
QuickSmart App controls multiple systems over Bluetooth.
Bag It and Go
Two-piece distance bar and column array pack conveniently into the included backpack.
SAME SIGNATURE SOUND, WITH MORE OUTPUT
Under the hood, the G2 models answer the most consistent request from the EVOLVE community by raising maximum SPL to 125 dB on the 30M G2 and 129 dB on the 50 and 50M G2 models. That extra headroom covers larger rooms and fuller dance floors, while the precise 120° x 40° coverage pattern delivers even, detailed sound to every listener.
Upgrades in all the right places
EVOLVE 30M G2 retains the familiar small footprint, lightweight transport, and the ultra-fast setup that gets a system show-ready in moments.

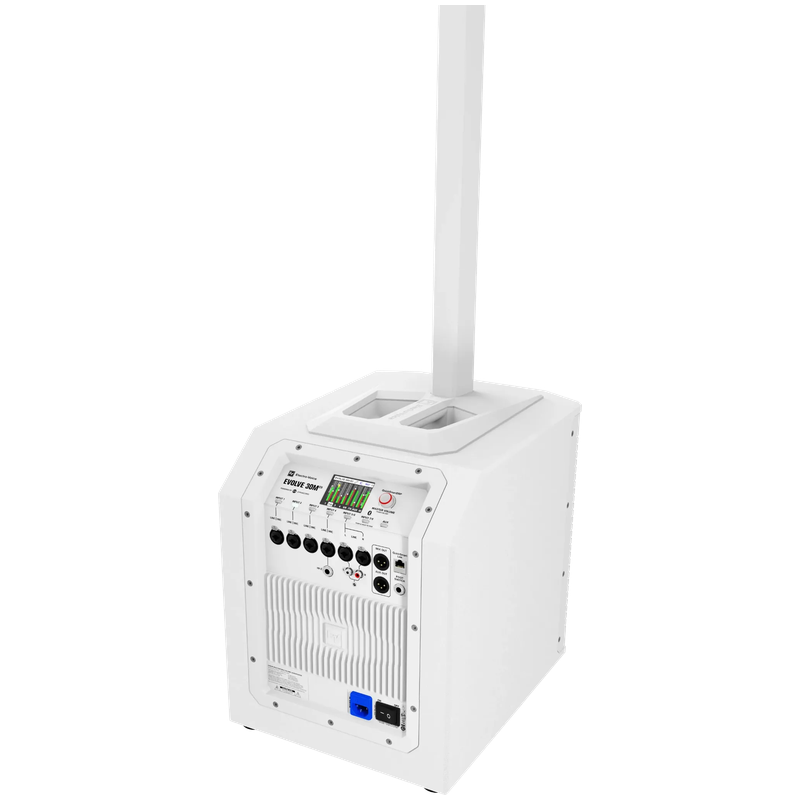

1. Take a look
Large 2.8-inch color LCD screen helps you access and control upgraded DSP features.

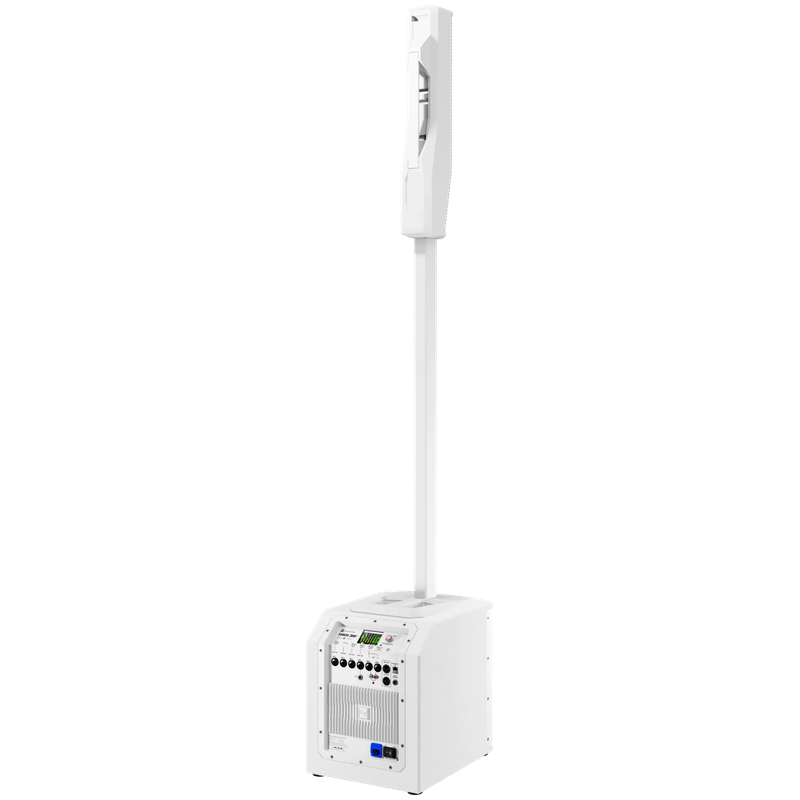

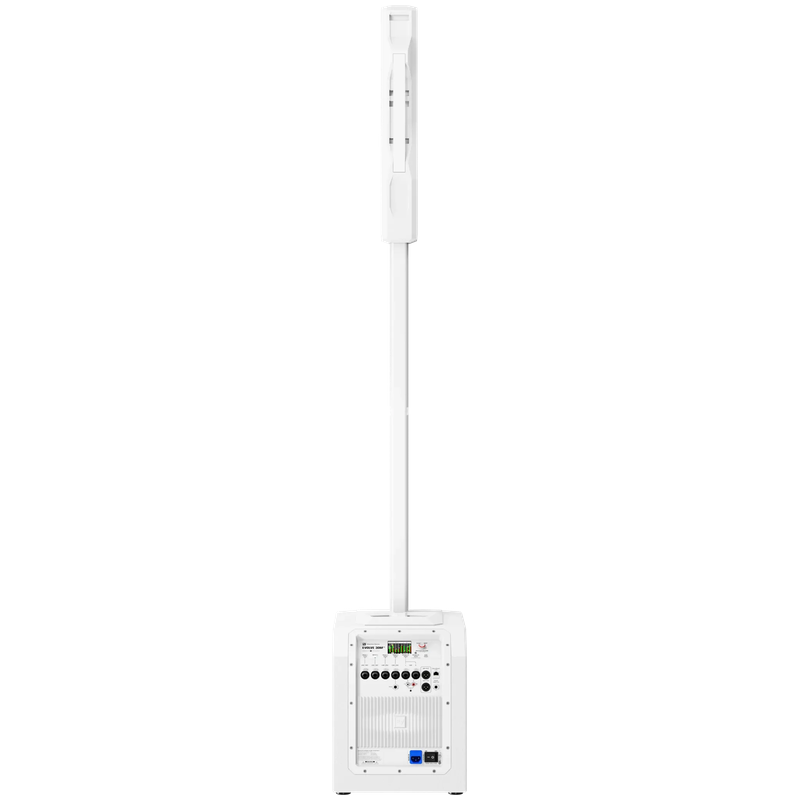

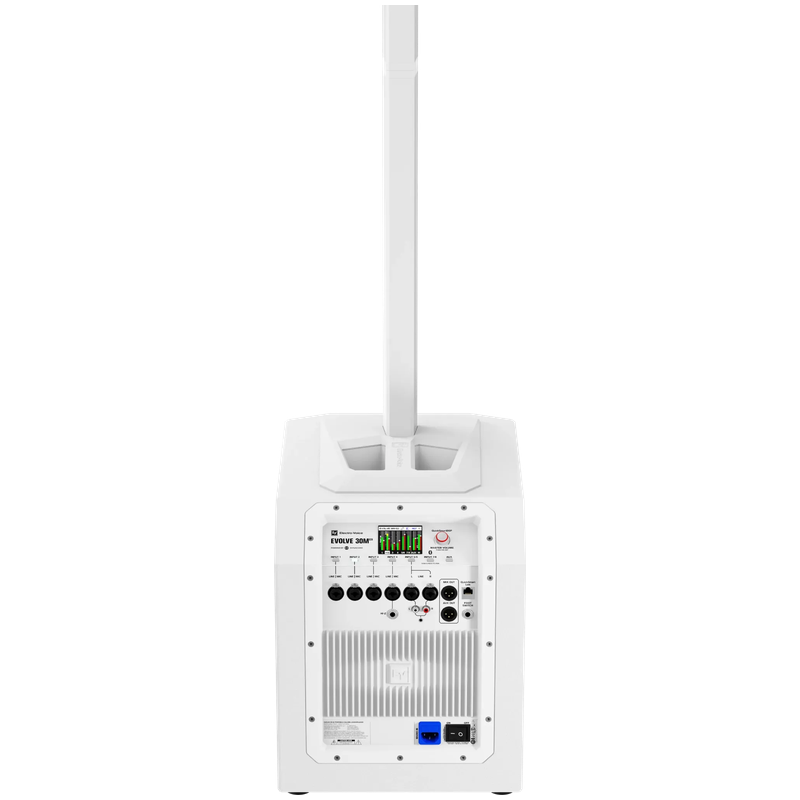

2. Party in the back
Industry standard connectors for microphones and line-level signals, including XLR/TRS combo jacks, stereo RCA/3.5-mm line input, footswitch FX control, and Bluetooth true wireless stereo (TWS) streaming.

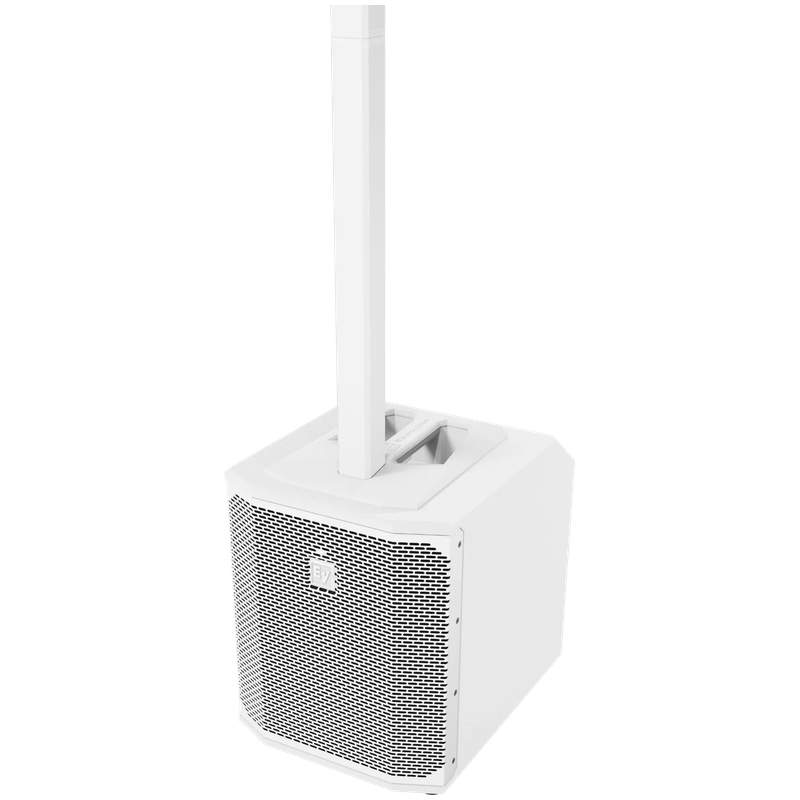

3. High-fidelity & high-output bass
Subwoofer laminar flow vent design enhances the low-frequency output and efficiency.
4. Grab and go
Portability of the system improved by a new ergonomic top handle and redesigned soft cover (sold separately).
5. App control
EVOLVE 30M G2 is integrated into the QuickSmart App ecosystem, which allows the user to control it as part of a system with other Bluetooth-enabled Electro-Voice portable speakers.
Specifications
Acoustic Performance
• Max SPL: 125
• Frequency Response: 51 Hz - 20 KHz
• Frequency Range (-10 dB): 45 Hz - 20 KHz
• Coverage Angle: 120 × 40
Transducers & Drivers
• LF transducer size (in): 10-inch woofer
• HF transducer size (in): 2.8-inch neodymium drivers (6)
Power & Amplification
• Powered: true
• Total Output Power*: 1500 W
• LF power handling (continuous) (W): 750 W
• HF power handling (continuous) (W): 750 W
• Operating Voltage / Power: 100 - 240 VAC, 50 - 60 Hz, 1.0 - 0.5 A
Connectivity & I/O
• Phantom Power: 48 V
• (4) XLR/TRS combo jack mic / line inputs with switchable 48V phantom power
• ¼-inch Hi-Z input
• XLR/TRS combo jack stereo line input
• Stereo RCA line input
• 3.5 mm stereo jack input
• XLR Mix out
• XLR Aux out
• RJ45 QuickSmart Link connector
• Bluetooth Stereo input with TWS
• ¼-inch footswitch control jack input
Construction & Materials
• Color: Black or white
• Grille: Steel with black or white powder coat
• Case Material: Sub: 15 mm plywood, Column: Composite, Pole: Aluminum
Dimensions & Weight
• Net weight: 43.54 lb (19.75 kg)
• Shipping Weight: 54.34 lb (24.65 kg)
• Dimensions (H x W x D) (in): 78.54 x 13.07 x 17.01
• Dimensions (H x W x D) (mm): 1995 x 332 x 432
Identification
• Series / Family: EVOLVE
• Material Number: Z.01X.002.622
Software
• Software & apps: QuickSmart App
