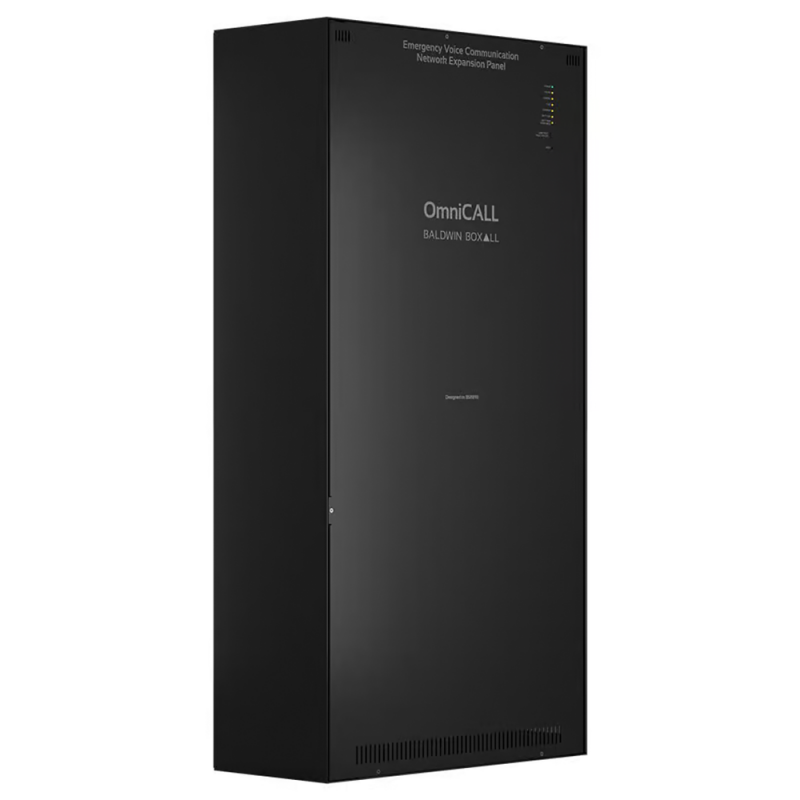

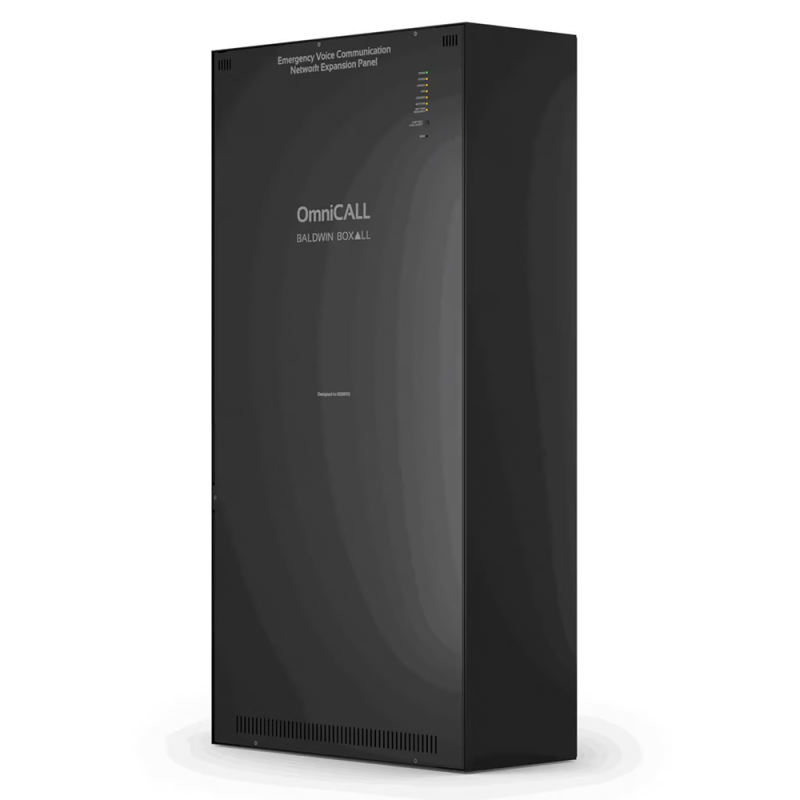

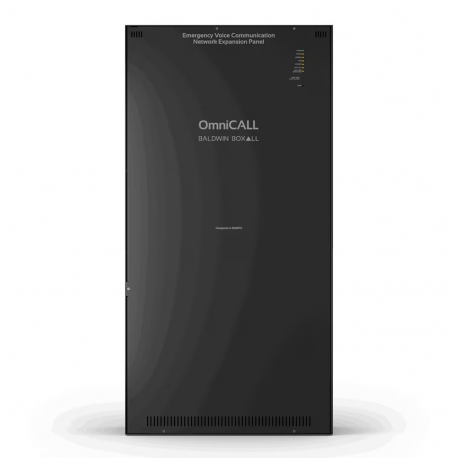

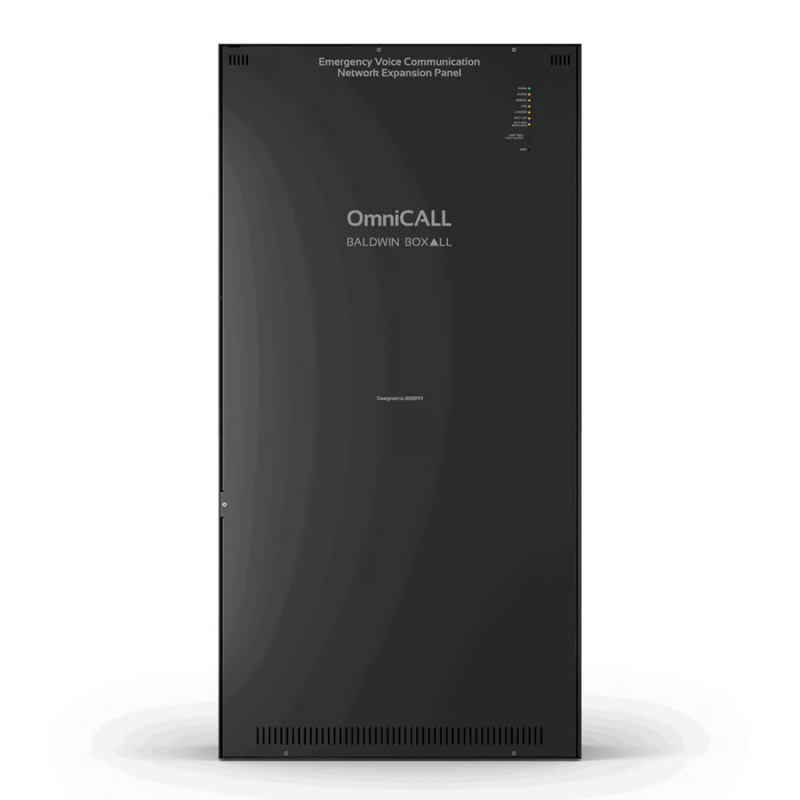

OmniCALL – Network Expansion Panel (128 way)
The OmniCALL Expansion Panel connects to an OmniCALL Master Station to allow the addressable Emergency Voice Communication (EVC) system to grow with a further 128 outstations.
The OmniCALL OCEPL is designed for larger installations where significant system growth, building separation or campus-wide networking is required.
It extends OmniCALL control panels across multiple locations while maintaining full system monitoring and fault reporting. It operates without a user interface or handset, acting purely as a networked expansion panel within the system architecture.
High-Capacity Configuration
• Supports up to 128 outstations and 128 assistance alarms when fully populated
• One line card fitted as standard
• Capacity for up to three additional line cards
• Each line card configurable as:
• One loop supporting up to 32 outstations or
• Four radial circuits with one outstation per radial
• With four cards installed:
• Up to four loops of 32 outstations or
• Up to 16 radial circuits
• Or a mix of loop and radial circuits in any configuration
Networked for Complex Sites
• Up to 100 OmniCALL panels in one network
• Typical total capacity of 512 outstations and 512 assistance alarms
• Larger capacities available on request
• Built-in copper networking using 4-core FP200 cabling up to 200 metres per span
• Optional fibre interface modules:
• Single mode up to 4km
• Multi mode up to 2km
Designed for Reliability
• Internal batteries sized to system requirements
• Fully monitored system operation
• Two-core non-polarity-dependent wiring
OCEPL provides high-capacity expansion while maintaining clarity, compliance and dependable system performance.
Technical Data
Power Supply; 85-264VAC
Power Consumption: 75W
Humidity Range: 95% non-condensing
Temperature Range: -5°C to +40°C
Indicators: 5″ TFT plus fault LEDs
Finish: RAL 9005
Dimensions: 430 x 847 x 190 mm (W x H x D)
Bezel dimensions: 470 x 887 mm (W x H)
Mounting height (to centre): 1400-1500 mm
Knockouts/cable entry points: 20 x 30 mm (Top)
Compliance:
• BS 5839-9: Code of practice for design, installation and maintenance of emergency voice communication systems
• BS 8893: Emergency voice communication (EVC) systems. Components. Specification.
• BS 8300-1: Code of practice for the design of an accessible and inclusive built environment
• BS 9991: Fire safety in the design, management and use of residential buildings
• BS 9999: Fire safety in the design, management and use of buildings
OmniCALL – Network Expansion Panel (128 way)
The OmniCALL Expansion Panel connects to an OmniCALL Master Station to allow the addressable Emergency Voice Communication (EVC) system to grow with a further 128 outstations.
The OmniCALL OCEPL is designed for larger installations where significant system growth, building separation or campus-wide networking is required.
It extends OmniCALL control panels across multiple locations while maintaining full system monitoring and fault reporting. It operates without a user interface or handset, acting purely as a networked expansion panel within the system architecture.
High-Capacity Configuration
• Supports up to 128 outstations and 128 assistance alarms when fully populated
• One line card fitted as standard
• Capacity for up to three additional line cards
• Each line card configurable as:
• One loop supporting up to 32 outstations or
• Four radial circuits with one outstation per radial
• With four cards installed:
• Up to four loops of 32 outstations or
• Up to 16 radial circuits
• Or a mix of loop and radial circuits in any configuration
Networked for Complex Sites
• Up to 100 OmniCALL panels in one network
• Typical total capacity of 512 outstations and 512 assistance alarms
• Larger capacities available on request
• Built-in copper networking using 4-core FP200 cabling up to 200 metres per span
• Optional fibre interface modules:
• Single mode up to 4km
• Multi mode up to 2km
Designed for Reliability
• Internal batteries sized to system requirements
• Fully monitored system operation
• Two-core non-polarity-dependent wiring
OCEPL provides high-capacity expansion while maintaining clarity, compliance and dependable system performance.
Technical Data
Power Supply; 85-264VAC
Power Consumption: 75W
Humidity Range: 95% non-condensing
Temperature Range: -5°C to +40°C
Indicators: 5″ TFT plus fault LEDs
Finish: RAL 9005
Dimensions: 430 x 847 x 190 mm (W x H x D)
Bezel dimensions: 470 x 887 mm (W x H)
Mounting height (to centre): 1400-1500 mm
Knockouts/cable entry points: 20 x 30 mm (Top)
Compliance:
• BS 5839-9: Code of practice for design, installation and maintenance of emergency voice communication systems
• BS 8893: Emergency voice communication (EVC) systems. Components. Specification.
• BS 8300-1: Code of practice for the design of an accessible and inclusive built environment
• BS 9991: Fire safety in the design, management and use of residential buildings
• BS 9999: Fire safety in the design, management and use of buildings
