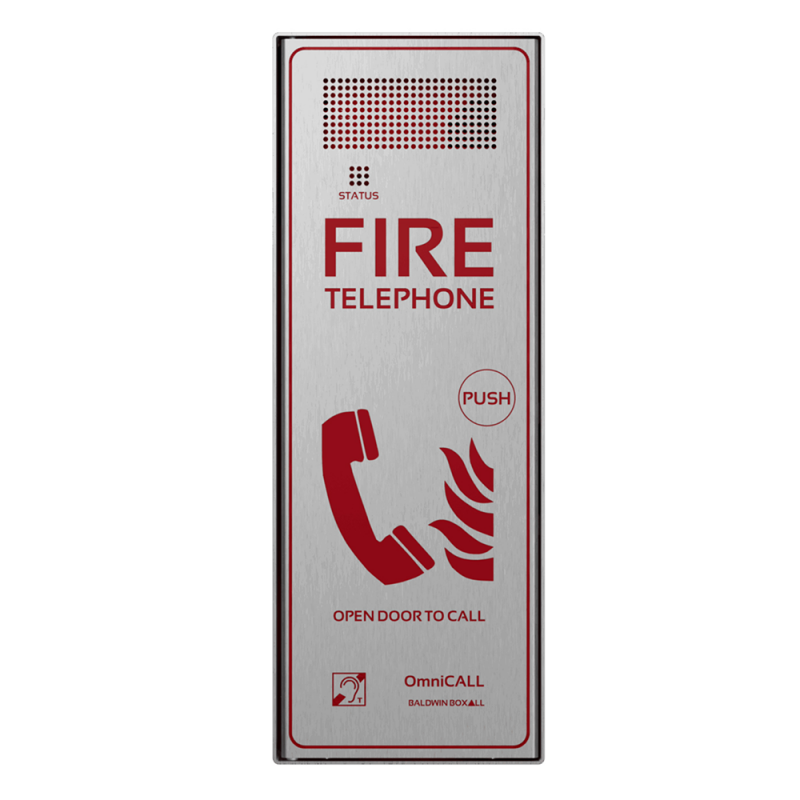

OmniCALL – Fire Telephone (Type A outstation)
The OmniCALL fire telephone outstation with push door access, built to give emergency teams clear, reliable voice communication during an incident.
The OmniCALL OCAFRP fire telephone gives emergency personnel fast, dependable communication with the control point.
The push door makes it quick to access in an emergency, while the handset delivers clear two-way speech so operators can share instructions without confusion.
Key Benefits
• Full-duplex speech for clear two-way voice communication in emergencies
• Push door access for straightforward operation
• Easy-to-identify red finish with clear labelling
• Supports better accessibility with a hearing-aid-compatible handset
• Ability to conference call with up to four Type A or Type C outstations via the Master Station
Technical Data
Power Supply: 15-36V
Power Consumption: 30mA @ 24V
Humidity Range: 0-90% non-condensing
Temperature Range: -5°C to +40°C
Indicators: Status
Finish: RAL 3020 /Stainless Steel
Dimensions: 130 x 350 x 80 mm (W x H x D)
Bezel dimensions: 170 x 390 mm (W x H)
Bezel cutout: 138 x 358 mm (W x H)
Mounting height (to centre): 1300-1400 mm
Knockouts/cable entry points: 20 mm
Audio:
• Full-duplex speech
Wiring:
• Can be wired for either loop or radial connection
Compliance:
• BS 5839-9: Code of practice for design, installation and maintenance of emergency voice communication systems
• BS 8893: Emergency voice communication (EVC) systems. Components. Specification.
• BS 8300-1: Code of practice for the design of an accessible and inclusive built environment
• BS 9991: Fire safety in the design, management and use of residential buildings
• BS 9999: Fire safety in the design, management and use of buildings
