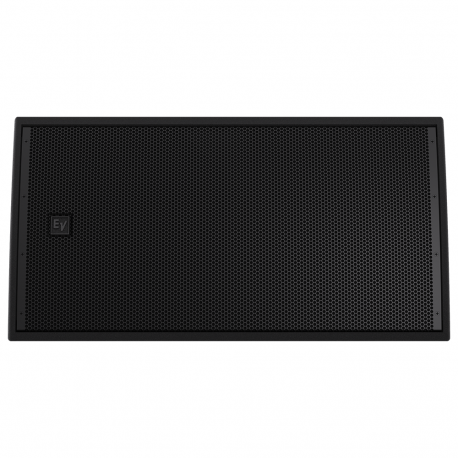

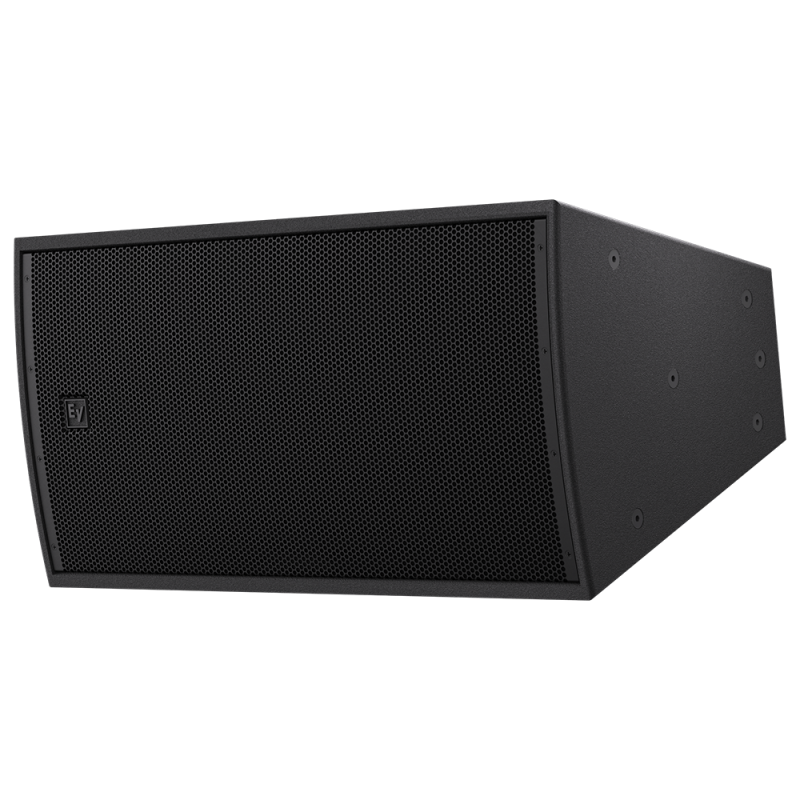

EV 12-in 2-way Point-Source, 120° x 60°, black, IP55 outdoor
EVF G2
FRONT-LOADED FLEXIBILITY
The redesigned EVF Series lineup comprises three models: the EVF-12 and EVF-15 two-way front-loaded loudspeakers, and the EVF-215S dual 15-inch subwoofer. The two-way models deliver higher maximum SPL, improved low-frequency output and enhanced acoustic consistency compared to their predecessors. Newly developed crossover and transducer designs improve clarity and definition while ensuring closer sonic matching between the EVF-12 and EVF-15.
The EVF-12 introduces a new 120x60 degrees horn pattern, expanding coverage flexibility for short- and medium-throw applications. Both fullrange models now support a wider range of mounting solutions, including compatibility with the EVC-WB wall bracket and common omni-mount and multi-mount systems.
The EVF-215S subwoofer benefits from new processing presets that deliver up to 3 dB more output at 40 Hz compared to the existing generation. Larger triangular ports improve airflow and reduce turbulence at high output levels. A dual mode impedance switch allows operation in either single 4 Ω or dual 8 Ω configurations, increasing flexibility for system design and amplifier channel allocation.
EVF-12 G2
• New EV transducers and low-loss crossover, nextgen low latency FIR presets with flat phase response, and stable 6.4 Ω minimum impedance
• Indoor and outdoor (FW) options available
• Consistent pattern control ensures seamless arrayed performance

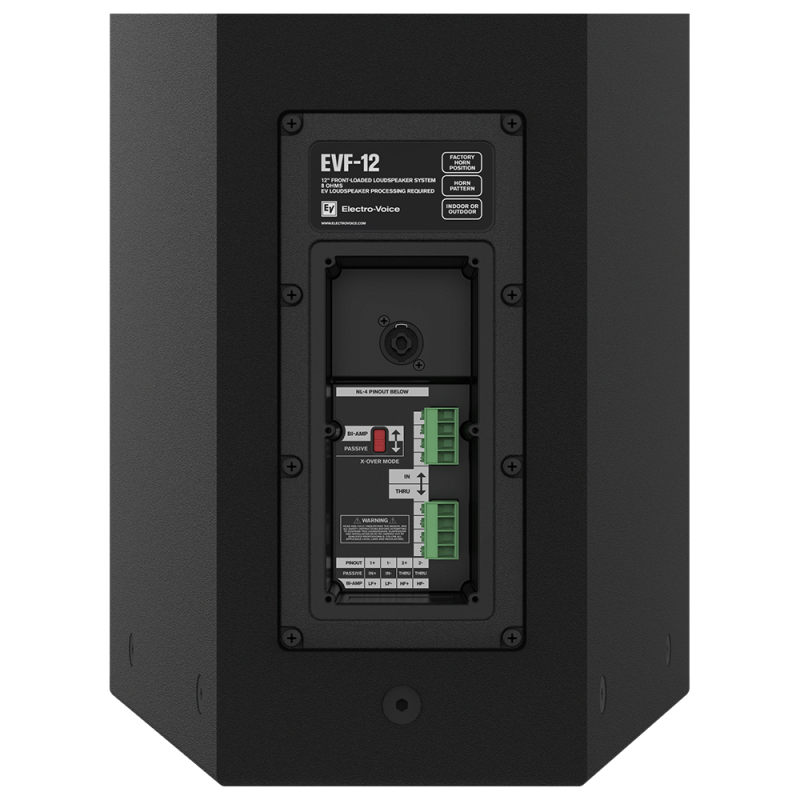

• Removable Euroblock connections and built-in NL4-connection, and new mounting option for fullrange models
• Updated grille design withstands high-SPLs while wet, and is fully front-serviceable
Introducing the long-anticipated second-generation of EVF loudspeaker from Electro-Voice. EV’s most versatile pointsource lines for short to medium-throw applications launched in 2008 is now updated to perform even better in all point-source projects.
From mid-sized stadiums, performing arts spaces, and theaters, to high-SPL music venues or houses of worship, EVF G2 has been fully redesigned with modern components and processing to elevate the quality of an installation at a better value than ever before.
While EVF G2 inherit external dimensions from its 1stgeneration equivalent, every other aspect has been redesigned from scratch for better performance. Completely new in-house EV transducers, low-loss crossovers, EV’s highest performance HF horns ever, flat-phase FIR presets with <10ms of system latency, new ergonomic wiring input panels, and so on.
Every detail of each model has been carefully considered to deliver not just a light refresh but a reimagining of how much performance is possible from a two-way loudspeaker at this price class.

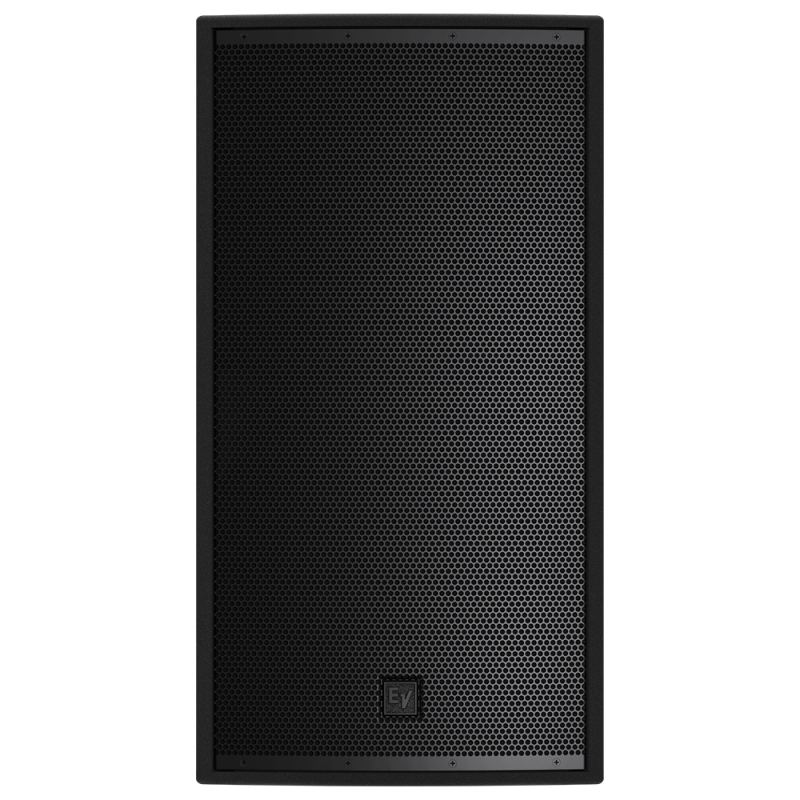

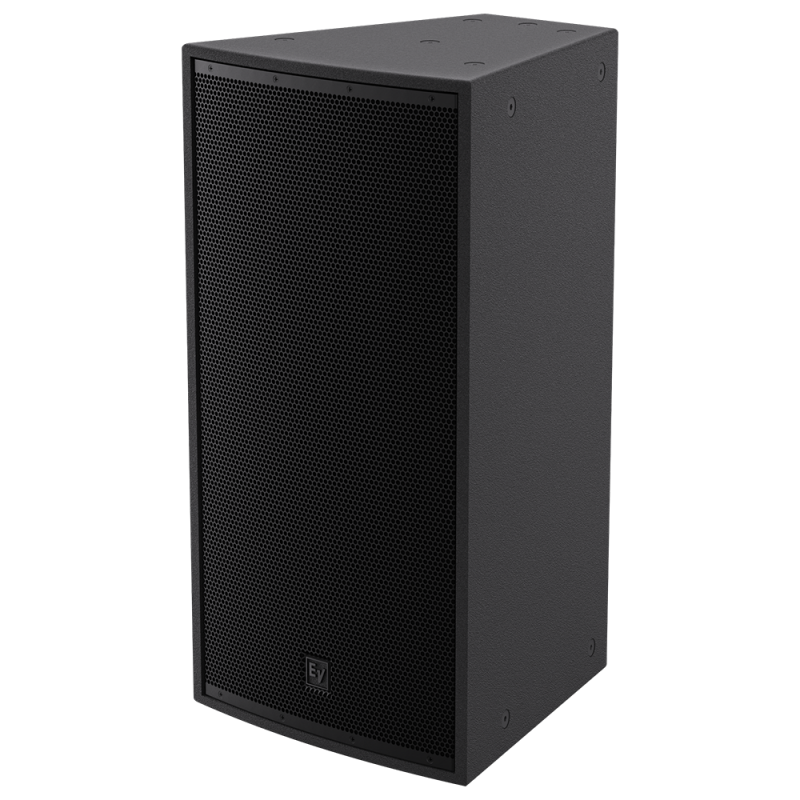

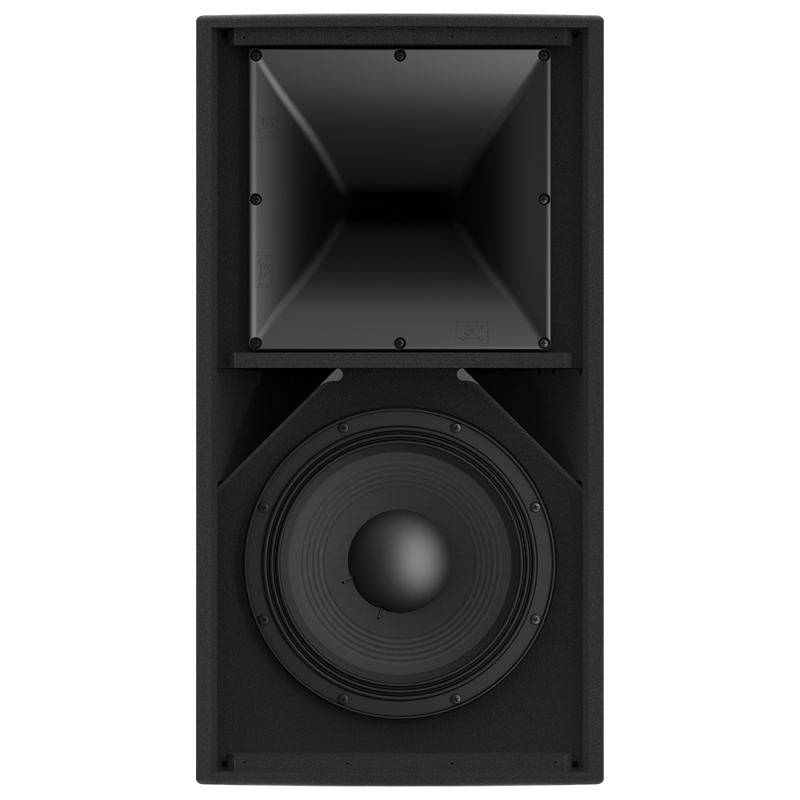

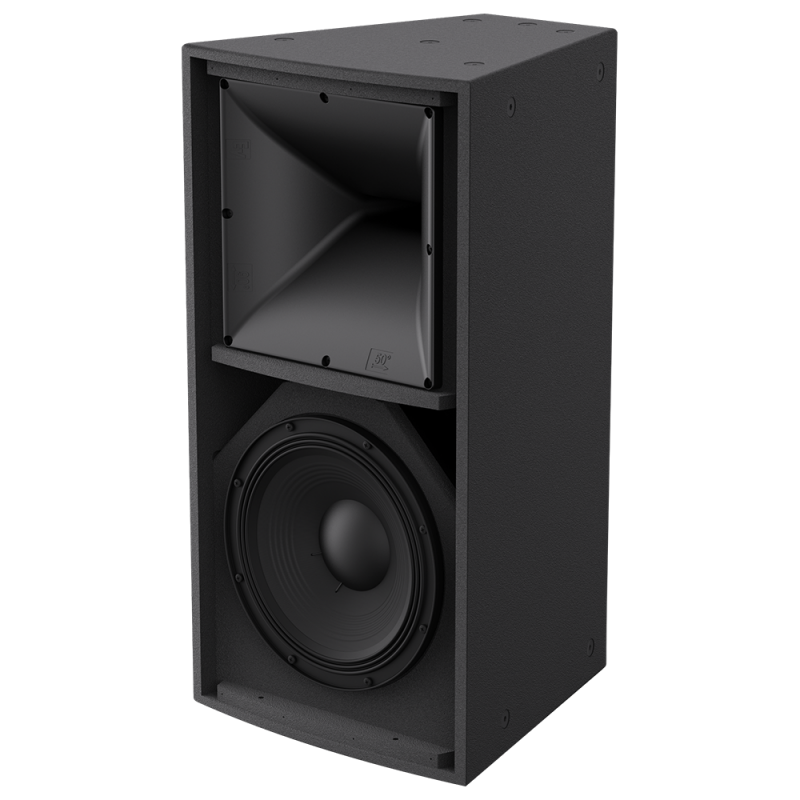

EVF-12 G2 is a high-performance full-range loudspeaker, available in five coverage patterns: 60° x 40°, 60° x 60°, 90° x 50°, 90° x 90° and 120° x 60°.
Provided in black and white colors, EVF-12 G2 also offers 10 fully-weatherized loudspeakers certified to IP55. This water and dust protection is valid with the moisture resistant cover installed and a minimum 5° down tilt. Fully weatherized models are also able to handle full exposure to the elements, including high salt marine environments.
The new single-step polyurea paint provides a consistent, higher performance exterior across multiple product families. The brand new white paint offers reliable UV performance and bright RAL9003 color.

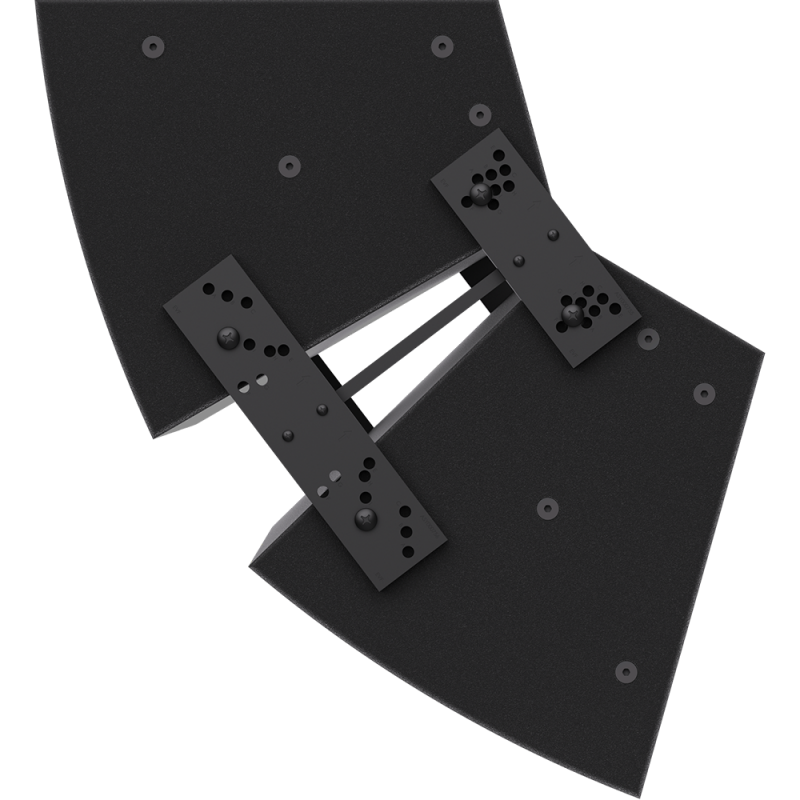

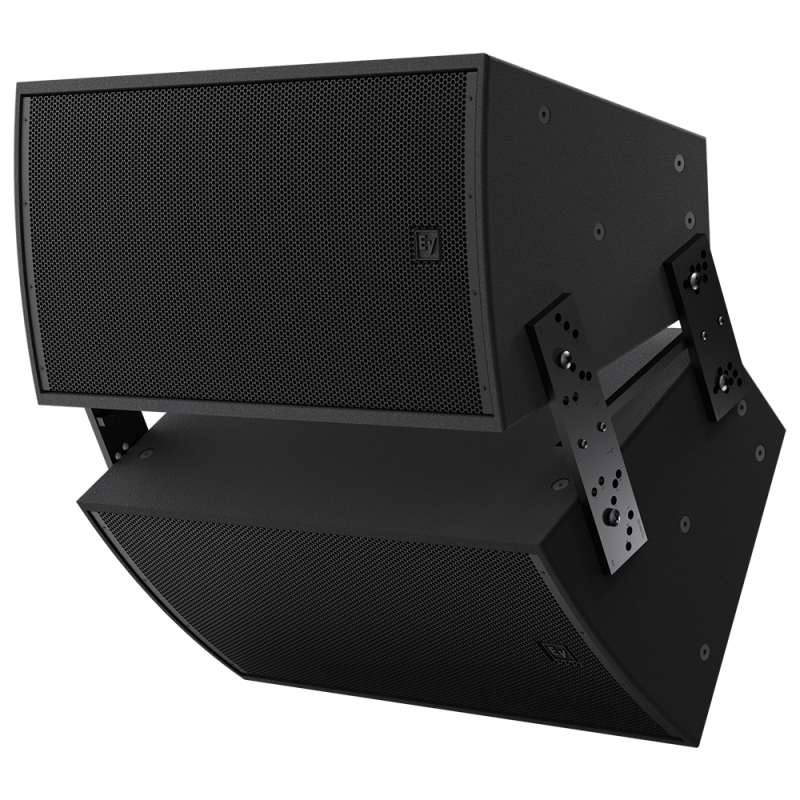

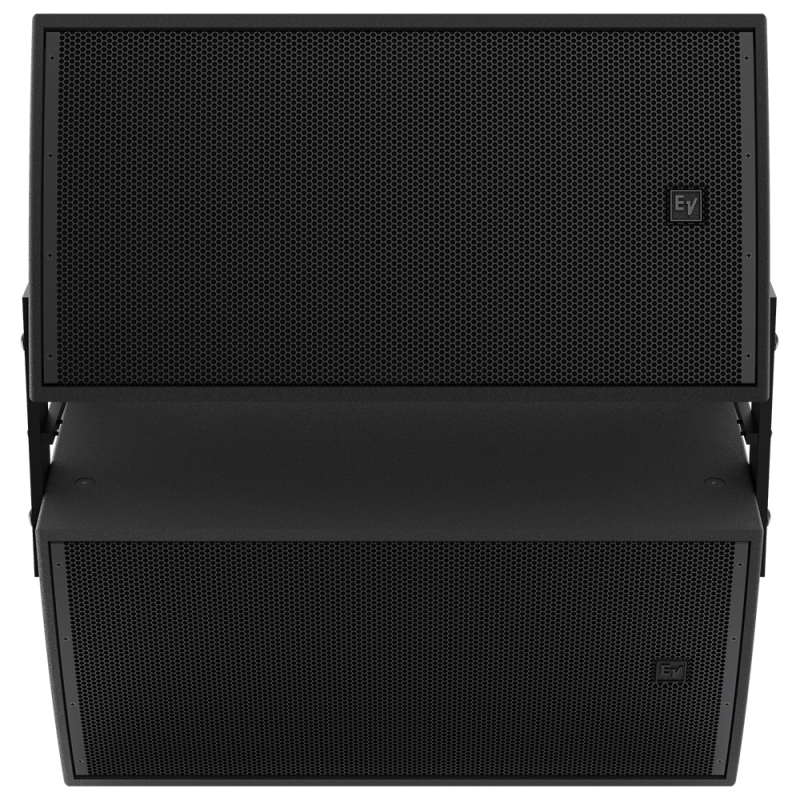

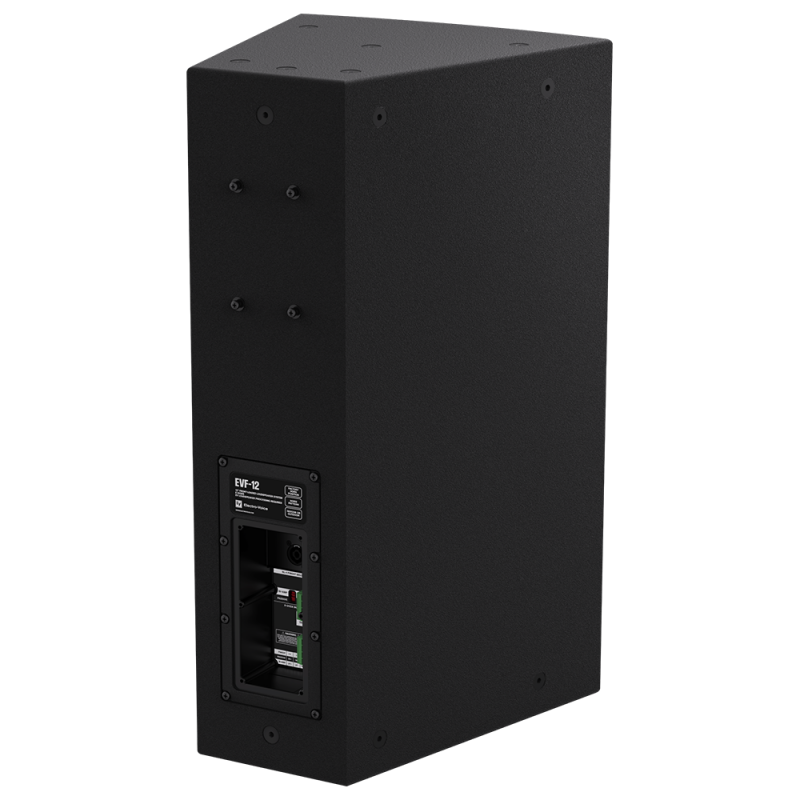

Suspension options include U-brackets, wall brackets, eyebolts and rigging kits. Four Omni-mount points on the rear of the enclosure also provide on-cabinet mounting option for compatible accessories.
EVF G2
FRONT-LOADED FLEXIBILITY
The redesigned EVF Series lineup comprises three models: the EVF-12 and EVF-15 two-way front-loaded loudspeakers, and the EVF-215S dual 15-inch subwoofer. The two-way models deliver higher maximum SPL, improved low-frequency output and enhanced acoustic consistency compared to their predecessors. Newly developed crossover and transducer designs improve clarity and definition while ensuring closer sonic matching between the EVF-12 and EVF-15.
The EVF-12 introduces a new 120x60 degrees horn pattern, expanding coverage flexibility for short- and medium-throw applications. Both fullrange models now support a wider range of mounting solutions, including compatibility with the EVC-WB wall bracket and common omni-mount and multi-mount systems.
The EVF-215S subwoofer benefits from new processing presets that deliver up to 3 dB more output at 40 Hz compared to the existing generation. Larger triangular ports improve airflow and reduce turbulence at high output levels. A dual mode impedance switch allows operation in either single 4 Ω or dual 8 Ω configurations, increasing flexibility for system design and amplifier channel allocation.
EVF-12 G2
• New EV transducers and low-loss crossover, nextgen low latency FIR presets with flat phase response, and stable 6.4 Ω minimum impedance
• Indoor and outdoor (FW) options available
• Consistent pattern control ensures seamless arrayed performance
• Removable Euroblock connections and built-in NL4-connection, and new mounting option for fullrange models
• Updated grille design withstands high-SPLs while wet, and is fully front-serviceable
Introducing the long-anticipated second-generation of EVF loudspeaker from Electro-Voice. EV’s most versatile pointsource lines for short to medium-throw applications launched in 2008 is now updated to perform even better in all point-source projects.
From mid-sized stadiums, performing arts spaces, and theaters, to high-SPL music venues or houses of worship, EVF G2 has been fully redesigned with modern components and processing to elevate the quality of an installation at a better value than ever before.
While EVF G2 inherit external dimensions from its 1stgeneration equivalent, every other aspect has been redesigned from scratch for better performance. Completely new in-house EV transducers, low-loss crossovers, EV’s highest performance HF horns ever, flat-phase FIR presets with <10ms of system latency, new ergonomic wiring input panels, and so on.
Every detail of each model has been carefully considered to deliver not just a light refresh but a reimagining of how much performance is possible from a two-way loudspeaker at this price class.
EVF-12 G2 is a high-performance full-range loudspeaker, available in five coverage patterns: 60° x 40°, 60° x 60°, 90° x 50°, 90° x 90° and 120° x 60°.
Provided in black and white colors, EVF-12 G2 also offers 10 fully-weatherized loudspeakers certified to IP55. This water and dust protection is valid with the moisture resistant cover installed and a minimum 5° down tilt. Fully weatherized models are also able to handle full exposure to the elements, including high salt marine environments.
The new single-step polyurea paint provides a consistent, higher performance exterior across multiple product families. The brand new white paint offers reliable UV performance and bright RAL9003 color.
Suspension options include U-brackets, wall brackets, eyebolts and rigging kits. Four Omni-mount points on the rear of the enclosure also provide on-cabinet mounting option for compatible accessories.
