EV Ceiling speaker 3-in, weatherized IP45, 70/100V, white, pair
EVID-EC3.1
CEILING SPEAKER 3" 70/100V WHITE
• Bezel-less design with easy-attach grille
• Front baffle wattage tap adjustment
• Includes tile bridge and C-ring for easy installation
• UL 1480A, UL 2043, CSA C22.2 No. 205 andIEC 62368-1 certified
The Electro-Voice EVID-EC3.1 is a complete 3-inch coaxial loudspeaker that offers excellent sound quality and outstanding reliability with first-class aesthetics.

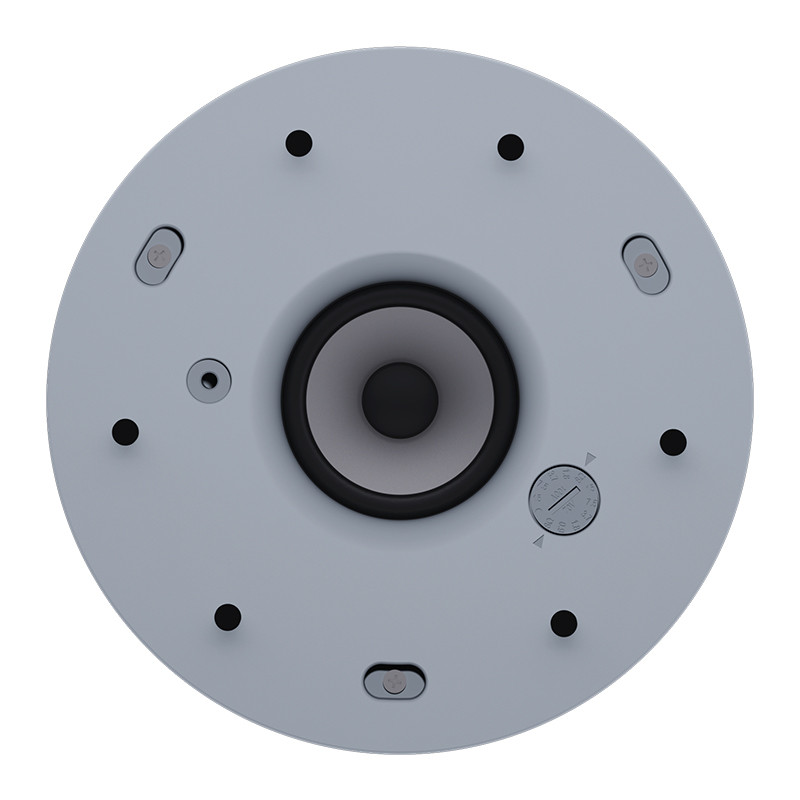

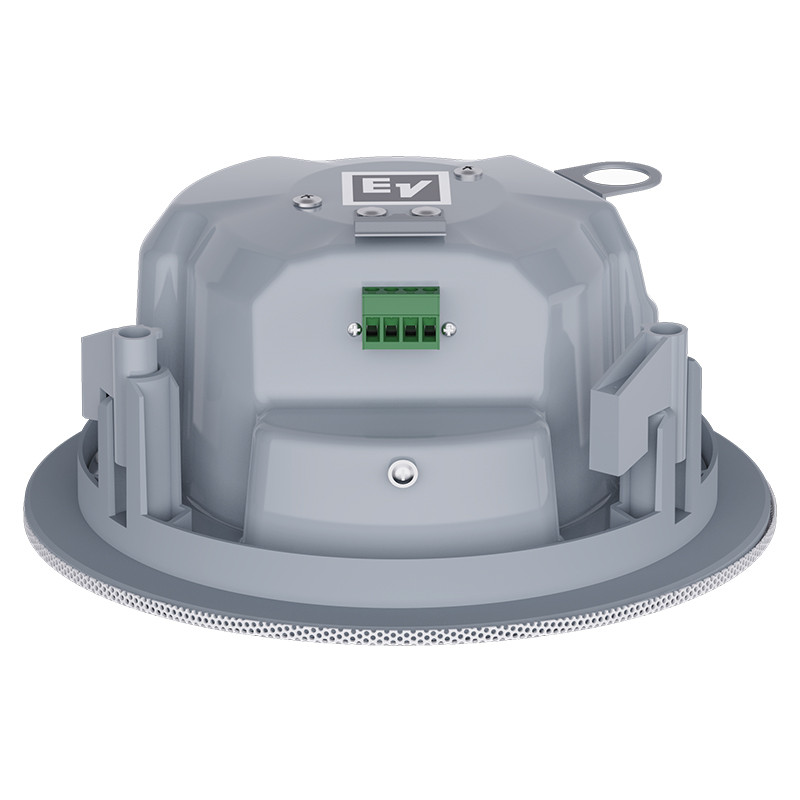

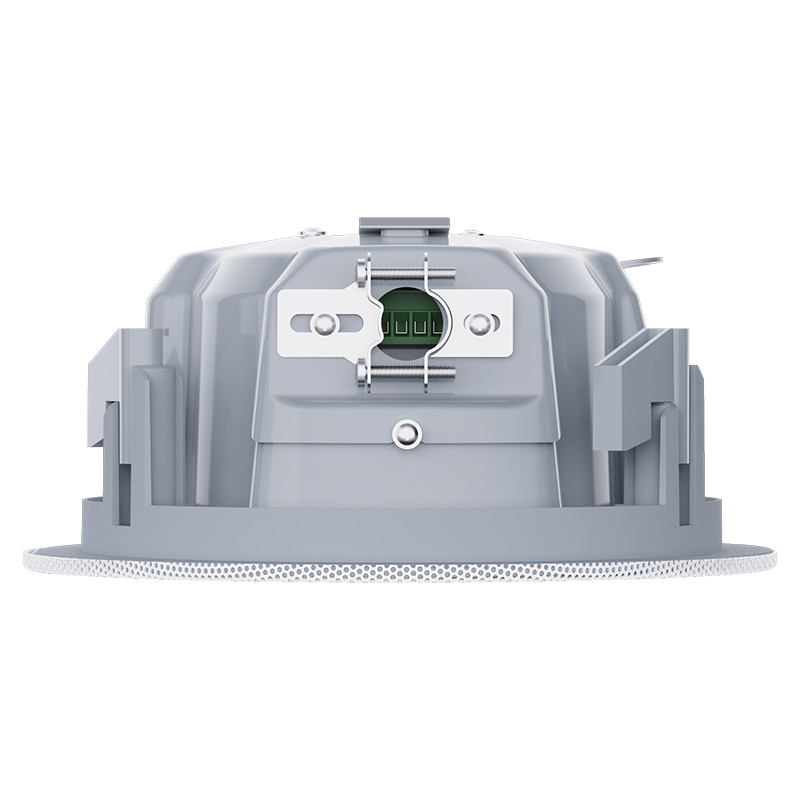

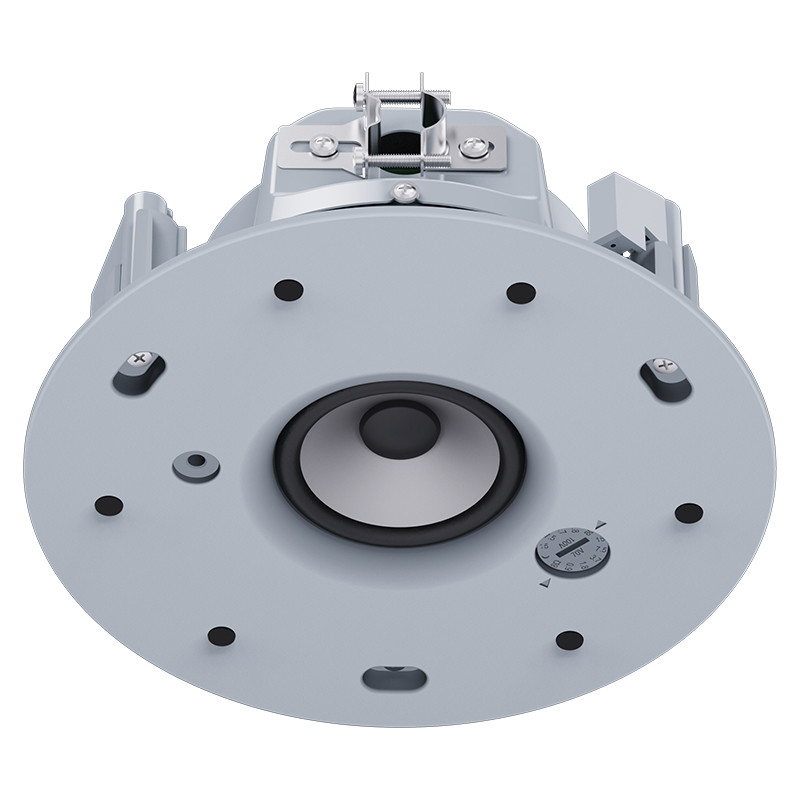

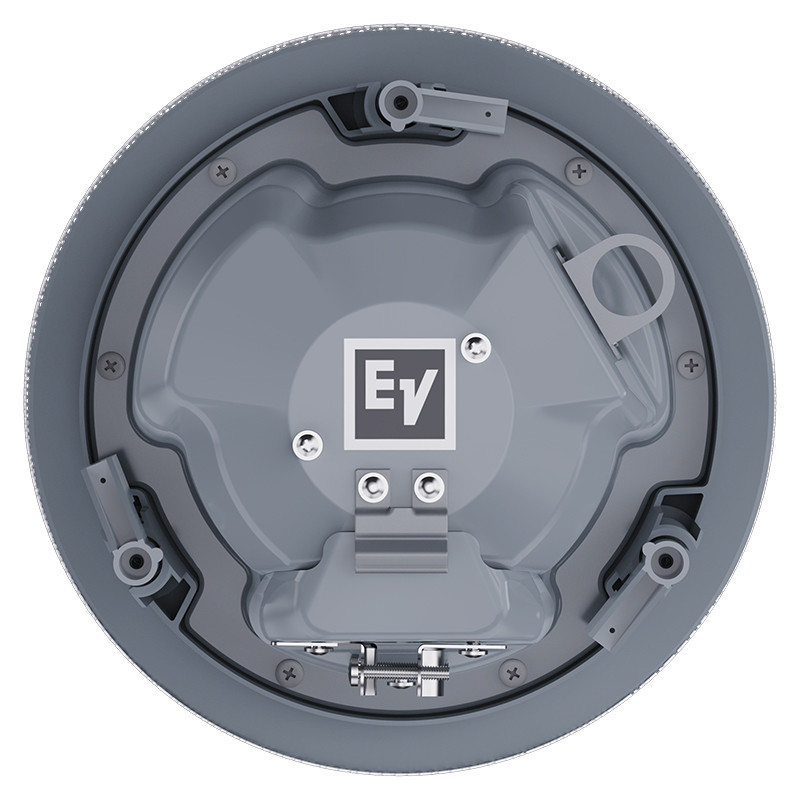

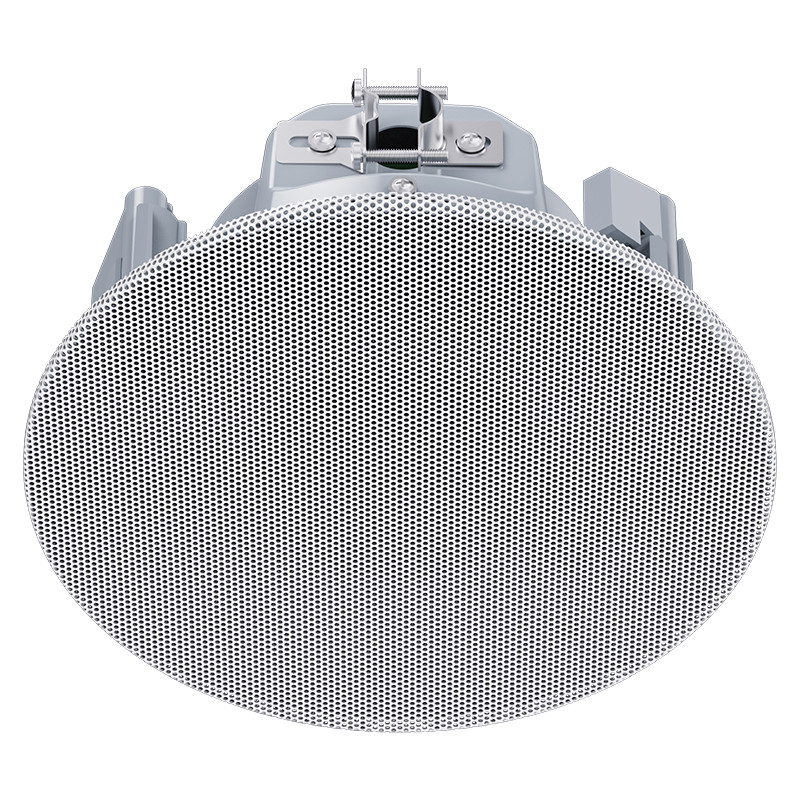

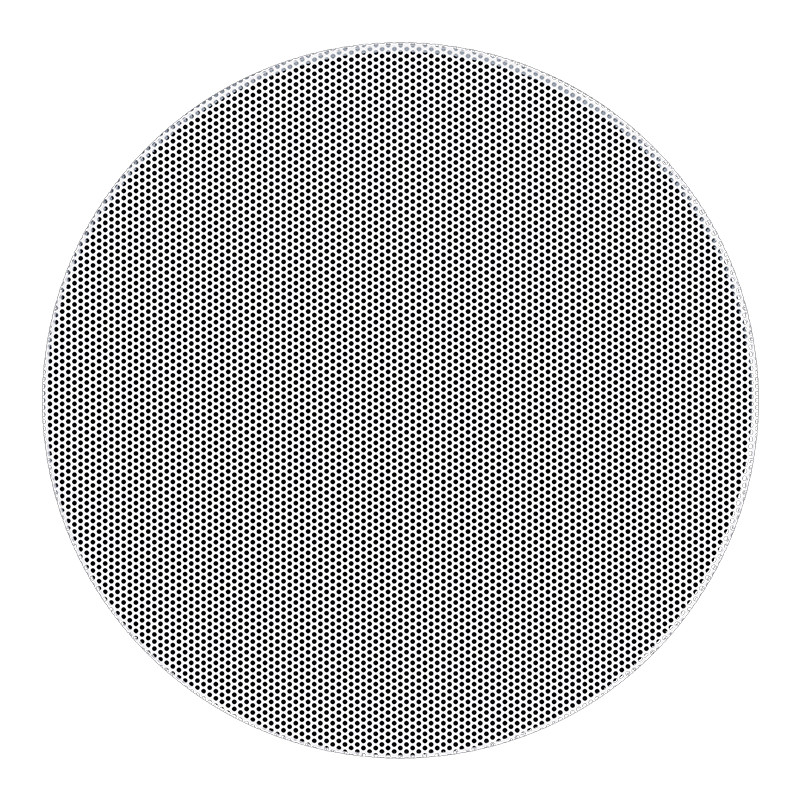

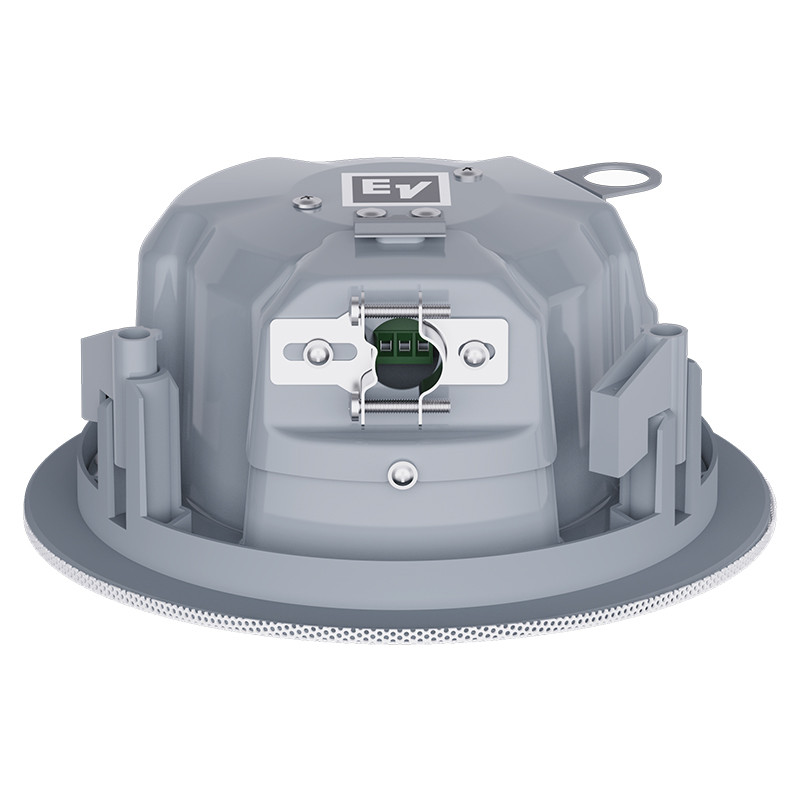

The EVID-EC3.1 utilizes a transformer that offers a selection of 0.9 (70-V only), 1.88, 3.75, 7.5 or 15 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8-ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle is constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from heavy gauge coated steel. The low-profile enclosure makes it easy to mount in very tight spaces. A side terminal cover provides access to a 4-pin terminal block that allows direct connection to the speaker with 12-gauge and 3.3 mm2-wire and provides pass through to additional speakers.
A mounting ring and a tile bridge are included for safe suspension of the EVID-EC3.1 ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles.
The wide range of EVID ceiling speakers has been designed to work together as a complete system in a variety of different ceiling constructions, and to be used in combination with other EVID surface-mount and in-wall speakers.
Specifications:
Frequency range (-10 dB) (Hz): 90 Hz – 19,000 Hz
Maximum SPL (continuous) (dB): 100 dB
Maximum SPL (peak) (dB): 106 dB
Sensitivity (1 W, 1 m): 84 dB SPL 1 W, 1 m
Coverage angle conical (°): 135°
Power handling (continuous) (W): 40 W
Power handling (peak) (W): 160 W
Long term power handling (continuous) (W): 25 W
Long term power handling (peak) (W): 100 W
Nominal impedance (Ω) (Low Z): 8 Ω
Recommended high pass (Hz): 110 Hz
Transformer taps 70 V line (W): 15 W; 7.5 W; 3.75 W; 1.88 W; 0.9 W
Transformer taps 100 V line (W): 15 W; 7.5 W; 3.75 W; 1.88 W
LF transducer size (in): 3 in
Material: Steel
Grille material: Powder coated steel
Connector type: 4-pin Euroblock, Input + Pass through
Wire size (AWG): 12AWG (maximum)
Wire diameter (mm2): 3.3 mm2 (maximum)
Color: White; Customized colors
Color (RAL): RAL 9003 Signal white
Mounting cutout (in): 7.20 in
Mounting cutout (mm): 183 mm
Dimensions (Ø x D) (in): 8.4 in x 3.9 in
Dimensions (Ø x D) (mm): 212 mm x 98.3 mm
Mounting depth (in): 3.7 in
Mounting depth (mm): 93 mm
Ceiling thickness (in): 0.5 in - 1.5 in
Ceiling thickness (mm): 12.5 mm - 38 mm
Weight (lb): 4.6 lb
Weight (kg): 2.1 kg
Shipping weight (lb): 13.2 lb
Shipping weight (kg): 6 kg
IP rating: IP45
Weatherization: Indoor
Operating temperature (°F): 32 °F – 122 °F
Operating temperature (°C): 0 °C – 50 °C
Safety agency ratings: UL 1480A, safe for use in airhandling spaces per UL 2043, CSA C22.2 No. 205 certified, IEC 62368-1
